Oil production downhole equipment tubing bolt

Supplier: Tianjin Soright Technology Development Co., Ltd.
Region: Tianjin, China
Contact: Ms Peggy Lee
Price: $20.00 /set
Min. Order: 1 set

Click here to contact

Product details

NU link thread:	Upper 3-1/2	Packaging Preview:
Mechanical test report:	if	Local service location:	Egypt, Turkey, USA, Germany, Peru, Indonesia, Mexico, Russia, UAE, Kazakhstan
Core Components Warranty:	1 year	Warranty:	1 year
Tool Type:	Downhole tools	Video external inspection:	if
After-sales service provided:	Free spare parts, on-site maintenance and repair services, on-site installation and commissioning training, video technical support, online support	usage:	Anchor the tubing string to the borehole wall
sample:	supply	Marketing Type:	Hot Products of 2019
type:	Nano Anchor	length:	790mm
The scope of work:	4.72-5.03 inches	Unlocking power:	80-120KN
port:	Xingang, Tianjin, China or any other port	Supply capacity:	7000 sets of tubing anchors for PC pumps per month
Showroom location:	not any	model:	NM-512
brand:	SRD	Working pressure:	35MPa
Packaging Details:	wooden box	Thread Type:	European Union, NUE
standard:	API 5CT	Applicable industries:	Energy and Mining
Health status:	new	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Core components:	Tubing Anchor

Oil production downhole equipment oil column tubing anchor

Basic Information

place of origin; place of origin	Tianjin, China (Mainland)
brand	China Petroleum Equipment
model	2-3/8" to 4-1/2"
type	Tubing Anchor
type of machine	oil production
Certification	API 5CT
Material	Alloy steel, stainless steel
Processing type	forging
use	oil production

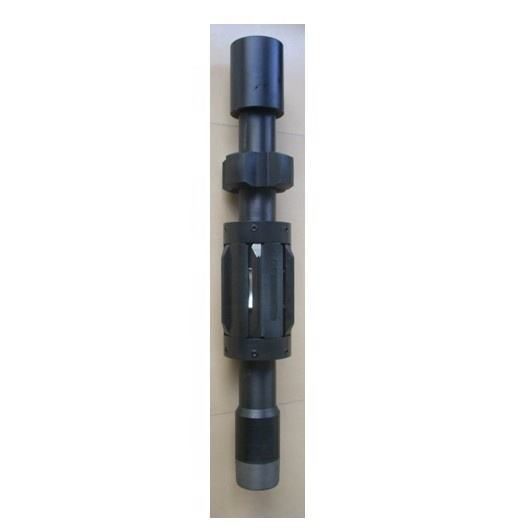

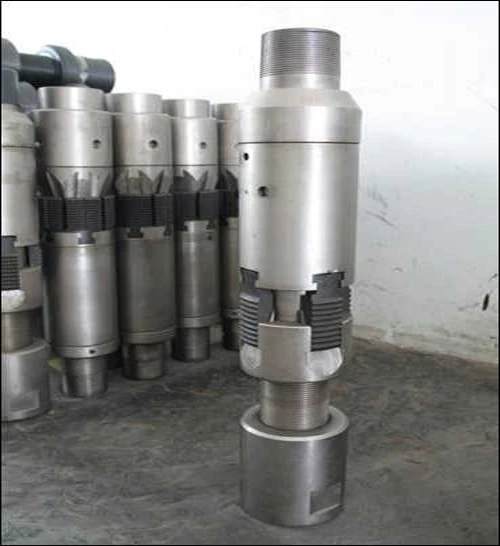

Tubing AnchorA downhole, packer-like device that operates in a string of tubing clamped to the casing wall. Tubing anchors prevent the "breathing" of the tubing, the periodic up and down movement of the lower part of the tubing as the well is pumped by a rod pump.

1. Features: (1) During the operation of the PC pump, the tubing string is effectively anchored on the well wall.

(2) When anchoring is not required, it is easy to release the anchored state.
2. Size: API 5CT 2-3/8” to 4-1/2”
3. Connection thread type: EUE, NUE

Tubing Anchor Specifications

Specification	Maximum outer diameter (mm)	Drift diameter (mm)	Anti-skid outer diameter (mm)	Maximum sliding outside diameter (mm)	Working pressure (Mpa)	Pulling force (KN)	Set pressure (Mpa)	Release force (KN)	Lifting load (KN)	Applicable casing diameter (mm)
Tubing Anchor	114	62	112	132	35	≤60	8~10	90~100	≤400	121.4~124.3

feature:

1. Secures securely in all types of casing, including high quality casing.

2. Two-way sliding anchoring improves the ability to resist upper and lower pressure difference

3. Static water setting, straight pull and release, suitable for all kinds of wells (vertical wells, inclined wells, horizontal wells)

4. The aperture can meet the requirements of different well types.

Tubing Anchor Pack

Our Workflow

1. Company products displayed on Alibaba's website

2. Receive inquiries from potential customers

3. Provide quotation and product technical information to customers

4. Negotiate price, payment terms, delivery terms, etc. with customers.

5. Sign the product purchase contract

6. The customer remits the advance payment

7. Receive advance payment and arrange production

8. Complete the production inspection, charter the ship and book the space

9. The customer pays the payment for the follow-up payment

10. Promptly deliver the product to the carrier and complete customs clearance

11. Send documents such as bill of lading, invoice, packing list, certificate of origin, product testing report, quality certificate to customers.

Company Profile

Tianjin Solite Technology Development Co., Ltd. (hereinafter referred to as Solite Technology) is one of the export windows of China's petroleum machinery. It is a complex of petroleum machinery products and services integrating R&D, machining and technical services.

Solette mainly provides customers with production equipment, tools, spare parts and accessories produced by CNPC (China National Petroleum Corporation), a high-quality petroleum equipment manufacturer. The main products are: downhole sucker rod pump, sucker rod, tubing tap, tubing joint, stuffing box, thread protector, packing, floating shoe, floating hoop, etc.

The company insists on quality first. All products are designed and processed to API specifications. A quality management system has been established to ensure that the entire process is properly controlled.
