hydraulic set tubing anchor catcher tubing anchor

Product details
After-sales Service Provided:Free spare parts;Suitable Casing:5-1/2,,7,9-5/8;
Connection Threads:2-7/8EU;Supply Ability:1000 Piece/Pieces per Month;
Packaging Detail:international standard wooden case or as per client's requirement;Material:4140;
Size:114,152,198;Port:Qingdao/Tianjin;
Brand Name:zx;Showroom Location:None;
Type:tubing anchor;Payment Terms:L/C,D/P,T/T;
Model Number:9-5/8;Warranty:1.5 years;
Local Service Location:None;Working Pressure:6Mpa;
Working Tempreture:180 degrees Celsius;Package Preview:;
Applicable Industries:Energy & Mining;Condition:New;
Length:580-970;

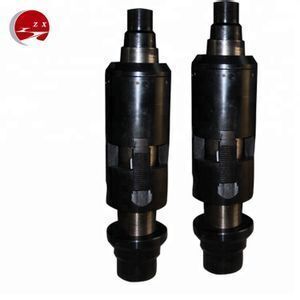

  Hydraulic-set tubing anchor

Product Description

 Hydraulic-set tubing anchor catcher holds the tubing string in tension or compression to prevent movement in rod-pump installations.

The retrievable tubing anchor is set by tubing pressure against a temporary plug run below it. Setting the tubing anchor catcher requires no tubing manipulation.

A straightpull shear releases the catcher for easy retrieval.



Technical Parameter



Model

Length

(mm)

Max OD

(mm)

Min ID (mm)

Pressure(MPa)

Max OD when teeth open

Setting Pressure

(MPa)

Connecting Thread

Casing ID to be used

51/2"

580

115

62

25

128

8-12

2-7/8 TBG

121-124

7"

660

150

76

25

168

8-12

3 1/2 TBG

155-166

9 5/8"

970

208

76

25

245

8-12

3 1/2 TBG

218-240

9 5/8"

970

208

98

25

245

8-12

4 1/2 TBG

218-240





Packaging & Shipping













Our Services









Company Information

Dongying Zhaoxin Industry and Trade Co.,Ltd is an ISO-9001, ISO-14001, OHSAS-18001 certified company and has all the quality systems in place for design, planning,manufacturing and quality monitoring & traceability to ensure that Dongying Zhaoxin Industry and Trade Co.,Ltd products match the highest quality & reliability Standards similar to any International major in this field.

Dongying Zhaoxin Industry and Trade Co.,Ltd with perfect attitude, product and service, is going to make further development together with customers at home and abroad .
