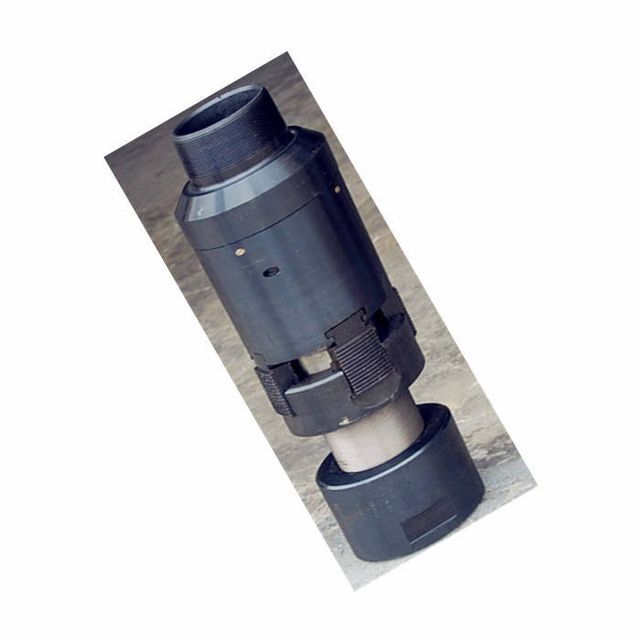

API 5CT Downhole Oil Well Tubing Anchor

Supplier: Tianjin Soright Technology Development Co., Ltd.
Region: Tianjin, China
Contact: Ms Peggy Lee
Price: $199.00 / 10 - 49 sets
$179.00 / 50 - 99 sets
$159.00 / 100 - 499 sets
$129.00 / >=500 sets
Min. Order: 10 sets

Click here to contact

Product details

Showroom location:	not any	Core components:	Tubing Anchor
Applicable industries:	oil equipment	Tool Type:	Downhole tools
length:	790mm	Supply capacity:	5000 sets per month
color:	black, silver grey	application:	for oil wells
Thread Type:	European Union, NUE	Mechanical test report:	if
Health status:	new	Packaging Preview:
Core Components Warranty:	1 year	Unlock Power:	80-120KN
port:	Tianjin Xingang or other Chinese ports	After-sales service provided:	Video technical support, online support
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,T/T, VISA, e-Checking, Paypal	Marketing Type:	normal product
Warranty:	1 year	type:	PC Pump Tubing Anchor
Video external inspection:	if	Working pressure:	35MPa
brand:	SRD	model:	5-1/2" - 9-5/8"
Packaging Details:	Packed in wooden cases or other standard packaging

API 5CT Downhole Oil Well Tubing Anchor

Tubing Anchor Introduction:

A tubing anchor is a downhole, packer-like device that runs in the tubing string and is clamped to the casing wall. Tubing anchors prevent the "breathing" of the tubing, the periodic up and down movement of the lower part of the tubing as the well is pumped by a rod pump.

1. Features:

(1) Effectively anchor the tubing string on the well wall during the operation of the PC pump;

(2) When anchoring is not required, it is easy to release the anchored state.
2. Size: API 5CT 2-3/8” to 4-1/2”
3. Connection thread type: EUE, NUE

Tubing Anchor Specifications

Specification	Maximum outer diameter (mm)	Drift diameter (mm)	Anti-skid outer diameter (mm)	Maximum sliding outside diameter (mm)	Working pressure (Mpa)	Pulling force (KN)	Set pressure (Mpa)	Release force (KN)	Lifting load (KN)	Applicable casing diameter (mm)
Tubing Anchor	114	62	112	132	35	≤60	8~10	90~100	≤400	121.4~124.3

feature:

1. Secures securely in all types of casing, including high quality casing.

2. Two-way sliding anchoring improves the ability to resist upper and lower pressure difference

3. Static water setting, straight pull and release, suitable for all kinds of wells (vertical wells, inclined wells, horizontal wells)

4. The aperture can meet the requirements of different well types.

Packaging of Tubing Anchors

Our company profile

Tianjin Solite Technology Development Co., Ltd. (hereinafter referred to as Solite Technology) is one of the export windows of China's petroleum machinery. It is a complex of petroleum machinery products and services integrating R&D, machining and technical services.

Solette mainly provides customers with production equipment, tools, spare parts and accessories produced by CNPC (China National Petroleum Corporation), a high-quality petroleum equipment manufacturer. The main products are: downhole sucker rod pump, sucker rod, tubing tap, tubing joint, stuffing box, thread protector, packing, floating shoe, floating hoop, etc.

The company insists on quality first. All products are designed and processed to API specifications. A quality management system has been established to ensure that the entire process is properly controlled.
