API 5CT Oilfield Machinery Tubing Anchor

Product details
Core component warranty:1 yearcolor:silver gray, black
application:for oil wellsAfter-sales service provided:Video technical support, online support
Supply capacity:5,000 sets per monthPackage preview:
Unlocking power:80-120KNApplicable industries:Petroleum equipment
Health status:newWork pressure:35 MPa
Showroom location:not anyVideo outbound inspection:if
type:PC pump tube anchorTool type:Downhole tools
Warranty:1 yearlength:790mm
Packaging details:In wooden box or other standard packagingCore components:tubing anchor
Mechanical test report:ifport:Tianjin New Port or other Chinese ports
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, T/T, VISA, e-check, Paypalbrand:SRD
Thread type:European Union, European Unionmodel:5-1/2" - 9-5/8"
Marketing type:normal product

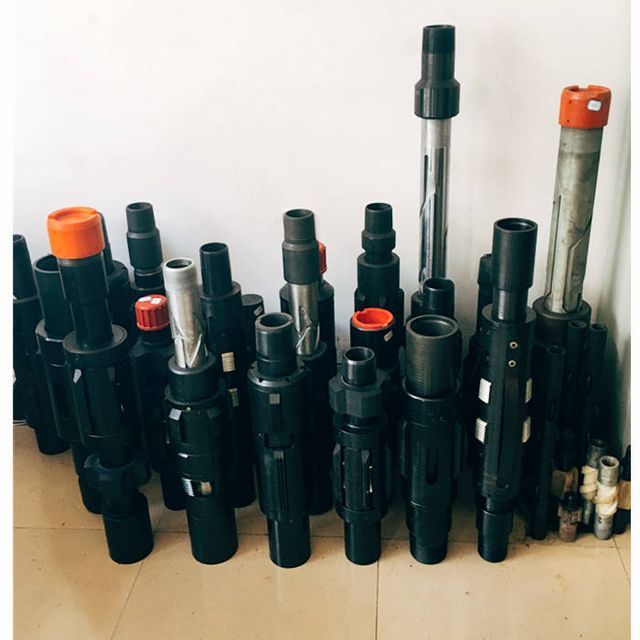

API 5CT Oilfield Machinery Tubing Anchor



Introduction to oil pipe anchor bolts:

A tubing anchor is a packer-like downhole device that runs in a string of tubing that clamps the casing wall. Tubing anchors prevent the tubing from "breathing," the cyclic up-and-down movement of the lower portion of the tubing as the well is pumped by a rod pump.

1. Features:

(1) When the PC pump is operating, the pipe string is effectively anchored to the well wall;

(2) When anchoring is not needed, the anchoring conditions can be easily released.
2. Specifications: API 5CT 2-3/8” to 4-1/2”
3.Connection thread type: EUE, NUE







Pipe Anchor Specifications



Specification

Maximum outer diameter (mm)

Diameter (mm)

No-slip outer diameter (mm)

Slide open maximum outer diameter (mm)

Working pressure(Mpa)

Pulling force (KN)

Set pressure (Mpa)

Release force (KN)

Lifting load (KN)

Applicable casing diameter (mm)

tubing anchor

114

62

112

132

35

≤60

8~10

90~100

≤400

121.4~124.3





feature:

1. Installs safely and securely in all types of casing, including high-quality casing.

2. Two-way slip anchoring improves the ability to resist upper and lower pressure differences.

3. Static pressure setting and straight pull release, suitable for all types of wells (vertical wells, inclined wells, horizontal wells)

4. The hole diameter can meet the requirements of different types of wells.

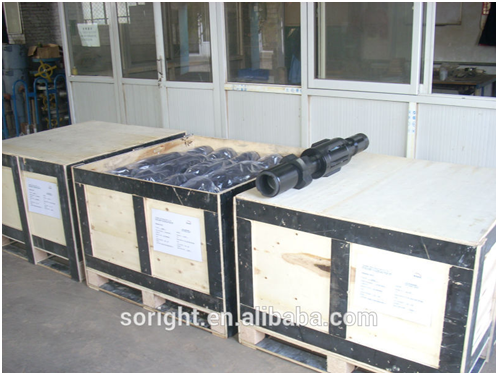

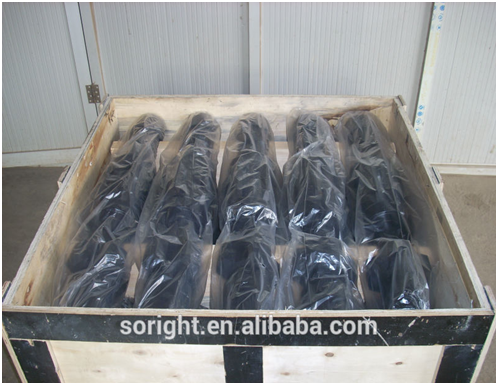

Pipe Anchor Packaging









Our company profile



Tianjin Sorite Technology Development Co., Ltd. (hereinafter referred to as Sorite Technology) is one of China's petroleum machinery export windows. It is a comprehensive enterprise integrating research and development, mechanical processing and technical services into petroleum machinery products and services.



Solite Technology mainly provides customers with production equipment, tools, spare parts and accessories produced by high-quality petroleum equipment manufacturers of China National Petroleum Corporation. Our main products include: sucker rod pumps, sucker rods, tubing jumpers, oil and casing joints, stuffing boxes, thread protectors, packings, floating shoes, floating rings, etc.



The company always insists on quality first. All products are designed and processed to API specifications. A quality management system has been established to ensure that the entire process is properly controlled.
