API Oil Pump mechanical slip tube clamp

Product details
Material:4140Video shipment inspection:if
After-sales service provided:free spare partsApplicable industries:Energy and Mining
Marketing Type:normal productKey words:YouTube catcher
Operating temperature:180 degrees CelsiusHealth status:new
Packaging Details:wooden boxShowroom location:not any
brand:zxMaximum outer diameter:114-198
Mechanical test report:ifsize:5-1/2",6-5/8",7",9-5/8"
Name:Tubing anchorport:Qingdao/Beijing/Shanghai/Tianjin
Core components:Tubing anchorPackage preview:
Connection thread:3-1/2 EUmodel:115
Warranty:1.5 yearspayment terms:wire transfer
type:TAC, tubing anchorSupply capacity:50 pieces per month
Core component warranty:1 yearMinimum number:62-90

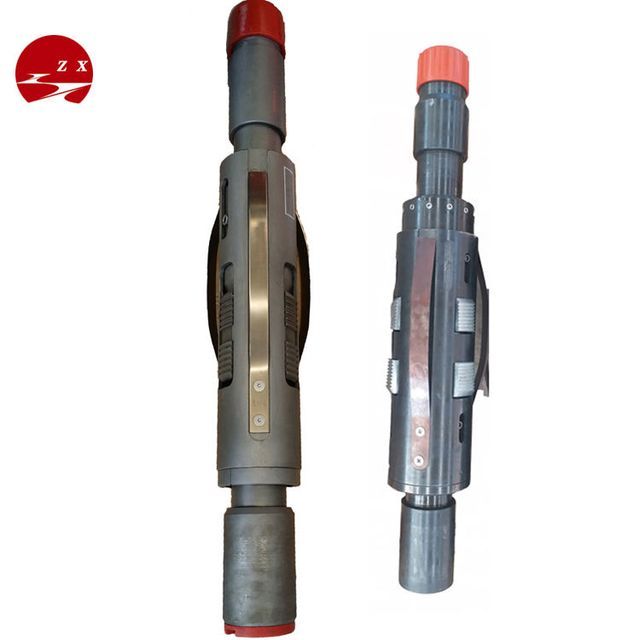

API oil well pump mechanical slip tubing anchor catcher

Product Description

 TonThe ubing anchor is one of the most important tools for efficient pumping operations.

The tubing anchor pulls and maintains tension on the tubing string during pumping, while jamming and preventing any separated tubing from falling into the well. It is used in most rod pumping applications where it is necessary to maintain tension in the tubing.

Mechanical Tubing Anchor is a model of Anchor Catcher Our Tubing Anchor is a retrievable dual handle tubing anchor designed to anchor tubing strings in tension or compression. When installed with proper tubing tension, the anchor prevents the tubing string from moving during rod pumping operations. This results in increased oil production per pump stroke, which in turn extends pump, rod and tubing life and reduces pumping costs. The anchor incorporates an emergency shear release system that is easily adjustable in the field.



work rules

  Tubing anchor lowering

1. Install the anchor in the tubing string above or below the pump. Rotate the pipe to the left to set the anchor catcher

 2. Lower the tube to release tension and turn to the right while working the tube up and down slightly.

Tubing anchor features:

• Rotate left to set, right to release

• Straight pull emergency shear release

• Improved pump efficiency

• Improve operating costs by reducing maintenance and downtime due to tubing or sucker rod wear



our service



Casing outer diameter (inch)

Predetermined area

Tool outer diameter (inch)

Tool inner diameter (inch)

Connection thread

Minimum inner diameter (mm)

inner diameter(mm)

4 1/2

3.920

4.090

3.75

1.93

2-3/8" EU

5

4.276

4.494

4.00

5 1/2

4.670

5.044

4.50

2.00

5 1/2

4.670

5.044

4.50

2.37

2-7/8" EU

6 5/8

5.938

6.135

5.50

6 5/8
7

5.920

6.456

5.50

7
7 5/8

6.413

7.125

5.50
