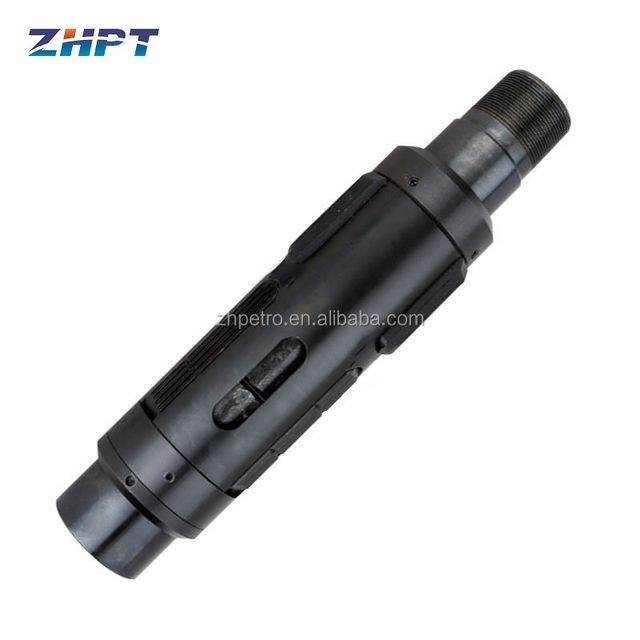

High quality API standard oil well downhole tools screw pump torque anchor

Product details
Warranty:1.5 yearsShowroom location:not any
After-sales service provided:Online supportMaximum outer diameter:121-230mm
Connection thread:3-1/2EUport:major ports in china
standard:application programming interfaceHealth status:new
type:Downhole tool tubing anchorApplicable industries:Energy and Mining
Work pressure:180 degrees CelsiusApplicable shell:6-5/8,7,9-5/8
Packaging details:Standard export packagingMaterial:Steel, 4140
length:690payment terms:Letter of credit, wire transfer
capacity:3200NLocal service locations:not any
Supply capacity:1000 pieces per month
Product Description

1. This is an anti-trip tool with excellent safety performance for screw pumps. When the screw pump is working, the torque anchor can prevent the oil pipe string from retreating or even falling into the hole. It makes extraction easier, reduces operating costs, and prevents pipe string bending.

Housing size (inches)

Torque anchor outer diameter (mm)

Torque anchor inner diameter (mm)

Connection (inches)

5-1/2”

112.8

62.0

2-7/8EU

6-5/8”

138.4

62.0

2-7/8EU

7"

148.1

62.0

2-7/8 EU

9-5/8”

215.9

76.0

3-1/2EU





Packaging and shipping

Standard export packaging or according to customer requirements.

Delivery according to customer requirements.



our service

1. We have a 24-hour response system to provide convenient, fast and effective pre-sales, sales and after-sales services.



2. Our commitment: We will provide timely and efficient after-sales service for any equipment sold by Zhuohong anywhere in the world. If equipment parts are damaged due to manufacturing defects or quality problems during the warranty period, Zhuohong will bear the direct costs of the damaged parts.



3. Warranty period: 18 months from the date the unit leaves the factory or 12 months from the date it is put into use (whichever expires earliest).
