After-sales service provided: | Video technical support, online support | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, T/T, VISA, e-Checking, Paypal |
Unlocking force: | 80-120KN | Core component warranty: | 1 year |
Showroom location: | not any | port: | Tianjin Xingang or other Chinese ports |
Warranty: | 1 year | Local service location: | not any |
Core components: | Tubing anchor | Mechanical test report: | if |
Work pressure: | 35MPa | Marketing Type: | normal product |
thread type: | EUE, NUE | Tool type: | Downhole Tools |
type: | API 5CT oil well tubing anchor | length: | 790mm |
Packaging Details: | Wooden case or other standard packing | model: | 5-1/2" - 9-5/8" |
Package preview: | Supply capacity: | 5000 pieces per month | |
Applicable industries: | Petroleum equipment | brand: | SRD |
Video shipment inspection: | if | Health status: | new |

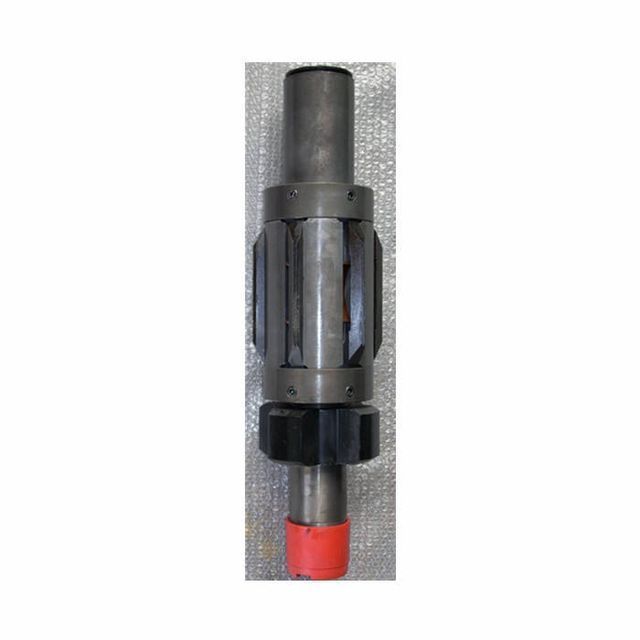

API 5CT oil well tubing anchor

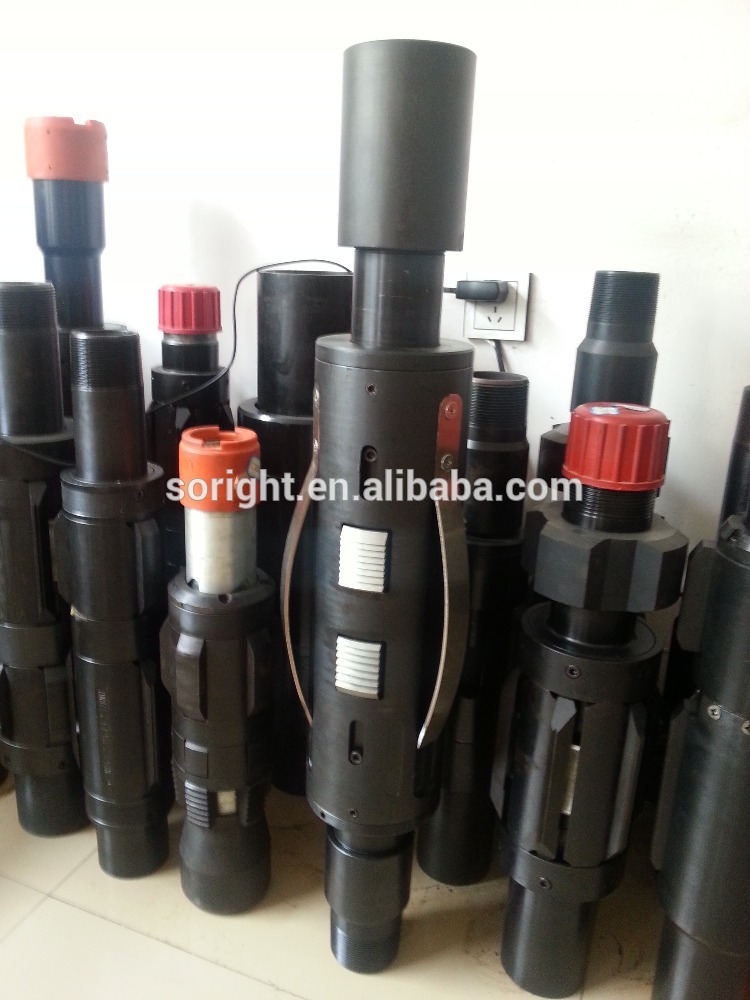

Tubing anchor introduction:
A tubing anchor is a downhole packer-like device that runs in a string of tubing and grips the casing wall. The tubing anchor prevents the tubing from "breathing," the cyclic movement of the lower portion of the tubing up and down as the well is pumped by the rod pump.
1. Features:
(1) When the PC pump is in operation, the tubing string is effectively anchored on the well wall;
(2) When anchoring is not needed, it is easy to release the anchored state.
2. Size: API 5CT 2-3/8” to 4-1/2”
3. Connecting thread type: EUE, NUE
Tubing Anchor Specifications:
Specification |
Maximum outer diameter (mm) |
Diameter (mm) |
No sliding outer diameter (mm) |
Slide open maximum outer diameter(mm) |
Working pressure (Mpa) |
Pull force (KN) |
Set pressure (Mpa) |
Release force(KN) |
Lifting load(KN) |
Applicable casing diameter (mm) |
Tubing anchor |
114 |
62 |
112 |
132 |
35 |
≤60 |
8~10 |
90~100 |
≤400 |
121.4~124.3 |
feature:
1. Fits securely and securely in all types of casing, including premium grades.
2. Two-way sliding anchoring, which improves the ability to resist the pressure difference between the upper and lower sides
3. Static pressure setting, straight-pull release, suitable for various wells (vertical wells, inclined wells, horizontal wells)
4. The aperture can meet the requirements of different types of wells.
Packaging of pipe anchors:
Our company profile:
Tianjin Soruit Technology Development Co., Ltd. (hereinafter referred to as Soruit Technology) is one of China's petroleum machinery export windows. It is a petroleum machinery product and service integrating research and development, mechanical processing and technical services.
Suorite Technology mainly provides customers with production equipment, tools, spare parts and accessories produced by CNPC (China National Petroleum Corporation) high-quality petroleum equipment manufacturers. The main products are: underground sucker rod pumps, sucker rods, tubing butt fittings, tubing couplings, stuffing boxes, thread protectors, packing, floating boots, floating hoops, etc.
The company insists on quality first. All products are designed and processed in compliance with API specifications. A quality management system has been established to ensure that the entire process is properly controlled.
