High quality Torque Anchor for PCP pump for oilfield use in downhole

Product details
Condition:New;Type:Torque Anchor;
Applicable Industries:Energy & Mining;Payment Terms:L/C,D/P,T/T,Western Union;
Local Service Location:none;Model Number:5-1/2inch;
Supply Ability:2000 Piece/Pieces per Month;Brand Name:zx;
Port:Qingdao;Min ID:62mm;
Usage:downhole oil tools;Warranty:1.5 years,One Year;
Place of origin:Donygying;Material:carbon steel;
Suitable Casing:5-1/2;Application:Oil Pumping;
Packaging Detail:wooden cases;Package Preview:;
Product name:Torque Anchor;Showroom Location:none;
After Warranty Service:Video technical support;

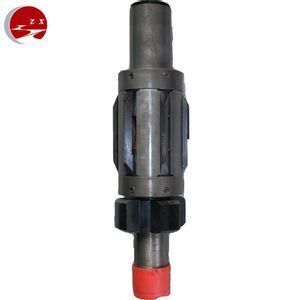

 High quality Torque Anchor for PCP pump for oilfield use in downhole

Product Description

Torque Anchor is our newest torque anchor offering a reliable anchoring design at a reduced cost compared to other torque anchors.

The Simple Set Torque Anchor is available for all casing sizes with a variety of

connection sizes and types.

1.Install the anchor in the tubing string, above or below the pump. Rotate the tubing to the left to set the anchor catcher

2. With tubing in slight compression, rotate the tubing to the right to retract the cones from the slips and allow the slips to move back into the housing.





Technical Parameter





Code

Case setup dia.[mm]

Connection[inch]

5-1/2

119…139

2 – 7/8 EU

7

152…172

2 – 7/8 EU or 3 – 1/2 EU

9-5/8 I

215…235

3 – 1/2 EU

9-5/8 II

220…240

3 – 1/2 EU



Packaging & Shipping





Company Information

Dongying Zhaoxin Industry and Trade Co.,Ltd is an ISO-9001, ISO-14001, OHSAS-18001 certified company and has all the quality systems in place for design, planning,manufacturing and quality monitoring & traceability to ensure that Dongying Zhaoxin Industry and Trade Co.,Ltd products match the highest quality & reliability Standards similar to any International major in this field.

Dongying Zhaoxin Industry and Trade Co.,Ltd with perfect attitude, product and service, is going to make further development together with customers at home and abroad .
