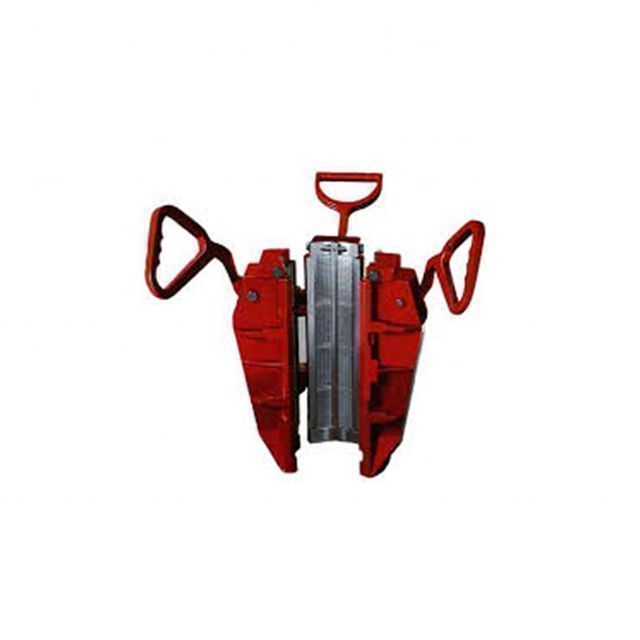

API 7K B-type rotary drill pipe slips high-quality rotary hand slips manual B-type drill pipe slips

Product details
Certification:API 7Kpayment terms:L/C, Western Union, T/T
product name:B drill pipe rotary slipsslider size:4 1/2''-5''
Supply capacity:30 sets per monthMarketing Type:Hot Products of 2021
Processing type:to throwShowroom location:Turkey, USA, Vietnam, Philippines, Saudi Arabia, Indonesia, Pakistan, India, Russia, Kenya, Argentina, Chile, UAE, Kazakhstan, Ukraine, Nigeria, Uzbekistan
Well depth:8000-28500Core components:slippery body
After warranty service:Video technical support, online supportport:Shanghai port or other
Video shipment inspection:ifPackage preview:
Local service location:Turkey, USA, Vietnam, Philippines, Saudi Arabia, Indonesia, Pakistan, India, Russia, Malaysia, Australia, Kenya, Chile, UAE, Kazakhstan, Ukraine, Nigeria, UzbekistanApplicable industries:Energy and Mining, Energy and Mining, Petroleum Machinery, Oil Extraction
usage:Moving toolsmodel:Second
place of origin; place of origin:Jiangsu Province, China, Jiangsu Province, ChinaPackaging Details:wooden box
Warranty:1 yearCore component warranty:1 year
Health status:new, newMechanical test report:provide, provide
brand:strongtype:Drill pipe slips
API 7K B-type rotary drill pipe slips high-quality rotary hand slips manual B-type drill pipe slips
Product Description



There are three types of B-type drill pipe slips: B short type, B long type and X long type. Unique torque transfer design transfers all torque directly to the slips, preventing wear and extending slip life. Products are designed and manufactured in accordance with API Spec 7K Drilling and Workover Equipment Specifications.
Specification
Model
slip size
4 1/2
5 1/2
Well depth
B short
DP outer diameter
exist
2 3/8,2 7/8,3 1/2,4,4 1/2
----
8000
mm
60.3, 73, 88.9, 101.6, 114.3
----
B dragon
DP outer diameter
exist
2 3/8,2 7/8,3 1/2,4,4 1/2
4,4 1/2,5,5 1/2
18000
mm
60.3, 73, 88.9, 101.6, 114.3
101.6, 114.3, 127, 139.7
Model
slip size
4 1/2
5
Well depth (feet)

X length

DP outer diameter
exist
3 1/2,4,4 1/2
4, 4 1/2,5

28500
mm
88.9, 101.6, 114.3
101.6, 114.3, 127
