API 7K Style CMS Sleeve Swivel Slip 4-1/2" for OCTG

Supplier: Dongying Lake Petroleum Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Bing Xin
Price: $675.00 / 1 - 4 sets
$635.56 / 5 - 9 sets
$621.94 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

After Warranty Service:	Video technical support	application:	for casing
standard:	API 7K	Applicable industries:	Energy and Mining
price:	cheap	Video external inspection:	if
Showroom location:	not any	size:	4-1/2" ~20"
Marketing Type:	normal product	Single package size:	44X44X63 cm
model:	Content Management System	Health status:	new, new

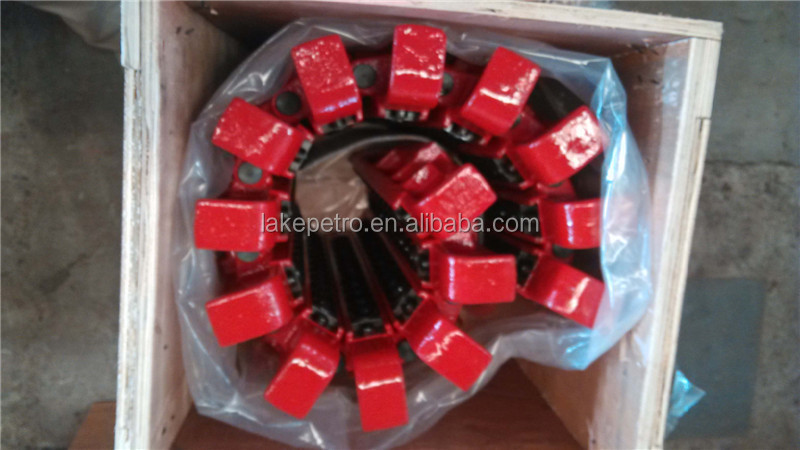

Sales unit:	single product	Packaging Details:	API 7K Type CMS Casing Rotary Slips 4-1/2" OCTG Standard Export Packaging
type:	CMS, Security Sheet	place of origin; place of origin:	Shandong China
product name:	API 7K Style CMS Sleeve Swivel Slip 4-1/2" for OCTG	Packaging Preview:
Gross weight per piece:	65.000 kg	brand:	Li Jin
Mechanical test report:	if	Core Components Warranty:	1 year
Warranty:	1 year	Key words:	Casing slips, casing rotating slips
color:	red or required	Core components:	slip

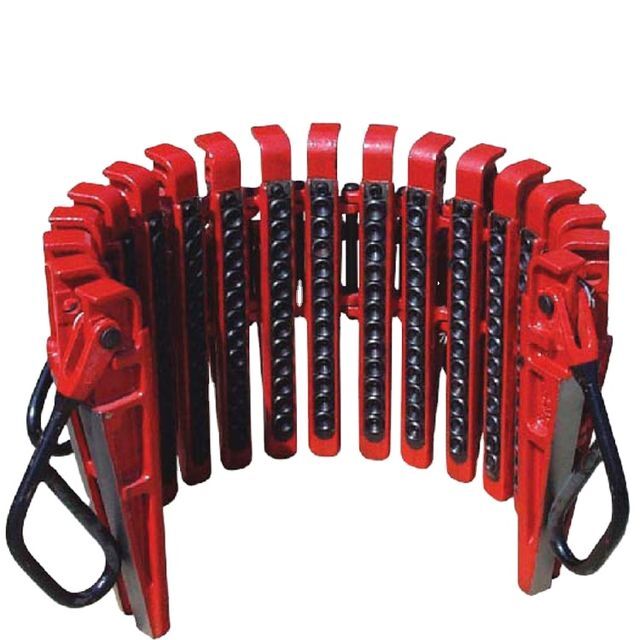

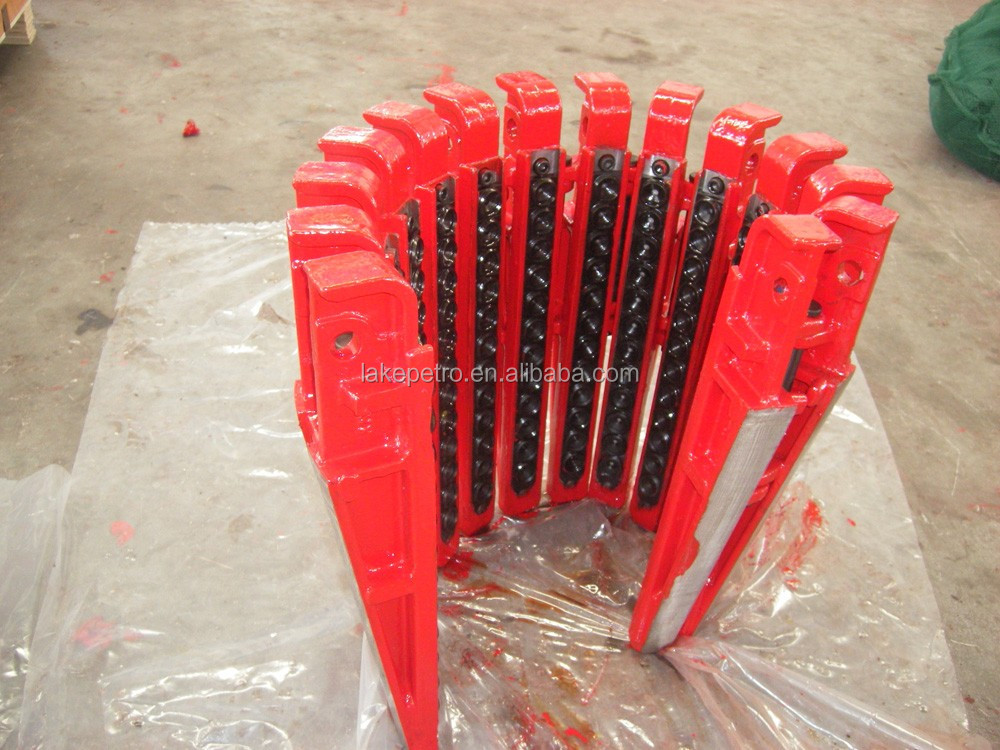

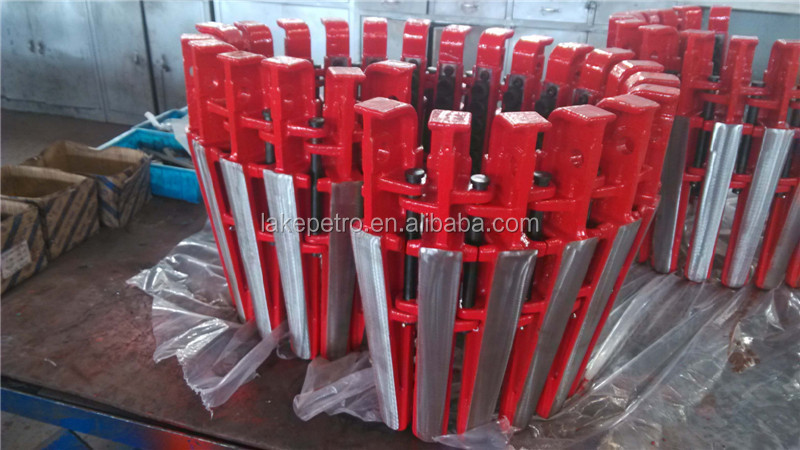

API 7K Style CMS Sleeve Swivel Slip 4-1/2" for OCTG

Product Description

Casing slips are designed and manufactured in accordance with API Spec 7K and SY5049 Drilling Slips. Manufactured with multi-section structure, firm structure, light weight, large clamping range, easy to adapt to the change of casing outer diameter due to wear

technical parameter

Outer diameter of casing		weight		total number of segments	used in insert bowl number
exist	mm	Kilogram	lb	total number of segments	used in insert bowl number
4-1/2 ~ 5	114.3 ~ 127	76	168	9	number 3
5-1/2 ~ 6	139.7 ~ 152.4	71	157	9
6-5/8	168.3	89	196	12
7	177.8	83.5	184	12
7-5/8	193.7	75	166	12
8-5/8	219.1	82	181	13
9-5/8	244.5	87	192	14	number 2
10-3/4	273.1	95	209	15	number 2
11-3/4	298.5	118	260	17	number 1
13-3/8	339.7	117	258	18	number 1
16	406.4	140	308	twenty one	Match with relevant casing
18-5/8	473.1	166.5	367	25
20	508	174	383	26
twenty four	609.6	201	443	30
26	660.4	220	486	33
30	762	248	546	37
