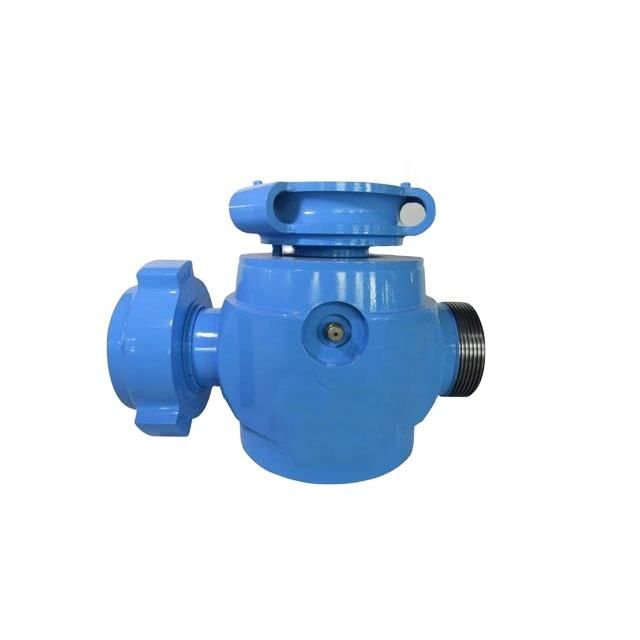

Flow Line Plug Valve API 6A High Pressure Plug Valve

Product details
Origin:Shandong Province, ChinaVideo outbound inspection:if
Marketing Type:New products in 2023brand:lake
color:RequirePackaging Details:Standard export packaging.
Core component warranty:1 yearApplicable industries:Manufacturing plants, energy and mining
port:China's main portsweight:20 kg
Main selling points:competitive priceWarranty:1 year
payment terms:L/C, Western Union, T/Tproduct name:Plug valve
Health status:newCertification:API 6A
Showroom location:not anySupply capacity:100 sets per month
Mechanical test report:ifWork pressure:3000~15000psi
Material category:AA-EECore components:valve
Product Description



The flow path plug valve is an essential part of the high-pressure manifold in cementing and fracturing operations, and it is also the choice of the high-pressure fluid control system. It has the advantages of compact structure, convenient maintenance, small torque and fast operation.



feature:

1. The plug valve is composed of a valve body, a plug cover, and a plug.

2. The plug valve has inlet and outlet water union connections, BOX and pin thread connections.

3. The metal-to-metal seal is adopted between the side section and the cylinder plug, which has high sealing precision and high reliability.

4. Suitable for standard, sour gas and low temperature environments.



Specification

product name

High pressure plug valve/low torque valve/flow path plug valve

material grade

AA-EE

working media

crude oil and natural gas

Processing standard

API 6A

work pressure

3000~15000psi

processing type

forging

performance requirements

PR1-2

Product specification grade

PSL1-3

Nominal aperture

1", 2", 3"

Connection Type

Union, BOX thread, pin thread



product description
