Flare gas recovery for LNG production/Natural gas liquefaction plants

Product details
Annual operating hours:8000 hoursport:Shanghai
energy consumption:0.30~0.35KWh/m3Warranty:1 year
Certification:ISO9000:2000Supply capacity:30 sets per year
capacity:50,000Nm3/day~ 2,000,000Nm3/dayVoltage:6~10KV, 380V
Cooling type:MRC, nitrogen expansion cycleHealth status:new
place of origin; place of origin:China Shanghaipayment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram
Packaging Details:Wooden case, oversized equipment: bulk cargoproduct:liquified natural gas
Operational flexibility:50~105%weight:***Kilogram
After-sales service provided:Video technical support, free spare parts, online support, on-site installation, commissioning and training, on-site maintenance and repair services, engineers can service machinery overseasbrand:Biz

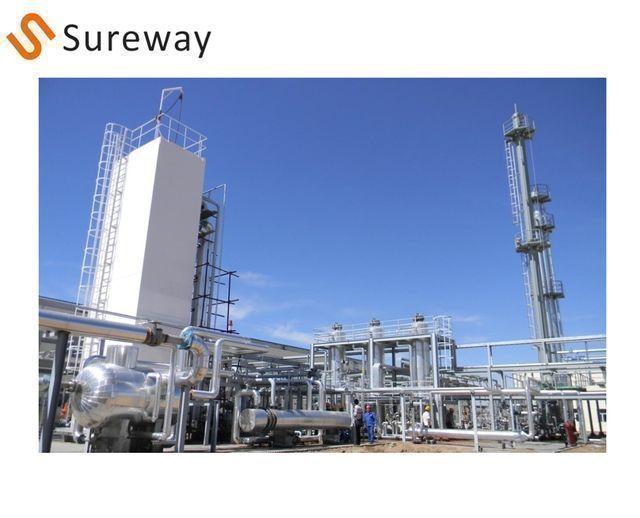

LNG plant

Product Description

The general production process uses natural gas as the raw material (containing about 90% methane), after dehydration, removal of acid gases (H2S, CO2, etc.) and heavy hydrocarbons, it enters the refrigeration unit and cools to about -162 °C and becomes liquid. Its volume is reduced to 1/625 of the gas phase. Liquefied Natural Gas (LNG) is stored in cryogenic LNG storage tanks. And supply to users through the transportation system.

Technical Features

  1. Split skid-mounted design, easy installation and short construction period.

  2. Standardized and modular plant design, compact plant structure, small footprint, saving investment, flexible layout according to terrain, good stability and regional adaptability.

  3. Absorption and removal of acid gases (CO2).

  4. Using molecular sieve and PSA dehydration process.

  5. Mercury is removed by activated carbon soaked in sulfur.

  6. LNG is liquefied using a single-stage MRC refrigeration process.

  7. The device adopts DCS control system.



Major equipment

LNG plant consists of 4~6 units

  • Original natural gas metering and compression device

  • Raw natural gas decarburization and dehydration device

  • Original natural gas mercury removal device

  • Refrigeration compressor unit

  • Natural gas cryogenic liquefaction plant

  • LNG storage tank system

  • loading and unloading unit



Flow chart



our service

We can provide turnkey or EPC services. We can provide design, equipment manufacturing, equipment installation, technical support and after-sales service.



Packaging and Shipping

The equipment is packed in wooden boxes.

Bulk transportation of large equipment.
