API 6A FMC figure weco 1502 1003 602 hammer coupling

Supplier: Dongying Lake Petroleum Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Bing Xin
Price: $70.00 / 1 - 49 sets
$65.00 / 50 - 99 sets
$60.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

brand:	lake	Origin:	Shandong China
Supply capacity:	20000 sets per month	Dimensions (LWH):	8810cm
payment terms:	L/C, Western Union, T/T	product name:	hammer joint
application:	Oilfield Drilling Equipment	Health status:	new
Voltage:	No	Local service location:	not any
Applicable industries:	Manufacturing plants, energy and mining	Certification:	API 6A
Warranty:	1 year	Package preview:
Material:	4130 4135	Marketing Type:	New Products 2020
Main selling points:	long lasting	weight:	10 kg
Mechanical test report:	if	port:	China's main ports
Core components:	bearing	After-sales service provided:	On-site installation, commissioning and training, on-site maintenance and repair services
Packaging Details:	Standard export packing wooden box	Showroom location:	not any
Core component warranty:	1 year	Video shipment inspection:	if

Product Description

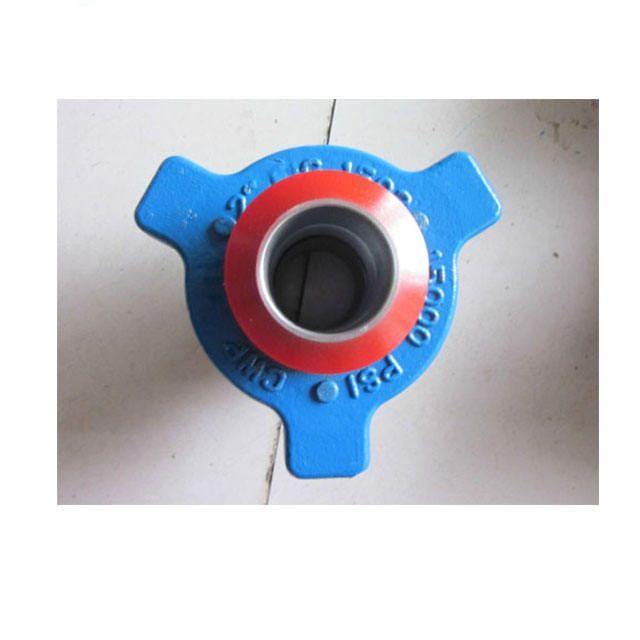

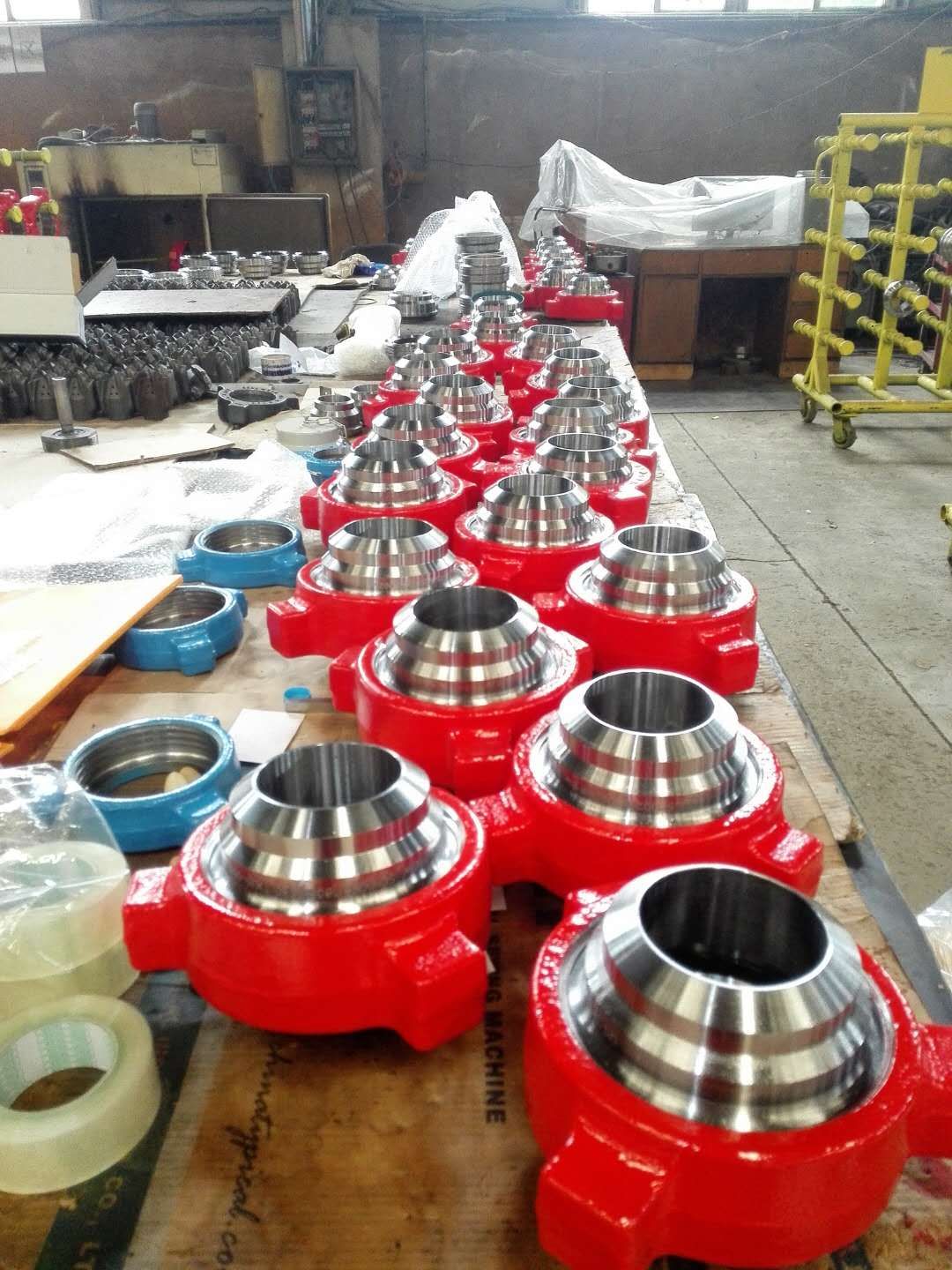

Hammer Union can be used on a wide variety of hoses, cement trucks and hoses in the oilfield. It is an important part for transporting water, oil, fracturing fluid and mixed fluid or sand. These products are forged and cut from high quality carbon steel. They have high mechanical properties and sealing properties. Especially when they operate in severe weather conditions. They can be assembled and fixed easily and conveniently. The main technical parameters include standard working pressure, structure length and diameter. This product adopts pipe thread, oil pipe thread, butt welding and other termination methods.

Wing nut and right ACME ensure quick installation or removal, no special tools required, so installation is quick

type:

We can provide various types of hammer unions according to the imported technology from different countries, including welded, threaded and H2S service joints. 1"-8" and 1000psi-20,000psi CWP fittings are available. For easy identification, the unions of different working pressure levels will be painted in different colors, and have obvious size, connection mode and pressure level marks.

The sealing ring is made of high-quality rubber composite material, which greatly improves the bearing capacity and sealing performance, and protects the joint from corrosion. Different pressures and applications have different sealing methods.

Hammer union type: Figure 100, Figure 200, Figure 206, Figure 300, Figure 400, Figure 600, Figure 602, Figure 1002, Figure 1003, Figure 1502 and Figure 2002, Figure 2202

Product parameters

describe	FIG100-1502 Carbon steel threaded hammer joint with fittings for petroleum industry
size	Fig100 to 2202, 2"-6"

application	oilfield
standard	API
Material	Carbon steel, 4130, stainless steel
weight range	2-50kg
connect	threaded, welded, flanged
Element	female, male, nuts
QC	Materials, Dimensions, Properties, Internal Defects, Balance Tests
Fixed work stress	1000psi-20000psi

Packaging and Shipping

our service

Lake Petro Company is a professional supplier of various oilfieldsdrilling rigEquipment, including oil drilling and service equipment, oil production equipment, OCTG, wellhead and downhole tools, and spare parts with API certification.

Advanced Equipment and Technology

Long-term cooperative relationship with more than 100 well-known large domestic manufacturers

High quality products and best service to meet customers' strict requirements

"People-oriented, customer first, reputation first" business philosophy

Successfully exported to Europe, America, Middle East, South Africa and Southeast Asia.
