Factory price sedimentation tank NZS-3 slime thickener for sale

Supplier: Henan Xingyang Mining Machinery Manufactory
Region: Henan, China
Contact: Mr Andy Zhang
Price: $5300.00 /set
Min. Order: 1 set

Click here to contact

Product details

aspect:	3600x1800	color:	client needs
Thickener weight:	3T	Mining concentrator price:	Negotiable
Warranty:	12 months	Mechanical test report:	if
Packaging Details:	standard container. Bare metal, motors and small parts are packed in wooden boxes.	application:	mining
type:	Mine concentrator	Core component warranty:	1 year
Video outbound inspection:	if	Origin:	Henan, China
Applicable industries:	Mechanical repair shops, energy and mining	Supply capacity:	60 sets per month
Production capacity:	5-22 tons/day	Install:	Technical support
product:	Mine concentrator	Core components:	Bearings, Motors
payment terms:	L/C, T/T	Showroom location:	United States, South Korea, South Africa
brand:	Xu Kejie,	Deposition area:	10.2 cubic meters
spare parts:	lifetime time	Health status:	new
Weight (kg):	100	market:	Africa, Asia, Europe
Package preview:		port:	Qingdao, Tianjin, Shanghai, etc.
structure:	Simple and reasonable	Marketing Type:	Hot Products of 2019
Dimensions (LWH):	3600*1800	Motor type:	AC motor

Sincerely invite you to visit our factory and inspect the machines.

Product Description

NZS thickener is a new type of central transmission, automatic lifting rake type high-efficiency thickener developed by our company on the basis of absorbing foreign technology. It is widely used in coal, metal mineral processing water, metallurgy, chemical industry, tailings treatment, environmental protection, etc.

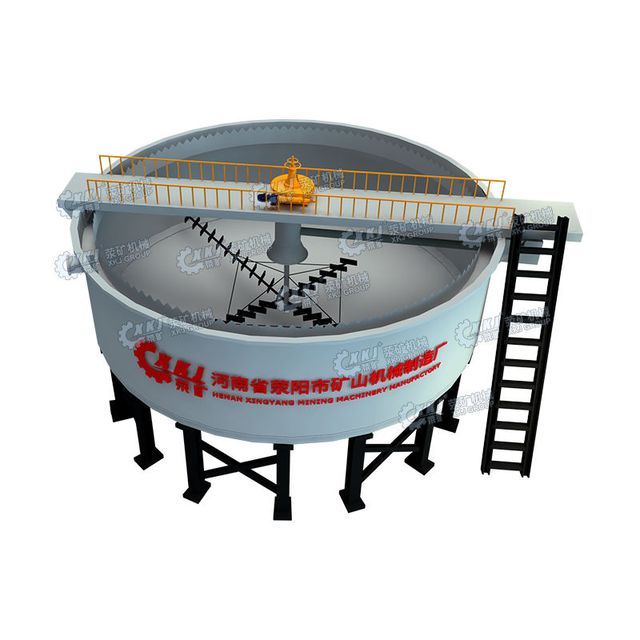

NZS-3 concentrator

The high-efficiency thickener produced by our company is suitable for mineral processing plants to remove water in concentrates and tailings, and can concentrate ore pulp from 20-30% to about 40-70%. This high-efficiency concentrator is widely used in metallurgy, chemical industry, coal, non-metallic ore dressing, environmental protection and other industries.

Features

(1) Add flocculants to increase the particle size of settled solid particles and accelerate the settling process.

(2) Install a slant plate to shorten the falling distance of ore particles and increase the falling area.

(3) Play the role of flocculation, filtration, concentration, and increase the processing capacity.

(4) The high-efficiency concentrator is equipped with a comprehensive automatic control device.

structure

Packaging and Shipping

NZS-24m concentrator exported to Mexico for copper ore processing

NZS-24m concentrator exported to Armenia for copper ore processing

work rules

The high-efficiency concentrator is mainly composed of a circular concentrator pool and a rake scraper. The solid particles suspended in the slurry in the thickening tank fall under the action of gravity, and the upper part is clear water, so that the solid particles are separated from the liquid. The ore pulp deposited at the bottom of the thickening tank is continuously scraped by the rake scraper to the discharge port at the center of the bottom of the tank, and the clean water overflows along the upper edge of the thickening tank.

Technical Parameters

Specification		Concentration pool (m)		Deposit square (m²)	harrow part			engine		Processing capacity (t/d)	Total weight (t)
Model	Specification	the inside diameter of	depth	pond degree	method	Height (m)	Rotation time(min/r)	drive	lifting	Processing capacity (t/d)	Total weight (t)
NZS-1	Φ1.8m	1.8	1.8	2.54	manual	0.16	2	Y90L-6 1.1KW	----	5.6	1.8
NZS-3	Φ3.6m	3.6	1.8	10.2	manual	0.35	2.5	Y90L-6 1.1KW	----	22.4	4.1
NZS-6	Φ6m	6	3	28.3	manual	0.2	3.7	Y90S-4 1.1KW	----	62	10.2
NZSF-6	Φ6m	6	3	28.3	manual	----	3.7	Y90S-4 1.1KW	----	62	4.8
NZ-9	Φ9m	9	3	63.6	car	0.25	4.34	Y132S-6 3KW	XWD0.8-3 0.8KW	140	8.1
NZS-9	Φ9m	9	3	63.6	manual	0.25	4.34	Y132S-6 3KW	----	140	7.1
NZS-12	Φ12m	12	3.5	113	manual	0.25	5.28	Y132S-6 3KW	----	250	10.5
NZ-15	Φ15m	15	4.4	176	car	0.4	10.4	JTC752A-44 5.2KW	Y112M-6 2.2KW	350	24.7
NZ-20	Φ20m	20	4.4	314	car	0.4	10.4	JTC752A-44 5.2KW	Y112M-6 2.2KW	960	27.5
NZ-30	Φ30m	30	7.165	707	----	0.61	13.7	Y100L1-4 2.2×2KW	YCJ132-S 1.5KW	----	34.8
NZS-45	Φ45m	45	4.636	1590	manual	----	20	JTC672A-44 5.2KW	YCJ160-S 2.2KW	515	51.8
NT-15	Φ15m	15	3.5	177	----	----	8.4	Y132M2-6 5.5KW	----	390	12
NQ-18	Φ18m	18	3.5	255	----	----	10	Y132M2-6 5.5KW	----	Chapter 560	11
NQ-24	Φ24m	twenty four	3.4	Chapter 452	----	----	12.7	Y160M-6 7.5KW	----	1000	25.3
NG-30	Φ30m	30	3.6	707		----	16	Y160M-6 7.5KW	----	Chapter 1570	29.4
New Jersey-38	Φ38m	38	4.9	1134	----	----	10-25 days	JZT252-4 11KW	Y160M-6 7.5KW	1600	60.2
NT-45	Φ45m	45	5.05	1590	car	----	19.3	Y160L-6 11KW	----	2400	63.6
NTJ-53	Φ53m	53	5.07	2202	----	----	23.18	Y180L-6 15 kW	----	6250	84.8
NT-100	Φ100m	100	5.65	7846	----	----	43	Y180L-6 15KW	----	3030	204.6
