New Chinese tow truck wrecker recovery truck for sale

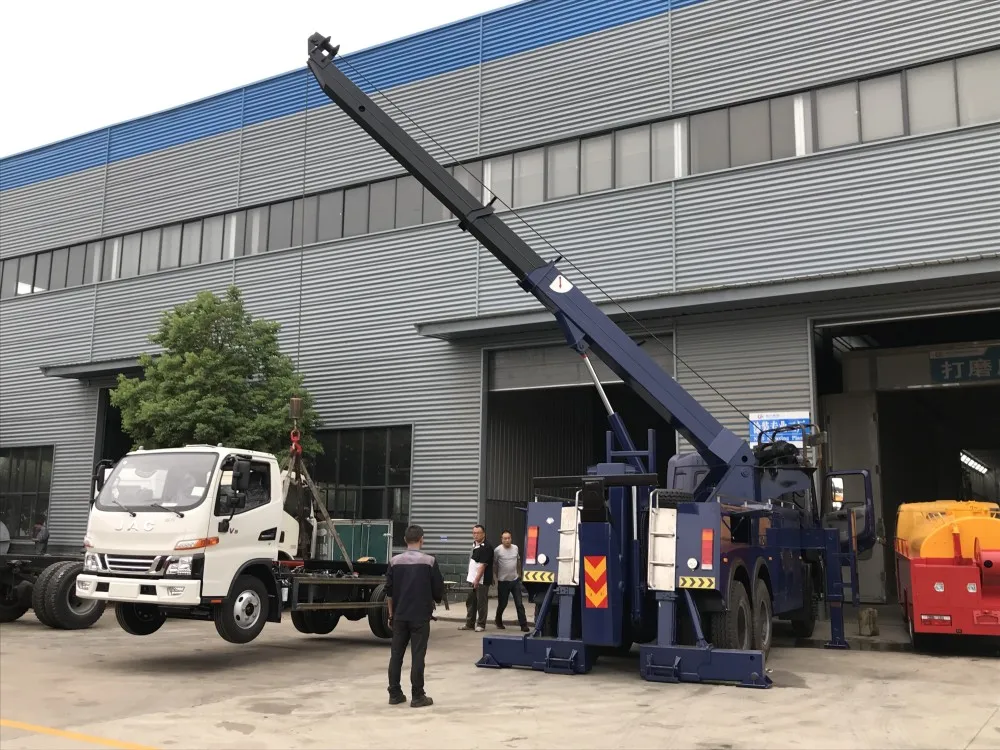

SPECIFICATION FOR BOOM

Max Lifting Capacity(kg)

20000

Max. lifting height (mm)

 6060

Max. tilting angle of boom (°)

 30

Rating pulling force of winch(Ton)

20

Quantity of winch (unit)

2

SPECIFICATION FOR UNDERLIFT

Max. lifting mass (kg)

20000

Rating lifting mass (kg)

7500

Rating lifting mass fully extended(kg)

4600

Max effective length of underlift(mm)

3775

Extension stroke(mm)

2090

SPECIFICATION FOR CHASSIS

Dimension(Lx W xH)(unloaded)(mm)

10370×2496×3250

Approaching angle/Departure angle(°)

16/18

Overhang(front/rear) (mm)

1500/1670

Wheel base (mm)

5800+1400

Max speed(km/h)

102

Curb weight(kg)

19170

Engine(Steyr technology, made in China)

Model

WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection

Fuel type

Diesel

Power, max(kw/rpm)

371HP

Emission

EUROII

Fuel tanker capacity(L)

400L aluminum oil tank

Transmission

Model

HW19710, 10 speeds forward and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Steering system

Model

ZF8118

Front axle

STR

Rear axle

ST16

Tire

12.00R20 (Radial Tyre)

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V
