2019 newest 326kw small mobile asphalt mixing plant XAP80

Supplier: Evangel Industrial (shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Jesscia Hu
Price: $102000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Fuel type:	Diesel oil and heavy oil;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Construction works ;
Rated production:	80t/h;	Weight:	1250KG;
Place of Origin:	Jiangsu China;	Bag filtration area:	400m2;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Local Service Location:	philippines,Morocco,algeria,Sri Lanka;
Supply Ability:	100 Set/Sets per Month;	After-sales Service Provided:	Video technical support,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Certification:	ISO, CE;	Port:	shanghai;
Showroom Location:	philippines,Mexico,CHILE,Sri Lanka,BANGLADESH,south africa;	Packaging Detail:	nude package;
UNIQUE SELLING POINT:	Low maintenance cost;	Dimension(LWH):	32000300001500mm;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Voltage:	220V/380V-50Hz;
Condition:	New;	Warranty:	1 YEAR;
Power(W):	316kw;

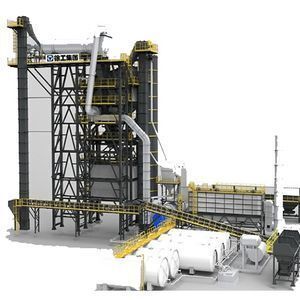

Top quality 80t/h XAP80 mini containerized asphalt mixing plant for sale

Product Description

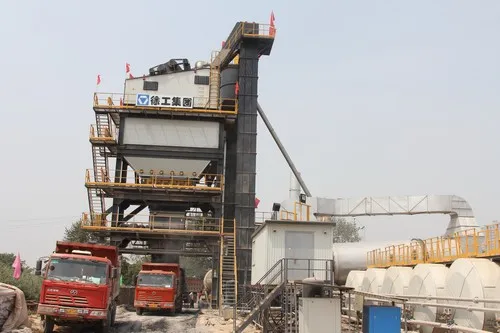

Asphalt mixing station, also known as asphalt concrete mixing station, refers to the complete set of equipment used for mass production of asphalt concrete, which can produce asphalt mixture, modified asphalt mixture and color asphalt mixture. It is the necessary equipment for building expressways, grade highways, municipal roads, airports and ports.

Equipment composition:

It mainly consists of batching system, drying system, combustion system, hot material lifting, vibrating screen, hot material storage bin, weighing mixing system, asphalt supply system, powder supply system, dust removal system, finished product silo and control system.

Item	Parameters	Unit
Rated production rate	80	t/h
Mixing capacity	1250	kg /batch
Fuel consumption rate	≤6.5	kg/t
Dust emission concentration(bag dust)	≤20	mg/Nm3
Blackness of exhaustion(ringelman level)	≤I	Level
Static measurement accuracy	±0.3	Aggregate	%
	±0.3	Powder	%
	±0.2	Asphalt	%
Dynamic measurement accuracy	±2.5	Aggregate	%
	±2.5	Powder	%
	±2.0	Asphalt	%
Total installed power	274	kW
Maximum stand-alone power	55	kW
Occupied area	812 (29m×28m)	m2
