40TPH Mobile Asphalt Mixing Plant

Supplier: Henan ZOOMLINE Machinery Co., Ltd.
Region: Henan, China
Contact: Mr ZOOMLINE MACHINERY
Price:
Min. Order: 1 piece

Click here to contact

Product details

Portable mobile asphalt mixing plant 40TPH

Product Description

Continuous drum asphalt mixing plant---An economical and highly portable alternative to intermittent asphalt mixing plants

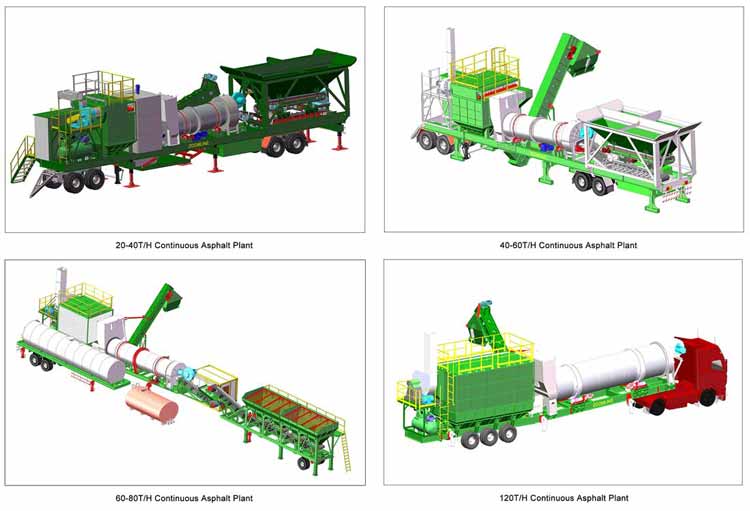

ZAP-C(M) models are available from 20TPH to 120TPH

Continuous drum asphalt mixing plants are very different from intermittent asphalt mixing plants. It produces asphalt mix in a drum while continuously drying the aggregate.

Summary:

- The "one-trail and one-hook" continuous asphalt mixing plant is optimized and redesigned based on our company's fixed continuous asphalt mixing plant

and semi-mobile continuous asphalt mixing plants.

- The "one trailer and one trailer" continuous asphalt mixing plant achieves a high degree of integration of asphalt stations, which can be realized with just one transport trailer

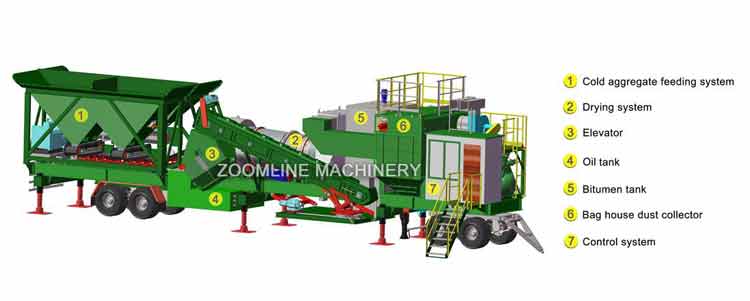

All functional requirements of asphalt mixing plant (filling, drying, mixing, finished product storage, operation),

Meet users’ requirements for quick installation, quick transition, and quick production.

- Currently, our "single-drag continuous asphalt mixing plant" has been exported to Europe, Africa, North America and other places.

The convenience of rapid transportation, transfer, and rapid re-commissioning greatly saves costs and improves construction efficiency.

Main parameters of one-trail continuous asphalt station
Model	ZAP-C20M	ZAP-C40M	ZAP-C60M	ZAP-C80M	ZAP-C120M	notes
Rated output (T/H	20	40	60	80	120	Moisture content 5%, standard state
Fuel consumption (tons/hour)	7 or less	7 or less	7 or less	7 or less	7 or less	Light oil/heavy oil/gas
Total power(KW)	50	69	110	150	210	Standard configuration
Dimensions (length × width × height) m	15.5×3.1×4.48	17.9×3.1×4.48	21×3.1×4.48	21×3.1×4.48	21.5×3.1×4.48
Number of axes	2	2	2	2	3
Cold silo capacity	4.5 cubic meters	2×4.5 cubic meters	3×4.5 cubic meters	3×4.5 cubic meters	4×4.5 cubic meters	Elective
Drum size (diameter x length)	∅1.2m×3.8m	∅1.2m×5.3m	∅1.5m×7m	∅1.5m×8m	∅1.8m×8.5m
Drum driving power (Kw)	11	15	No. 22	No. 22	7.5×4
Dust collector type	bag dust collector					Other types are also available
filter area	115 square meters	150 square meters	210 square meters	260 square meters	340 square meters
Induced draft fan power (Kw)	11	18.5	30	30	55
Finished product warehouse volume (m3)	1	1	1.5	1.5	2
How to operate	Manual/automatic
mixed type	Continuous
Asphalt heating method	Electric heating, thermal oil heating, direct heating					Elective
Measurement of asphalt	Flow measurement
Finished asphalt temperature (℃)	130℃~160℃
