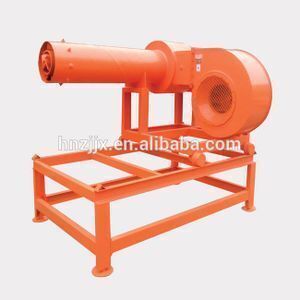

Boiler, calcining kiln industries coal Injection burner

Supplier: Henan ZOOMLINE Machinery Co., Ltd.
Region: Henan, China
Contact: Mr ZOOMLINE MACHINERY
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power Source:	coal;	Damper:	auto control air volume;
Dimension(LWH):	coal powder injection gun burner model;	Color:	Customer Required;
Condition:	New;	Voltage:	220V/380V;
Model Number:	RMQ series;	Power(W):	25kw;
Product name:	Boiler, calcining kiln industries coal Injection burner;	Delivery Detail:	10-15 working days;
Place of Origin:	Henan China;	Application:	Industry Heating Process;
Port:	Qingdao,Shanghai,Tianjin;	Weight:	coal powder injection gun burner model;
Supply Ability:	20 Set/Sets per Month;	Certification:	CE,ISO,EAC,EMC;
Warranty:	1 Year;	Drum type:	rotary, movale;
Packaging Detail:	Boiler, calcining kiln industries coal Injection burner will be packed in wood container, in 20GP;	Ignition:	oil, auto;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Brand Name:	ZOOMLINE;
After-sales Service Provided:	Engineers available to service machinery overseas;

Boiler, calcining kiln industries coal Injection burner

Product Description

RMQ series coal injection gun is a kind of new research and development design of my company on the basis of absorbing the international advanced theory and practice, it is special coal powder injection gun applied to boiler, calcining kiln industries.

Auto control coal powder injection gun burner for rotary kilns principle

Its main principle is to make lump coal into 180-200 coal powder by pulverized coal machine, then coal powder will be transported to coal injection gun by blower equipped with pulverized coal machine itself, after rotational flow, secondary wind shaping, coal powder will be blown into high temperature combustion chamber to be burned. Its simple structure, convenient operation, coal-fired efficiency is greatly increased. Realize the heating device of fire and flameout at any time, rapid temperature. Also realize the automation of operation.

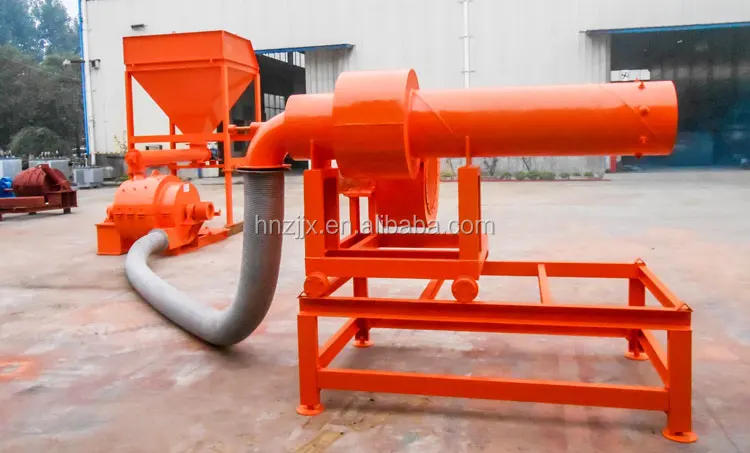

RMQ series coal injection gun burner main parts

Pulverized coal machine —— make lump coal in to coal powder, coal supply controlled by frequency screw.

Coal supply flexible pipe —— convey coal powder into coal injection gun.

Coal injection gun —— spray coal powder into combustion chamber(location of heat source).

Air-blower —— combustion-suppotring, flame secondary shaping.

Control cabinet —— automatic control of injection gun.

RMQ series coal injection gun burner parameters

Model	Coal Consumption(kg/h)	Power(kw)	Coal Pulverizer	Air Blower Power(kw)	Remark
RMQ100	80-300	14	MFJ20	1.5	Customized
RMQ500	300-500	25	MFJ40	3	Customized
RMQ1000	700-1200	35	MFJ80	5.5	Customized
RMQ1500	1000-1700	64	MFJ120	7.5	Customized
RMQ2000	1500-2200	70.5	MFJ80+MFJ80	7.5	Customized

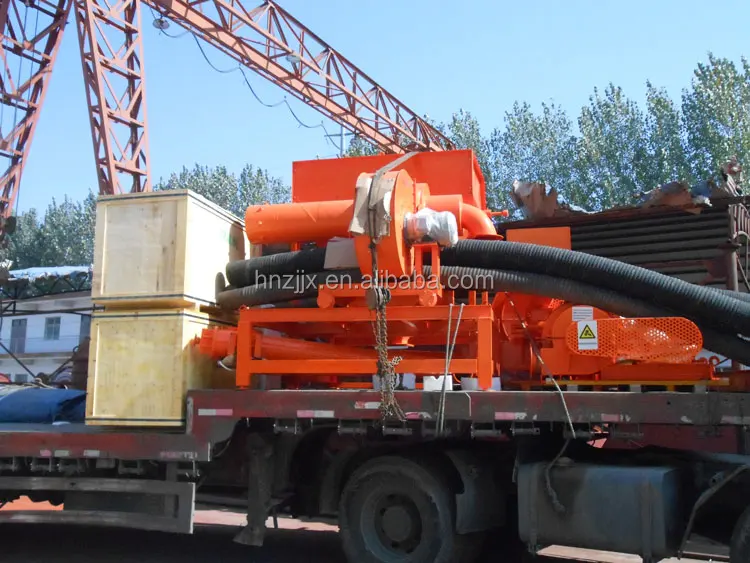

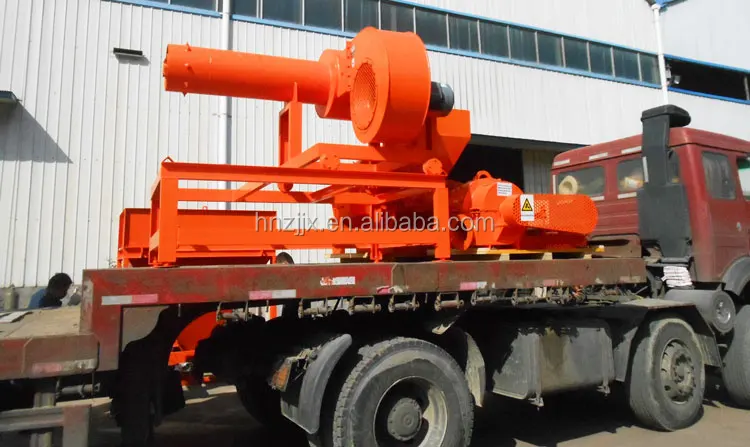

Packaging & Shipping

After-Sales Service

Perfect after-sales service system and all-round service network are the guarantee of ZOOMLINE to provide quality services. We company promotes product sales, technical service, hotline, promotion and after-sales service mainly by customer service department as complementary platform and by all levels service personnel of dealer.

ZOOMLINE Machinery adheres to service concept “everything for customers, creating value for customers, makes customers” demand as focus and achieves "exceed customer expectations, and beyond the industry standard" service goals with first-class speed, skills and attitude.
We guarantee to provide technical support to users in the whole working life of the ZOOMLINE equipment.
