RIELLO 40 G series G5 single stage oil burner for sale, oil burner for boiler

Product details
Port:Qingdao/shanghai/tianjin;Brand:Riello;
Packaging Detail:RIELLO 40 G series G5 single stage oil burner for sale, oil burner for boiler need:carton package;Supply Ability:10 Set/Sets per Week;
fuel:diesel oil;voltage:220V;
Type:Oil Burner;calorific power:28-60KW;
dimension:343*272*233mm;Color:Red;
Product name:RIELLO G5 single stage oil burner for sale, oil burner for boiler;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
weight:12kg;Material:Cast steel;
Brand Name:RIELLO;Place of Origin:Italy;
type:single stage;

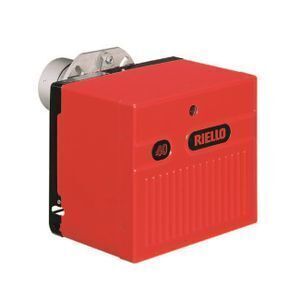

RIELLO 40 G series G5 single stage oil burner for sale, oil burner for boiler

Product Description

The Riello 40 G series of one stage light oil burners, is a complete range of products developed to respond to any request for home heating. The Riello 40 G series is available in ten different models, with an output ranging from 12 to 240 kW, divided into four different structures. All the models use the same components designed by Riello for the Riello 40 G series. The high quality level guarantees safe working. In developing these burners, special attention was paid to reducing noise, to the ease of installation and adjustment, obtaining the smallest size possible to fit into any sort of boiler available on the market. All the models are approved by the EN 267 European Standard and conform to European Directives for EMC, Low Voltage, Machinery and Boiler Efficiency. All the Riello 40 G burners are fired before leaving the factory.

Welcome for your inquiry of oil burner, diesel burner, heavy oil burner, gas burner, coal burner etc.

Technical parameters of G5 single stage oil burner

ModelG5
Dimension343*272*233mm
Weight12KG
ColorRed
MaterialCast steel
Mini output power28kw
Max output power60kw
Mini fuel2.3kg/h
Max fuel5kg/h
Fuel viscosity 20℃4-6Mm2/s
Motor rated power0.13kw
Power supply phase number1n
Power supply frequency50Hz
Power supply currentAC
Power supply voltage220v
Related Products

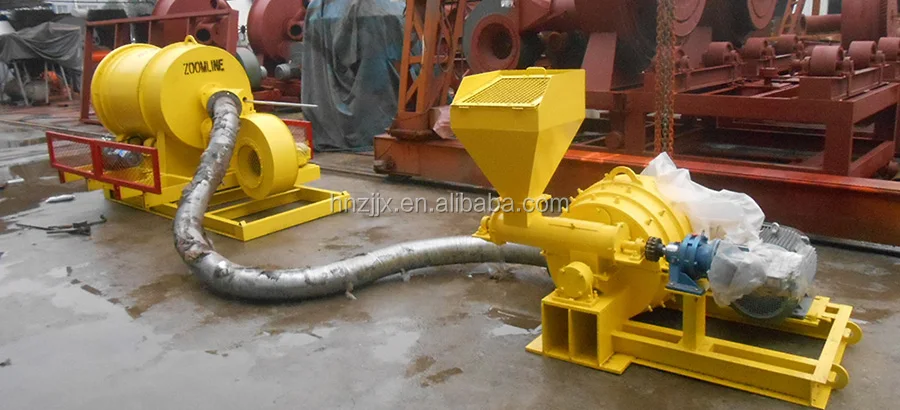

MFR20 pulverized coal burner

Waste oil burner

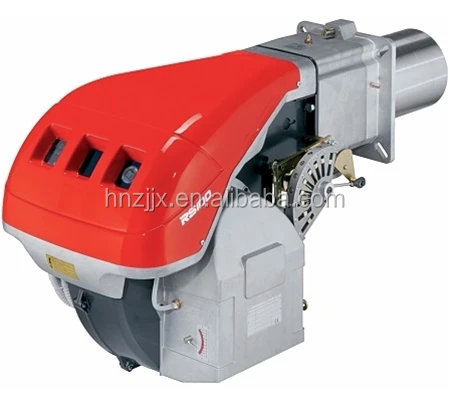

Gas burner
