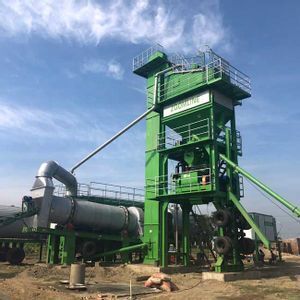

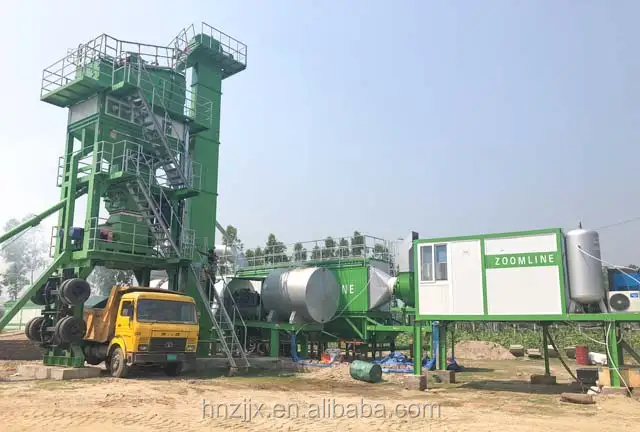

China supplier hot mix mobile asphalt station, 1000kg/batch mobile asphalt plant

The hot mix mobile asphalt station, 1000kg/batch mobile asphalt plant working condition:

Specially designed for the project which requires to regrading the aggregate to make sure the gradation of asphalt mixture and quality.

Having special requirements for quick assembly and disassembly, and easily transported to other working site.

The advantages of mobile asphalt hot mix plant machine,movable bitumen batching equipment

1.Lower energy consumption

2.Lowering the temperature of the discharging material (near the asphalt pavement)

3.Reducing the transportation cost of mixed material

4.Reducing the quantity of the truck which are transporting the mixed material

5.Easy installation

6.The difficult and requirements for the installation is easier.

Why choose the ZOOMLINE mobile asphalt hot mix plant

1.The equipment is applicable to small and medium-sized projects, which requires to regrading the aggregate to make sure the gradation of asphalt mixture and quality.

2.The working principle and technical characteristics are identical with traditional stationary batch mix asphalt plant.

3.Being applicable to various working condition and easily operation

4.All kinds of mobile parts you can choose

5.RAP recycling asphalt drying drum is an optional

ZOOMLINE mobile asphalt hot mix plant main components

1. Cold Feed System---Mobile Type

The belt feeder adopts frequency control, automatic speed regulation according to the output and ratio.

The aggregate storage bin equipped with vibrating arch breaker.

Each hopper equipped with grid to shake out the large aggregates.

2. Drying Drum---Mobile Type

Optimized the blade geometry of the dryer to make the drying and heating process extremely efficient, reduce energy consumption, and increase the heating efficiency by 30% compared with the conventional design; due to the high heating efficiency, the surface temperature of the drum is relatively low, so the cooling after operation the time is greatly shortened.

Completely insulated and composite aggregate drying drum. The support roller is driven by the friction of the polymer by the motor and the gear unit.

Adopt the famous brand Honeywell temperature intelligent control system.

3. Hot Elevator---Mobile Type

4. Mixing Tower---Mobile Type

Integrated vibrating screen and thermal storage, weighing and blender in a mobile chassis for easy transport and installation.

Improve vibration and amplitude to optimize the impact on the available screen.The optimum combination of vibration direction and screen box inclination ensures screen ratio and screen efficiency.

Use the well-known brand TOLEDO weigh sensor to ensure accurate weighing and ensure the quality of asphalt mixture.

Bitumen is sprayed from multi-points evenly over aggregate by one pressurized bitumen pump to achieve full coverage and high mixing efficiency.

Legs with support base to ensure adequate stability.

5. Dust Collecting System---Mobile Type

Gravity type primary dust collector collects finer dust and saves consumption.

The discharge of the secondary dust collector in the baghouse is less than 20mg/Nm3, which is environmentally friendly.

Using the US Dopont NOMEX filter bags, it is resistant to high temperature and has a long service life. The filter bag can be replaced easily and without special tools.

Mobile chassis as optional according to project solution.

6. Filler Supplying System---Mobile Type

7. Control Room (Mobile chassis is an optional)

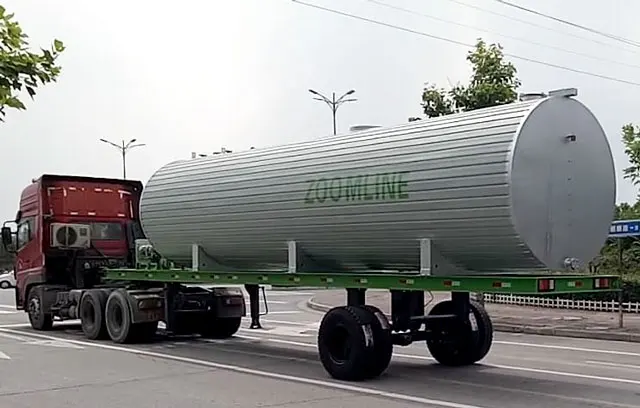

8. Bitumen Heating and Supply System (Mobile chassis is optional)

9. Fuel oil Supplying System (Mobile chassis is optional)

Technical parameters of ZAP-M series hot mix mobile asphalt plant:

Henan ZOOMLINE Machinery CO., Ltd is based in Nanyang Longsheng Industrial Park of Henan, ZOOMLINE Machinery is a professional manufacturer of asphalt mixing plant, pulverized coal burner and support equipments that draws on years' experiences and technology developments.

Our main asphalt mixing plants include:

Stationary asphalt mixing plant 40-320TPH,

Mobile asphalt mixing plant 40-160TPH,

Continuous asphalt mixing plant 20-160TPH,

Recycling asphalt mixing plant 60-120TPH

ZOOMLINE Machinery certificate

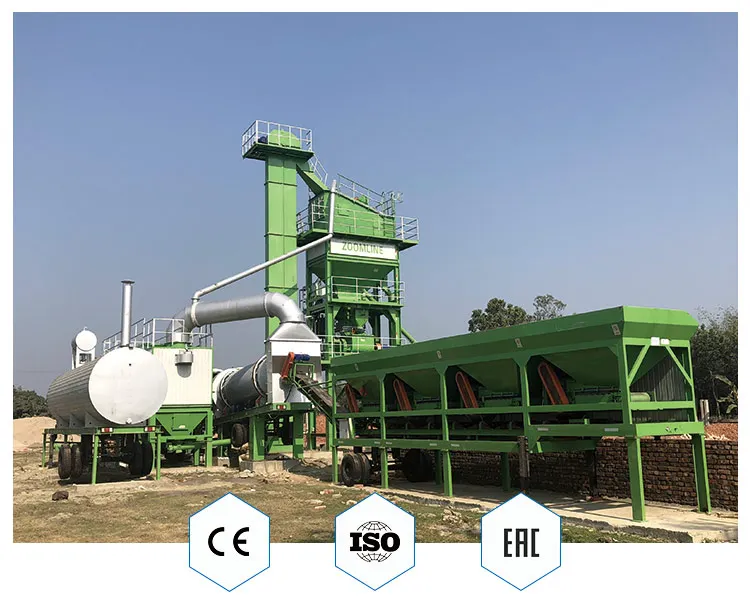

Nowadays, our asphalt plant products have been sold to Russia, Cambodia, Bangladesh, Uzbekistan, Kyrgyzstan, Egypt, Pakistan, Georgia, Indonesia, Belgium and Thailand etc. Our asphalt mixing plants have got CE,GOST,EAC,EMC and ISO9001 certification and we hold 18 patents which own to the concerted efforts of our employees.

Since ZOOMLINE start-up, we have become one of the most reliable partners of construction projects at home thorough ongoing technical investment.Welcome to our factory to visit the asphalt mixing plants.

1.The whole asphalt mixing plant is designed according to standard high cabinet container, suitable for the construction requirement in both home and abroad.
2.All the components of this asphalt plant can be put into the container, can greatly reduce transport cost.

1. Professional technical team, to provide users with equipment selection, layout program design, construction programs and other consultation services.

2. Technical guidance during equipment operation, PLC with remote monitoring, large capacity recipe storage,special needs customization.

3. Equipment installation, commissioning, training technical support. Provide a full range of technical training on operation, maintenance for users and equipment manager, to provide multiple technical advice.

4. The equipment upgrades, relocation technical support in the future. To provide seamless equipment technology upgrades,perfect and efficient removal plan.
