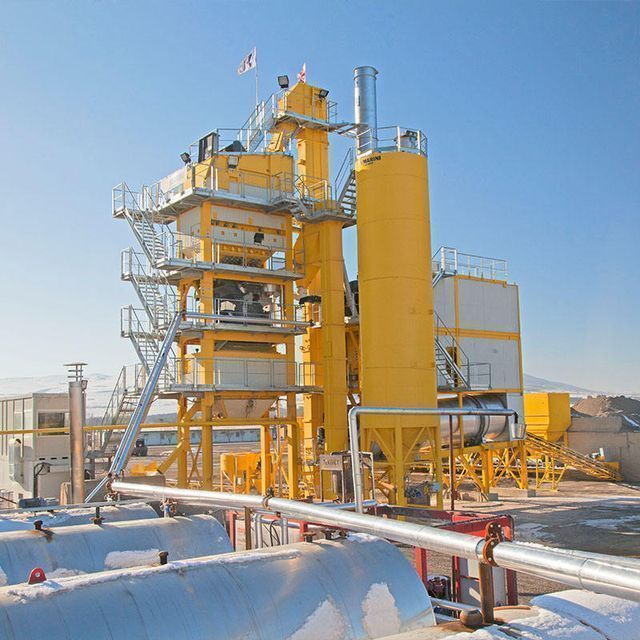

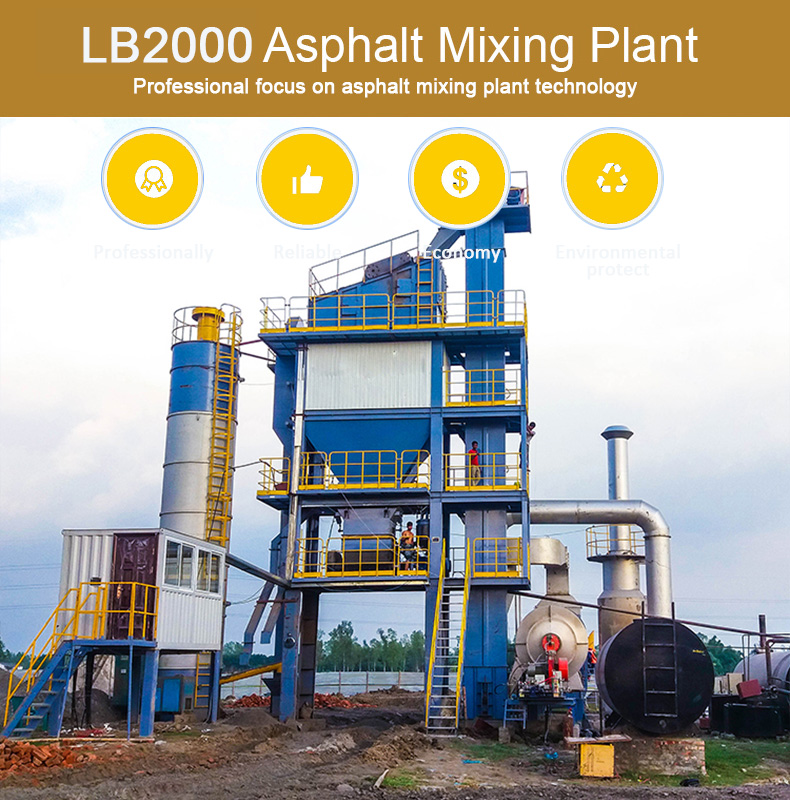

LB2000 160t/h Asphalt Mixing Plant
-
Supplier: Henan Sinoroader Heavy Industry Corporation -
Region: Henan, China -
Contact: Ms Sarah Guo -
Price: $60000.00 /set -
Min. Order: 1 set
Product details
| Core Components Warranty: | 2 years | Weighing system: | Hot aggregate: ±0.5%; Asphalt: ±0.25%; Filler: ±0.2% |
| Asphalt discharge (L/min): | 700 | Showroom location: | Pakistan, Russia |
| Supply capacity: | 10 sets per month | Belt feed rate (t/h): | 175 |
| Warranty: | 1 year | Mixer capacity: | 2000kg |
| Unique Selling Points: | High operating efficiency | Total Power (kW): | ≤413 |
| Capacity (tons/hour): | 160 | Voltage: | 220V/380V-50HZ (adjustable), 220V/380V-50HZ (adjustable) |
| Mechanical test report: | if | Primary Gravity Dust Collector: | Cyclone dust collector, volute dust collector |
| Health status: | new | Applicable industries: | Building material stores, mechanical repair shops, manufacturing plants, construction works |
| place of origin; place of origin: | Henan, China | Dimensions (L*W*H): | 80m x 65m x 21m |
| strength: | 500KW | Drying capacity (t/h): | 90 |
| Noise (dB): | ≤70 | Packaging Details: | China Manufacturer Supplier LB2000 160t/h Asphalt Mixing Plant Needs: 15*40HQ + 1*FR container |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Video external inspection: | if |
| weight: | 18500 kg | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| brand: | China Lutheran | port: | any port in China |
| Marketing Type: | Hot Products of 2019 |
Model | capacity (standard conditions) | mixer capacity | Dust removal effect | total power | Fuel consumption | Measurement accuracy | ||
fuel | fuel coal | Aggregate: ±0.5% Filler: ±0.25% Asphalt: ±0.25% | ||||||
LB700 | 60 tons/hour | 750kg | ≤20 mg/Nm³ | 178kW | 5.5-7kg/ton | 10kg/ton | ||
LB1000 | 80/hour | 1000kg | ≤20 mg/Nm³ | 285kW | 5.5-7kg/ton | 10kg/ton | ||
LB1200 | 100 tons/hour | 1200kg | ≤20 mg/Nm³ | 316kW | 5.5-7kg/ton | 10kg/ton | ||
LB1500 | 120 tons/hour | 1500kg | ≤20 mg/Nm³ | 380kW | 5.5-7kg/ton | 10kg/ton | ||
LB2000 | 160 tons/hour | 2000kg | ≤20 mg/Nm³ | 470kW | 5.5-7kg/ton | 10kg/ton | ||
LB3000 | 240 tons/hour | 3000kg | ≤20 mg/Nm³ | 700kW | 5.5-7kg/ton | 10kg/ton | ||
LB4000 | 320 tons/hour | 4000kg | ≤20 mg/Nm³ | 870kW | 5.5-7kg/ton | 10kg/ton | ||
LB5000 | 400 tons/hour | 5000kg | ≤20 mg/Nm³ | 960kW | 5.5-7kg/ton | 10kg/ton | ||

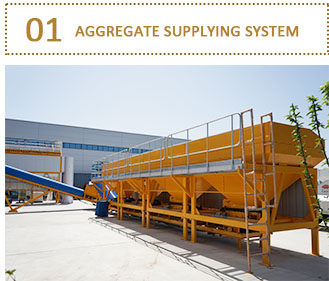

1. There are protective plates on both sides of the aggregate hopper to prevent debris from entering the aggregate and conveyor belt;
2. In order to make the feeding smoother, there is a vibrator under each hopper;
3. Add a grid plate at the top of each hopper to buffer the impact of the aggregate flow and screen the oversized aggregate at the same time;
4. The conveyor belt is protected by a dust cover to reduce dust emissions;
5. Added belt cleaners and pinch rollers to make aggregate supply more smooth and accurate, in addition, they extend the
belt durability;
6. A small vibrating screen is added between the belts to further screen the oversized aggregates;
7. The supply system is equipped with a material shortage alarm system to ensure safe and smooth production.
2. In order to make the feeding smoother, there is a vibrator under each hopper;
3. Add a grid plate at the top of each hopper to buffer the impact of the aggregate flow and screen the oversized aggregate at the same time;
4. The conveyor belt is protected by a dust cover to reduce dust emissions;
5. Added belt cleaners and pinch rollers to make aggregate supply more smooth and accurate, in addition, they extend the
belt durability;
6. A small vibrating screen is added between the belts to further screen the oversized aggregates;
7. The supply system is equipped with a material shortage alarm system to ensure safe and smooth production.

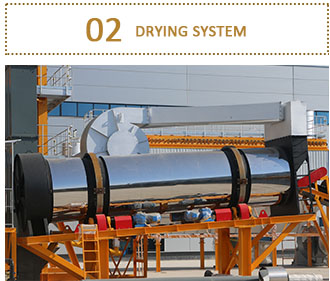

1. The drive unit has an automatic lubricating device, which greatly reduces labor costs;
2. Different areas in the drying cylinder have different blade configurations, which can handle aggregates in different processes;
3. The rolling rings and rollers are made of high-strength wear-resistant materials. Two rolled anti-deflection rollers
ring;
4. The cylinder body is made of boiler steel and stainless steel skin, which is resistant to high temperature and does not deform;
5. The cylinder body is made of thermal insulation rock wool material, which can maintain the internal temperature and reduce heat loss.
2. Different areas in the drying cylinder have different blade configurations, which can handle aggregates in different processes;
3. The rolling rings and rollers are made of high-strength wear-resistant materials. Two rolled anti-deflection rollers
ring;
4. The cylinder body is made of boiler steel and stainless steel skin, which is resistant to high temperature and does not deform;
5. The cylinder body is made of thermal insulation rock wool material, which can maintain the internal temperature and reduce heat loss.

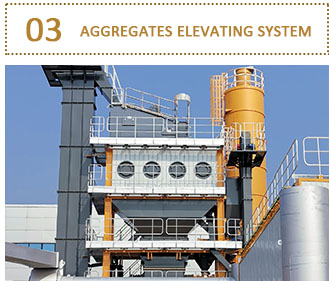

1. The aggregate hoist adopts modular design and adopts the latest dust-proof sealing structure;
2. The elevator adopts double-plate chain link design, which prolongs the service life of the elevator and reduces the maintenance frequency;
3. Good sealing with the motor;
4. The famous cycloidal pinwheel reducer is adopted, and the power is stronger and more reliable;
5. The aggregate slideway adopts damping structure wear-resistant plate chain to improve performance.
2. The elevator adopts double-plate chain link design, which prolongs the service life of the elevator and reduces the maintenance frequency;
3. Good sealing with the motor;
4. The famous cycloidal pinwheel reducer is adopted, and the power is stronger and more reliable;
5. The aggregate slideway adopts damping structure wear-resistant plate chain to improve performance.

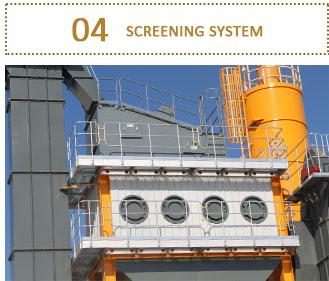

1. The vibrating screen adopts the world famous brand vibration motor, which is fully sealed;
2. The aggregate storage silo adopts a large silo structure to avoid material overflow;
3. The aggregate silo is separated by high-strength wear-resistant plates to avoid mixing of aggregates;
2. The aggregate storage silo adopts a large silo structure to avoid material overflow;
3. The aggregate silo is separated by high-strength wear-resistant plates to avoid mixing of aggregates;

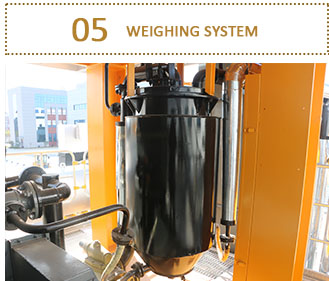

The world famous brand (TOLEDO) weighing device is adopted to ensure that the aggregate measurement error is less than 0.5%.
The measurement error of asphalt and filler is less than 0.25%.
The measurement error of asphalt and filler is less than 0.25%.

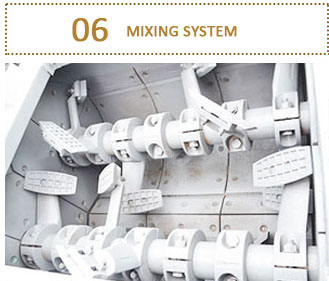

1. The mixer, stirring blade and lining plate are all made of high-quality materials with high hardness and high wear resistance;
2. The cycloid reducer has better transmission efficiency and simpler structure.
2. The cycloid reducer has better transmission efficiency and simpler structure.

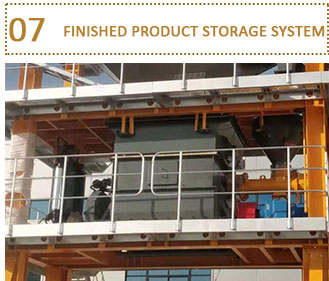

1. The storage bin has a heating device to maintain the temperature and quality of the final mixture;
2. The silo has an anti-blocking device to maintain the quality of the asphalt.
2. The silo has an anti-blocking device to maintain the quality of the asphalt.

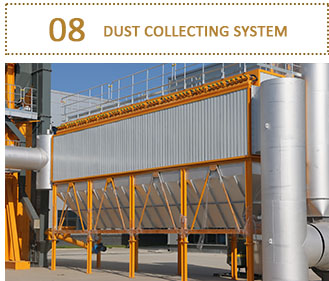

1. Double dust collection system, including a first-stage volute dust collector and a second-stage bag filter for large-scale dust removal
Further get rid of the rest of the collector;
2. Adopt famous brand induced draft fan to ensure high efficiency and low power consumption.
Further get rid of the rest of the collector;
2. Adopt famous brand induced draft fan to ensure high efficiency and low power consumption.
Q1. Are you a factory or a trading company?
A: We are a professional manufacturer of factories and asphalt mixing plants.
Q2: What is the delivery time?
A: 30-50 days after receiving the prepayment
Q3: What are the payment terms?
Answer: Wire transfer. Both L/C are accepted.
Q4: Can I visit your factory?
A: Of course. We warmly welcome you to visit our factory. We provide you with excellent services such as airport pick-up, hotel reservation,
and many more
Q5: Do you provide after-sales service?
Answer: Yes. Our machine warranty period is one year, we have a professional after-sales service team in a timely manner,
Solve your problem completely.
Q6: Which countries are your equipment exported to?
A: Thailand, Philippines, Indonesia, Myanmar, Russia, Bangladesh, Kazakhstan, Uzbekistan, Russia, Romania, Somalia, Kenya, Malawi,
Nigeria, Togo, Mozambique, Oman, South Africa, the United States, Peru, Chile, Colombia, Venezuela, Australia, etc.
Q7: Do you provide overseas erection and training services?
A: Yes, we can send experienced engineers to your country to guide installation and commissioning, and train your workers how to operate
plant.
Q8: What is the price?
A: We are a manufacturer, not a distributor, so we can give you a lower price than those trading companies.
A: We are a professional manufacturer of factories and asphalt mixing plants.
Q2: What is the delivery time?
A: 30-50 days after receiving the prepayment
Q3: What are the payment terms?
Answer: Wire transfer. Both L/C are accepted.
Q4: Can I visit your factory?
A: Of course. We warmly welcome you to visit our factory. We provide you with excellent services such as airport pick-up, hotel reservation,
and many more
Q5: Do you provide after-sales service?
Answer: Yes. Our machine warranty period is one year, we have a professional after-sales service team in a timely manner,
Solve your problem completely.
Q6: Which countries are your equipment exported to?
A: Thailand, Philippines, Indonesia, Myanmar, Russia, Bangladesh, Kazakhstan, Uzbekistan, Russia, Romania, Somalia, Kenya, Malawi,
Nigeria, Togo, Mozambique, Oman, South Africa, the United States, Peru, Chile, Colombia, Venezuela, Australia, etc.
Q7: Do you provide overseas erection and training services?
A: Yes, we can send experienced engineers to your country to guide installation and commissioning, and train your workers how to operate
plant.
Q8: What is the price?
A: We are a manufacturer, not a distributor, so we can give you a lower price than those trading companies.
