20T/H - 100T/H Hot Mixing Plant Drum Mixing Asphalt Plant For Sale Continuous Asphalt Plant Price Mobile Asphalt Mixing Plant

Supplier: Asian Construction Equipment Group Co., Ltd.
Region: Henan, China
Contact: Mr Watson Bai
Price: $72000.00 /set
Min. Order: 1 set

Click here to contact

Product details

strength:	55kW - 167kW	Marketing Type:	hot product
payment terms:	L/C, Western Union, T/T, MoneyGram	Core components:	PLC, gearbox, motor, pressure vessel, gear, pump
Voltage:	220V/380V-50HZ or customized	Health status:	new
Unique selling point:	compact design	Combustion System:	Diesel burner system
brand:	master	Showroom location:	Egypt, Italy, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Thailand, Kenya, Argentina, Chile, United Arab Emirates, Algeria, Sri Lanka, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia, Morocco
Warranty:	1 year	Fuel consumption:	5.5-7kg/ton
Core component warranty:	1 year	capacity:	20-100 tons/hour
After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services	Mechanical test report:	if
Local service location:	Egypt, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, Chile, UAE, Colombia, Algeria, Sri Lanka, Bangladesh, South Africa, Kazakhstan , Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan	weight:	120,000 kg
color:	customizable	Packaging Details:	40HQ container
gasoline:	oil, gas, coal	After-sales service provided:	Provide overseas service, video technical support, online support, free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services
place of origin; place of origin:	Henan, China	usage:	Asphalt
Supply capacity:	150 sets per year	Applicable industries:	Manufacturing plants, construction engineering, energy and mining, road construction, road construction
Dimensions (LWH):	32219 meters	Package preview:
Control System:	button	Video shipment inspection:	if
Hybrid type:	Drum Continuous Hot Mix	Certification:	ISO, European Union
Discharge height:	3.8m	port:	Chinese port

Product overview

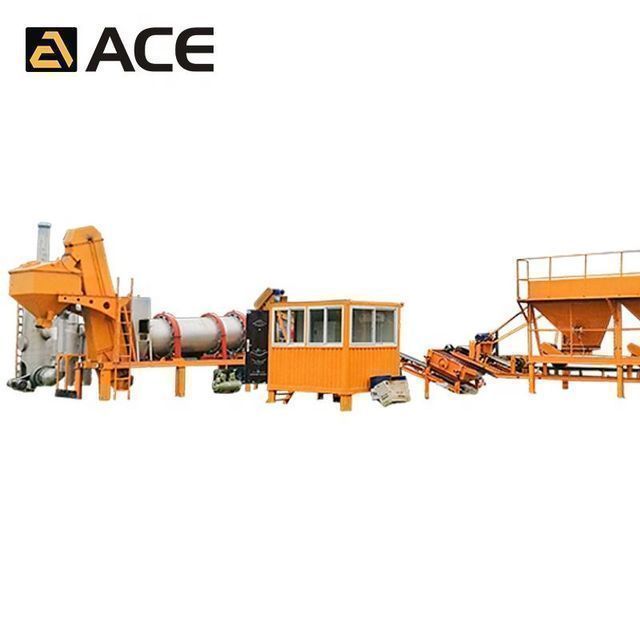

Drum Mixed Asphalt Plant -- DAP

Drum mix asphalt plants for sale produce asphalt mix through a continuous process and are therefore also known as continuous asphalt plants (compared to batch asphalt plants).
In some countries and regions, drum mixing asphalt plants are also called asphalt drum mixing plants, drum asphalt production plants, drum asphalt plants, etc.

List of functions

Model:DAP20 ~ DAP100
Production capacity:20 tons/hour～100 tons/hour
emphasize:
Continuous asphalt equipment, drum mixing; compact structure, easy to move;
Low initial investment, high cost-effectiveness, and short payback period.

right level

left elevation

Front view

product specification

Model	production capacity	aggregate feeder	hot storage	total power
DAP 20	20 tons/hour	3.5 cubic meters x 3	2.5 cubic meters	55 kW
DAP 40	40 tons/hour	4 cubic meters x 3	2.5 cubic meters	89 kW
DAP 60	60 tons/hour	4 cubic meters x 4	3.5 cubic meters	111 kW
DAP 80	80 tons/hour	6 cubic meters x 4	4.5 cubic meters	142kW
DAP 100	100 tons/hour	6.5 cubic meters x 4	5.5 cubic meters	167 kW

product configuration

1. Aggregate feeder

2. Asphalt tank

3. Burner

4. Operation panel

5. Hot storage bin

6. Mobile chassis

main features

1.Smaller size and compact construction with less floor space can be located in narrow or restricted areas.
2.Compared with intermittent asphalt mixing plants, DHB series has no mixing tower, which is very convenient for transportation, installation and relocation.
3.Cold aggregate feeder with load cell and variable frequency motor; precise control of aggregate feeding.
4.The drying cylinder has the functions of heating, drying and mixing, and has higher energy efficiency; the optimized internal structure and external thermal insulation shell can heat up quickly and reduce heat loss.
5.Easier to operate and maintain.
6.Low initial investment, high cost performance.

Professional manufacturer of asphalt mixing equipment.

The design and manufacture of asphalt mixing plants is one of the core businesses of Anda Group. Professional engineering and technical personnel
Capable of designing batch, drum, thermal regeneration and mobile asphalt mixing plants. Skilled workers and production teams guarantee the quality, precision, overall performance and efficiency of our asphalt mixing plants.

ACE has established a professional team to design and manufacture mobile asphalt mixing plants for customers from all over the world
world.
ACE Group is able to manufacture 150 asphalt plants per year.
