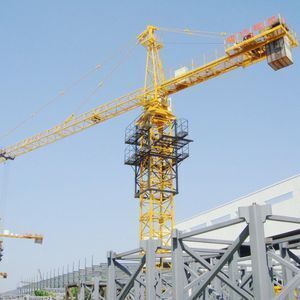

SHANDONG HONGDA TIELISHI Tower Crane QTZ63B 5610 6t lifting capacity

Click here to contact

Product details

Place of Origin:	Shandong China;	Span:	56m;
Application:	All building construction;	After-sales Service Provided:	Engineers available to service machinery overseas;
Port:	Qingdao;	After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Free spare parts;
Packaging Detail:	6x40HQ;	Rated Lifting Moment:	630KN.M;
Certification:	ISO/CCC/CE;	Brand Name:	Hongda TIELISHI;
Tip Load:	1t;	Payment Terms:	L/C,T/T,Western Union;
Max. Lifting Height:	141m;	Supply Ability:	100 Set/Sets per Year;
Rated Loading Capacity:	6T;	Warranty:	1 year;
Condition:	New;	Feature:	Tower Crane;

Tower Crane QTZ63B		(5610)
Max.Radius(m)		56
Independent Height(m)		41
Max.Height(m)		141
Max.Lifting Capacity(t)		6
Wall-attached Frame		6
Main Material		135×135× 10 Square steel tube

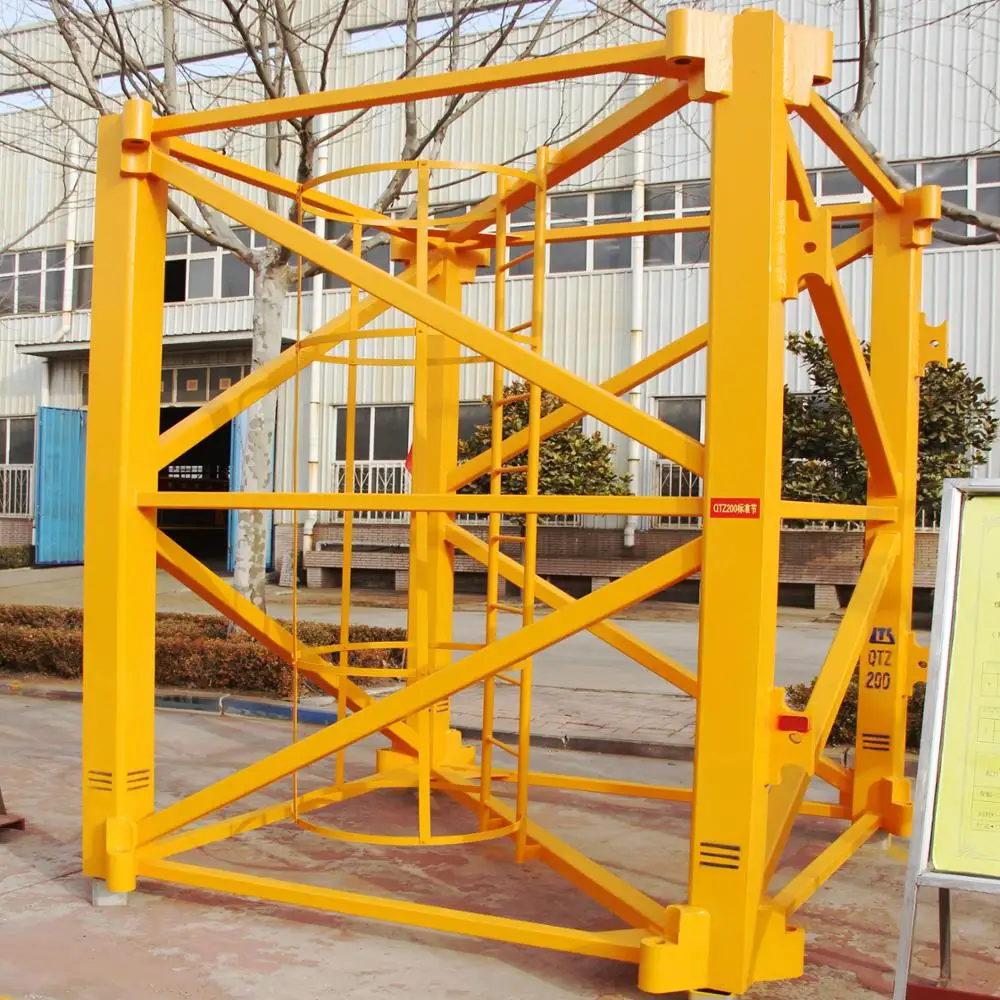

Standard Mast Section Dimension		1.835×1.835×2.5
Hositing Speed(m/min)		80/40/10
Mini.Stabilizing Falling Speed(m/min)		5
Slewing Speed(r/min)		0-0.62
Traveling Speed(m/min)		40/20
Climbing Speed(m/min)		0.6
Motor Total Power(kw)		55.2
Complete Ma0hine Total Weight	Independent Structure Weight(kg)	36800
	Counter Weight(t)	14.85
