Condition: | New; | After-sales Service Provided: | Video technical support,Online support; |
Packaging Detail: | Comply with export packaging requirements; | Application: | construction; |
Brand Name: | XCMG; | Rated Loading Capacity: | 6t; |
Certification: | ISO9001; | Max. Lifting Height: | 60m; |
Payment Terms: | L/C,T/T; | Feature: | Tower Crane; |
Supply Ability: | 10000 Unit/Units per Year; | Applicable Industries: | Construction works ; |
Feature: | Tower Crane; | Port: | Any China port; |
Place of Origin: | Jiangsu China; | Span: | 60m; |
Rated Lifting Moment: | 100 t*m; | Warranty: | 1 year; |

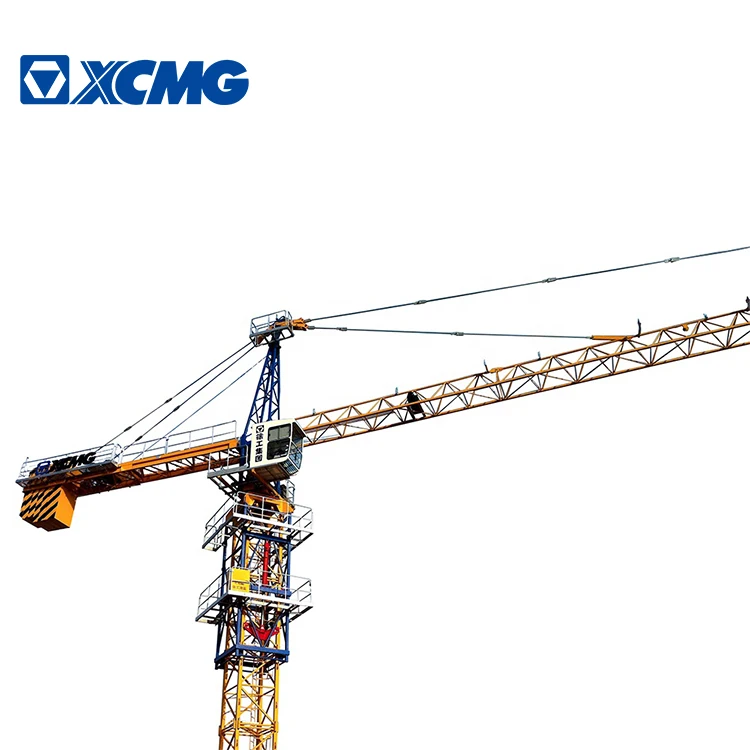

Tower crane XGTT100CII (6013-8), which is characterized by its horizontal boom, trolley-slewing and upper-slewing mechanisms, and which is a multi-purpose self-elevating crane with following features:
1. Its performance parameters and technical indicators are domestically advanced, with the maximum working radius of 60mand the maximum lifting height of 180mrespectively.
2. This crane can operate in independent-stationary, under-frame-stationary, attached or travelling modes which apply to various constructing objects.
3. The appearance of this crane is internationally fashionable and beautiful, therefore popular with customers both at home and abroad.
4. The crane is characterized by its high operating speed, sound speed control performance as well as stable and reliable operation.
5. The electrical system is equipped with French Schneider components, featuring long service life, small failure rate and simple maintenance. Also, it works steadily.
6. The safety devices equipped, which are mechanical or mechanical-electrical integrated products, can help to ensure the reliable work of tower crane.
Type | XGTT100CII(6013-8) | |
Basic height | 45M | |
Max height | 216M | |
Length | 60/55/50/45/40/35/30 | |
Max load | 8t | |
Tip load | 1.3/1.6/1.85/2.15/2.6/3.1/3.8 | |
Section size | 1600*1600*3000 | |
Section material | Angle steel/Folding | |
Items | Mechanism | Speed(m/min) |
Hoist mechanism | 30QP20T | 0-80 |
0-40 | ||
Trolleying mechanism | 40BP65 | 0-50m/min |
Slewing mechanism | 40HP100 | 0-0.6r/min |
Travelling | RT | 0-24m/min |
Main Supply | 380V(±10%)/50Hz* |
