cleaning equipment Used automatic transporting style steel plate shot blasting machine

Supplier: Yancheng Ding Tai Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Merry Wang
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Material:	Metal / Coil;	Condition:	New;
Port:	Shanghai;	Machine Type:	Abrator;
Use:	Burnishing,Degreasing,rust removal / rust cleaning;	cleaning equipment:	steel plate;
Power(W):	custom-made;	Certification:	ISO9001:2008;
Feature:	Critical Cleaning / Residue Free;	Dimension(LWH):	custom-made;
Supply Ability:	60 Set/Sets per Month;	Payment Terms:	L/C,T/T;
Cleaning Process:	steel shot and steel grit;	Industry Used:	machinery,foundry,forging,iron and steel industry;
Cleaning Type:	shot blasting and sand blasting;	Packaging Detail:	1.wooden case packing 2.in container;
sand blasting machine:	custom-made;	Place of Origin:	Jiangsu China;
through type shot blasting machine:	rust cleaning;	Brand Name:	Ding Tai;
Fuel:	Electric;	Delivery Detail:	Shipped in 30 days after payment;
steel plate cleaning machine:	made in china;	After-sales Service Provided:	Engineers available to service machinery overseas;

Product Description

The machine Description

1.Steel shot production line is mainly composed of feeding roller, shot blasting derusting system, dust removal system, transition check table, steel plate cutting roller and electric control system, etc.Its function is to steel (steel, steel plate) clear surface derusting, the steel clean bright surface with certain roughness.

2.By steel roller conveyor system, to the closed chamber the shotblast cleaning, the high-speed rotating impeller with a blasting device accelerates a projectile hit to the surface of workpiece, to shock, scraping the surface to remove surface rust and dirt, and then by making use of the rolling brush and high-pressure blower product pill on the surface of the workpiece and dust swept clean, after cleaning of steel through the output roller sent out quickly, into the next procedure.After derusting precoating shop primer, ensure no secondary pollution in the manufacturing process of steel in the workshop of rust, keep steel finally surfacc preparation for a clean surface of no corrosion, no pollution.

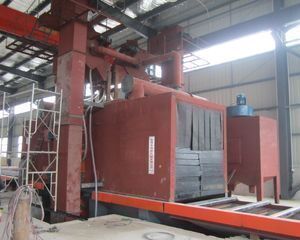

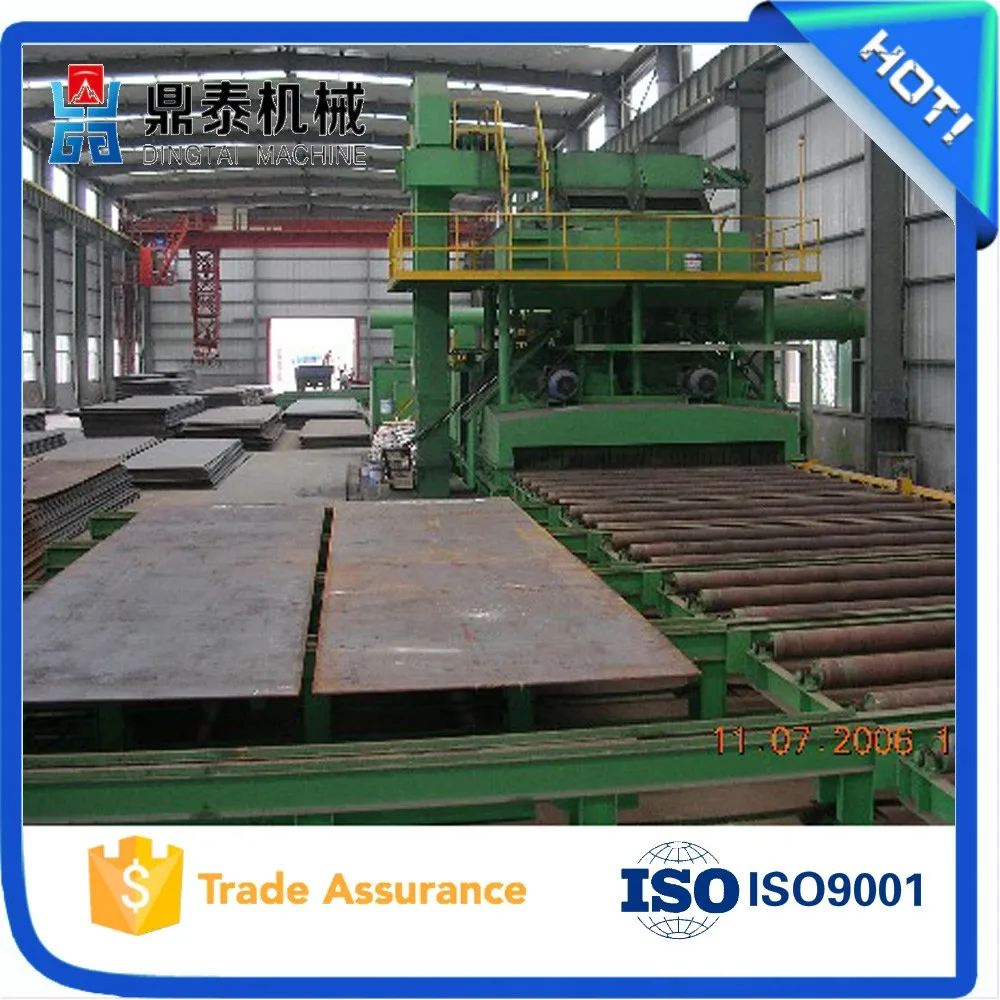

Machine Picture

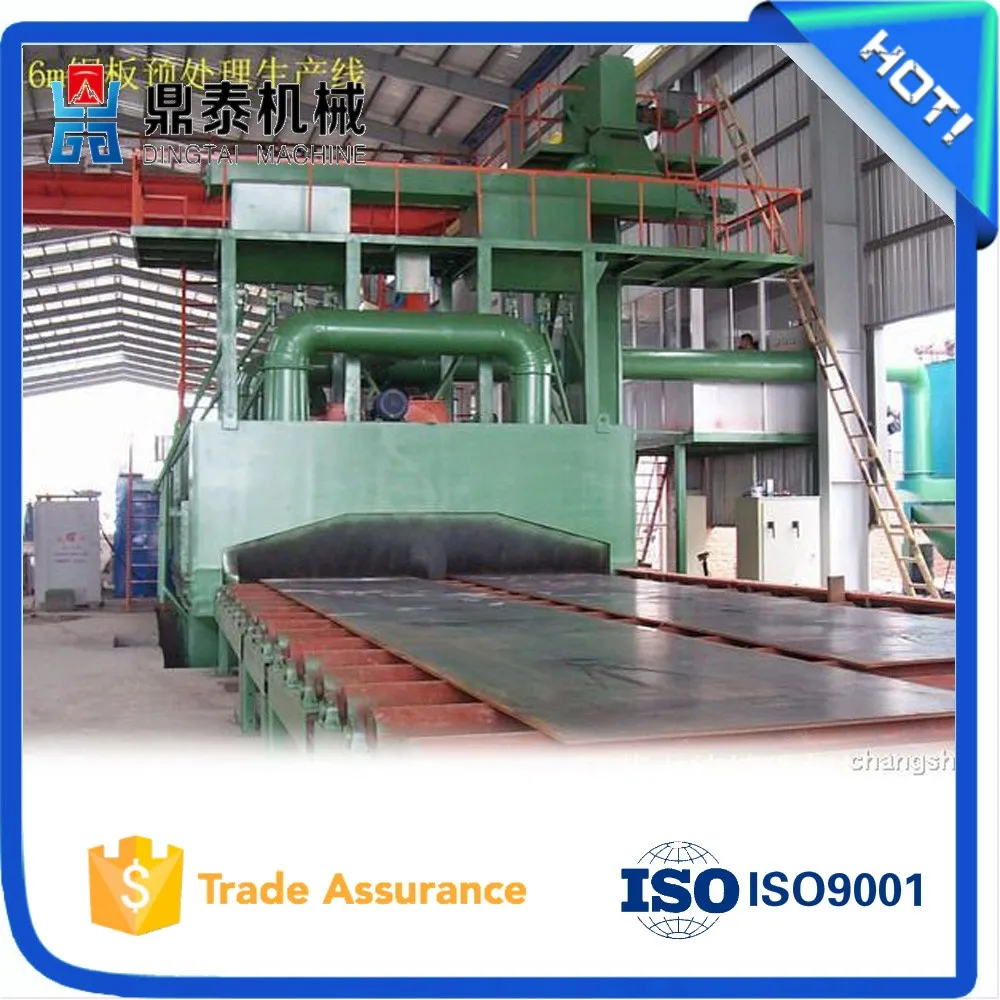

Q69 series steel plate andsection steel pretreatment line is mainly composed of such stage as preheating,shot blast cleaning,painting and stove,etc it is suitable for the sections in such industries as ship-making,automobile making,locomoyive vehicle,bridge and machinery.

Used automatic transporting style steel plate shot blasting machine,derusting cleaning equipment.

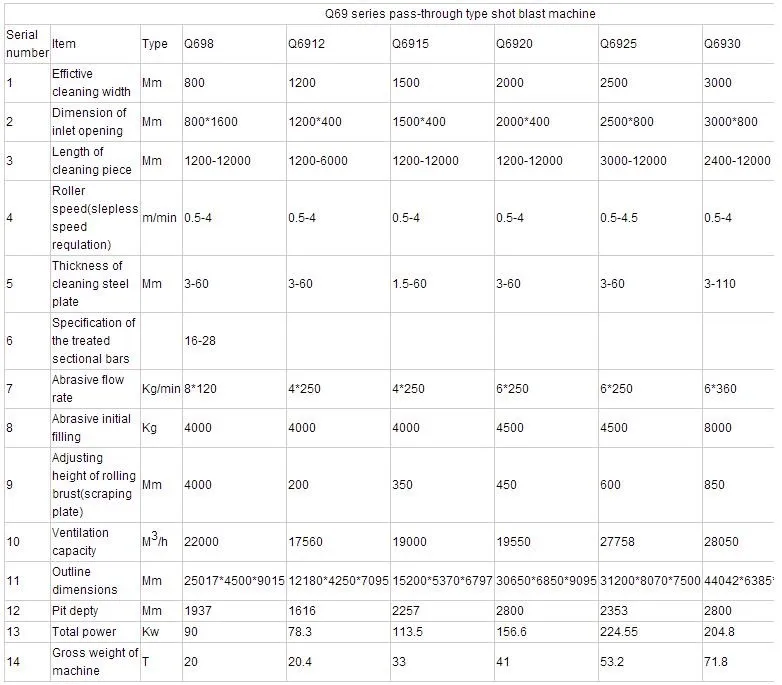

Technical Parameters

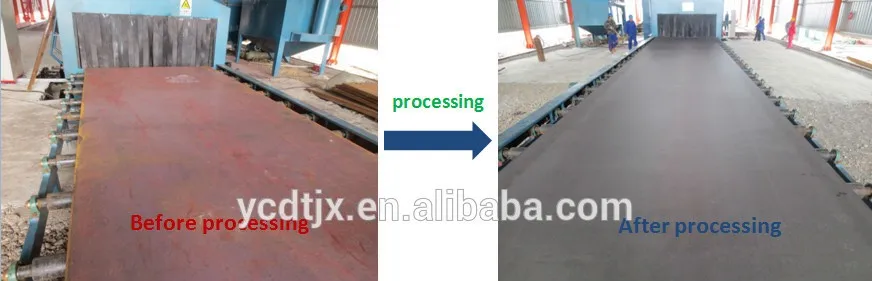

Product Result Show

Main Parts

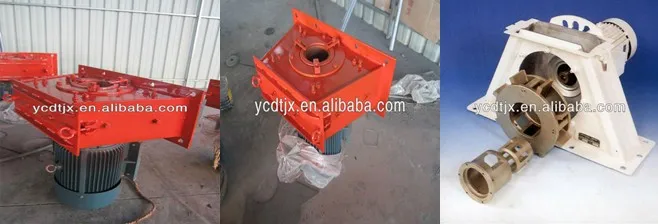

Blasting Wheel:

A.The features of our blasting wheel:

1.This type of shot blasting machine consists of impeller, vane, maru, orientation, the pipe, plate, cover, shaft, motor, etc

2.Motor installation with shot blasting machine adopts the flange on the chamber body, has the high stability, small vibration, etc.Projectile by import tube into the points in round pill, pre-accelerated by directional thrown mouth, after the blade continue to accelerate, in turn, a strong attack to high-speed projectile to the workpiece surface, in order to achieve the purpose of cleaning.

B.The advantages of our blasting wheel:

a) efficient: special points and shot blasting wheel structure, blasting ratio can reach 17.5 kg/min).Kw

b) blade quickly: installation for the shot blasting machine blade is inserted, the impeller center on the effect of centrifugal force in the process of the impeller rotating and fixed blade, so don't need any clamping tools.Removing blade, just tap outside blade side can easily be unloaded from the impeller center leaf.Just 5 ~ 10 minutes, remove the eight leaves, and can check points at the same time the abrasion of wheel and directional set.

c) adopts double disc impeller, good stability, concentrated mass ejection area, uniform blast.

d) in this shot blasting machine blade, maru, orientation, etc., the use of special high chromium wear-resistant cast iron materials, makes the control of blade weight difference within 5 grams, greatly reducing the noise of the shot blasting machine run time (less than 85 db), prolong the service life of wearing parts.

e) beautiful appearance, structure, manufacturing and maintenance.Shot the workpiece surface quality to meet the workpiece after visual inspection and magnetic particle inspection of common criteria.

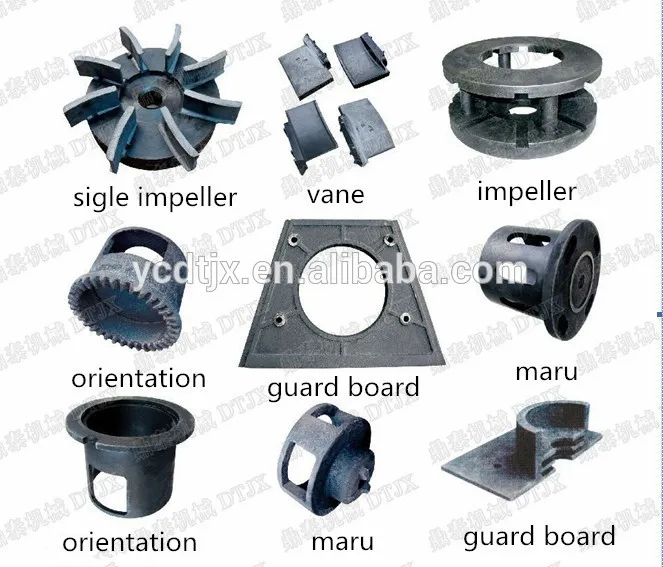

C .The accessorise of blasting wheel:

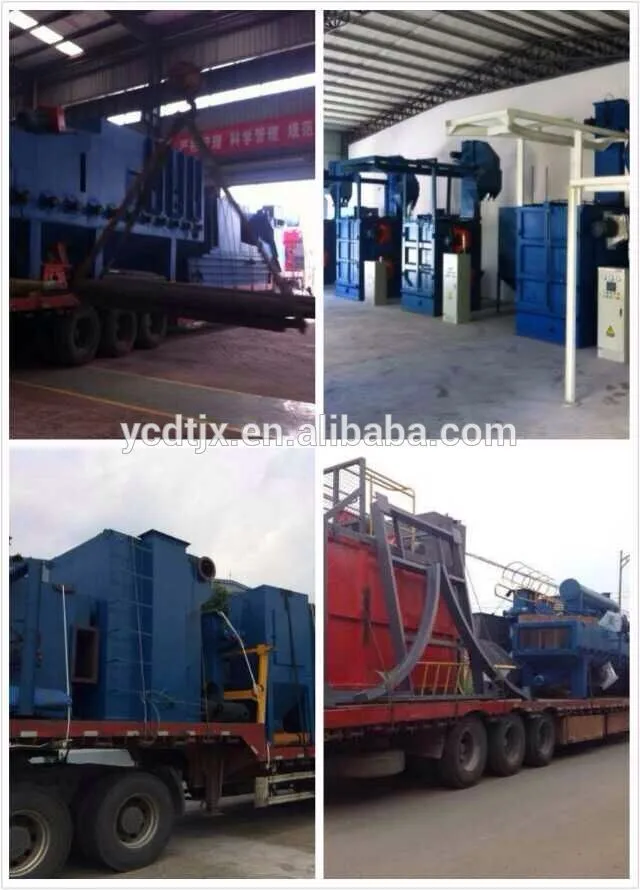

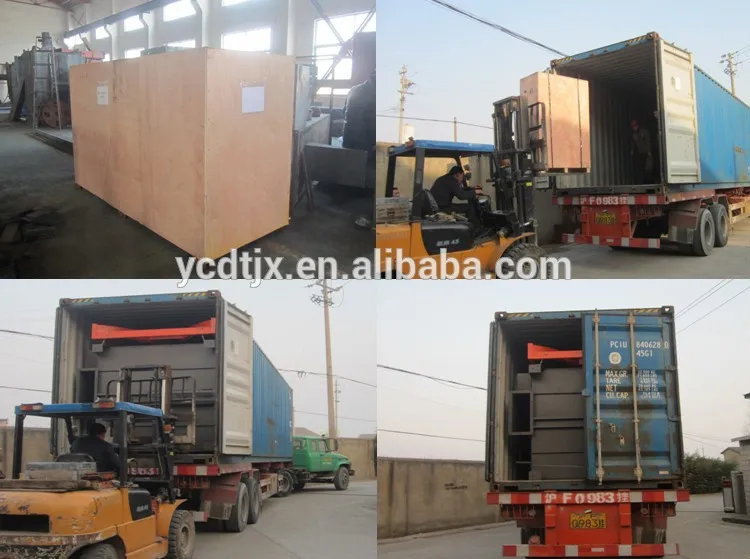

Packing & Delivery

Our Service

1.Reply your inquiry in time.

2. Experienced staffs answer all your questions in time.

3. Customized design is available.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more than 40 years, competitive with good quality.

7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.

If you are interested in this equipment, please don't hesitate to contact us!

If the machine is not suitable for your workpiece, please tell us the following infromation:

1) What kind of workpiece will you clean?

2) The size of workpieces(length, width and height of maximum workpiece,Length, width and height of minimum workpiece?)

3) How many the weight of maximum and minimum workpiece?

4) Please tell us your requirement cleaning efficiency?

According to your infomation, the most suitable machines will be designed for your workpieces.

Company Information

1. one year warranty for machine and spare parts

2. considerate after-sale service and Technial Assistance and freecharge for installing ,debugging and training

3. world class shot blasting machine and foundry machinery

4. OEM

5. Quick delivery/good quality/ competitive price

6. Free charges for installing,training and debugging.

Certification
