Q32 series portable drum-type crawler shot blasting machine/shot blasting machine/equipment

Supplier: Qingdao Binhai Jincheng Foundry Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Xia Liu
Price:
Min. Order: 1 piece

Click here to contact

Product details

Technical parameters

Q32 drum shot blasting machine

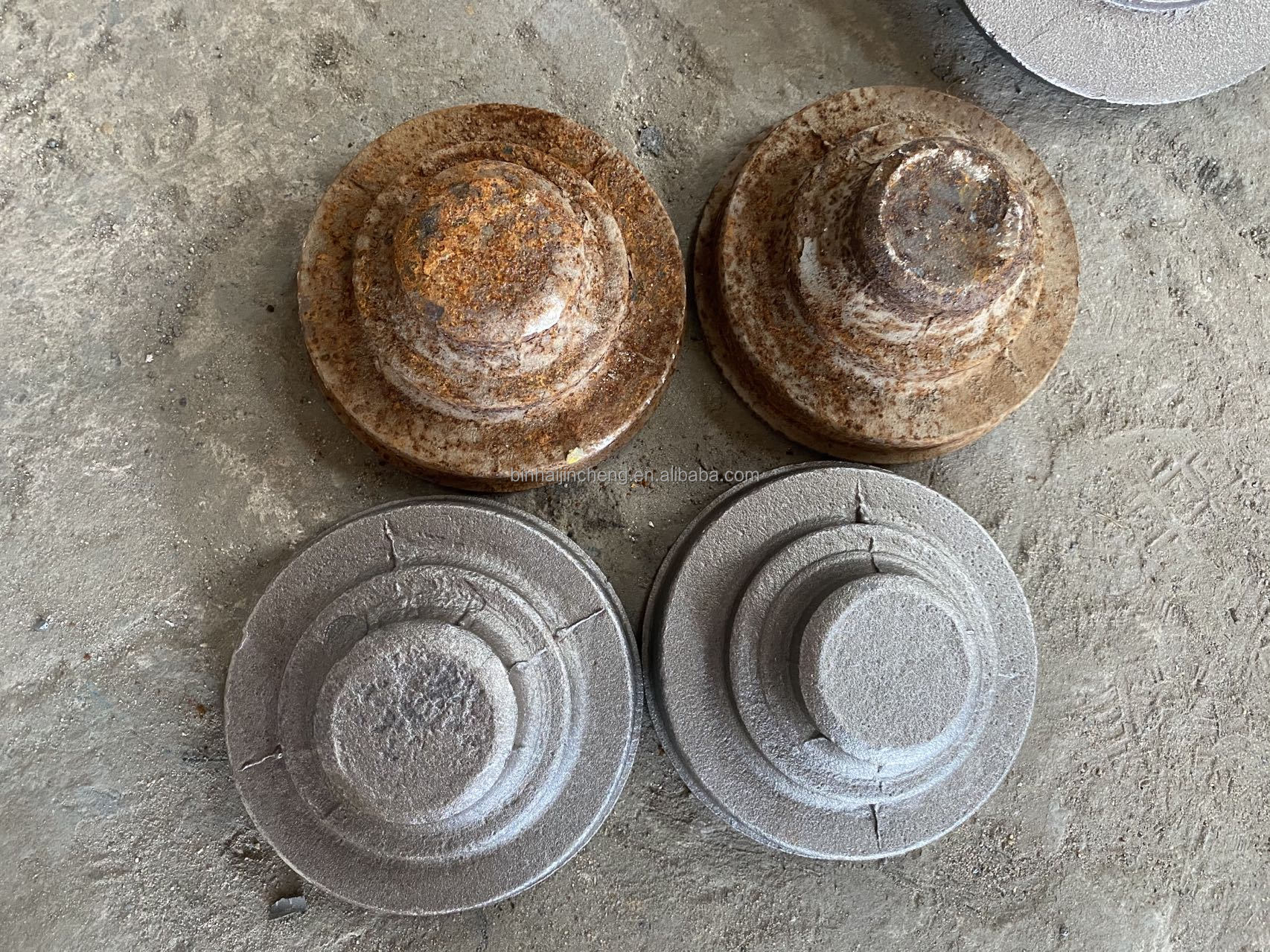

This machine is suitable for surface cleaning or shot peening of various types of parts produced in large and medium batches. Casting or heat treatment workpieces must be able to be impacted and rolled. Machines can work along lines or together.

thing	unit	QR3210ZS
1. Maximum. Single piece weight	Kilogram	30
2. Maximum. Loading weight	Kilogram	600
3. Productivity (gray castings)	kg/hour	1500~2500
4. Belt

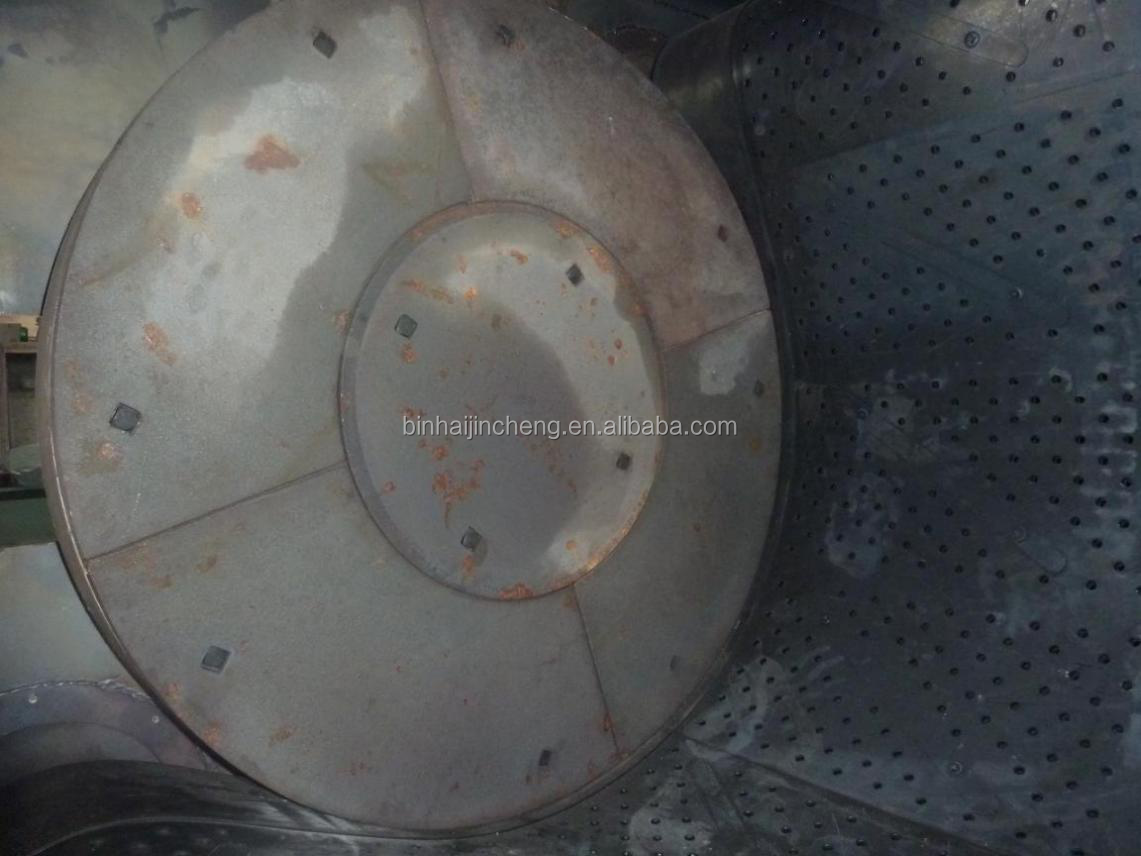

4.1 End disc diameter	mm	φ1000
4.2 End plate speed	RPM	3.5

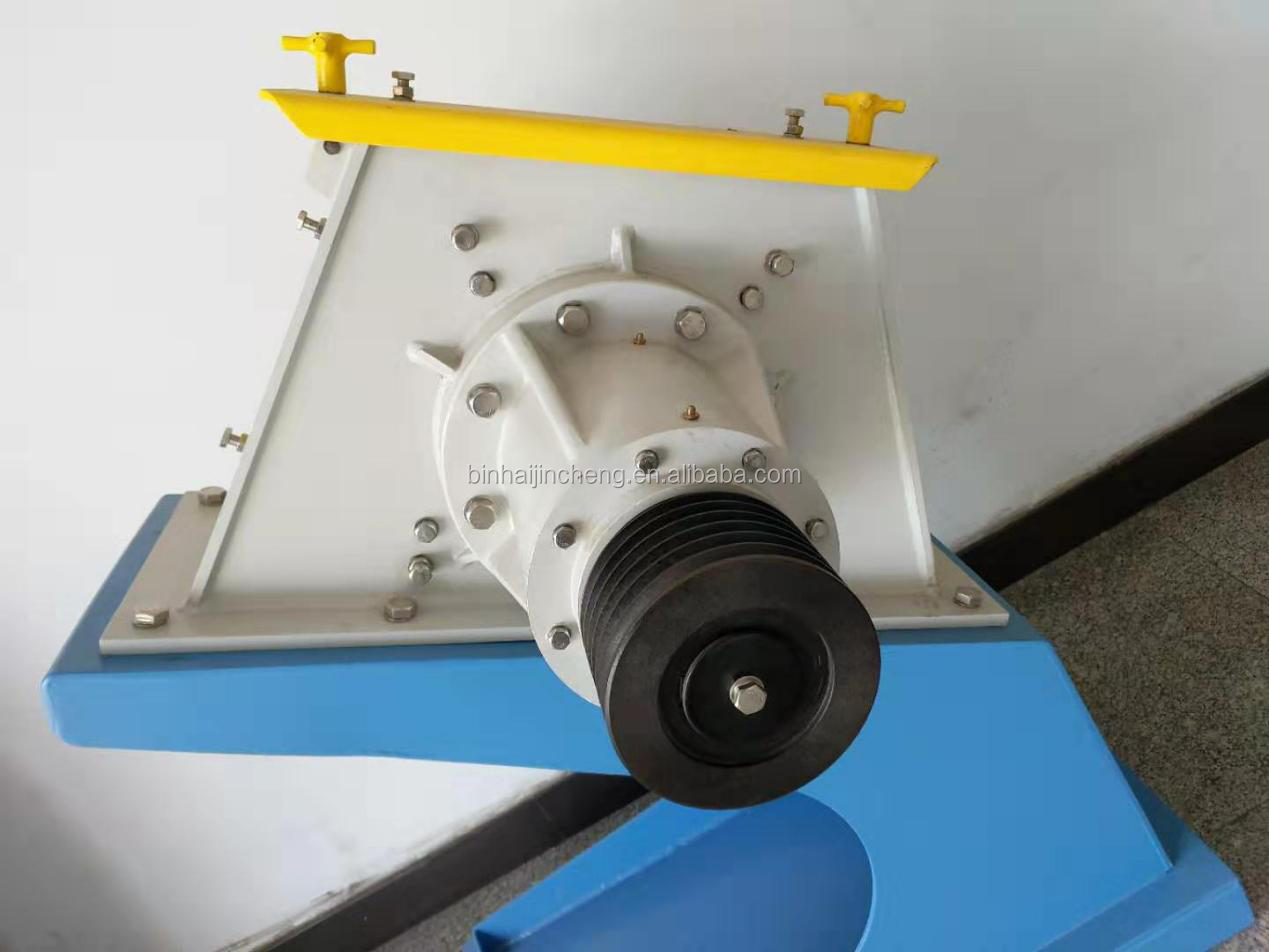

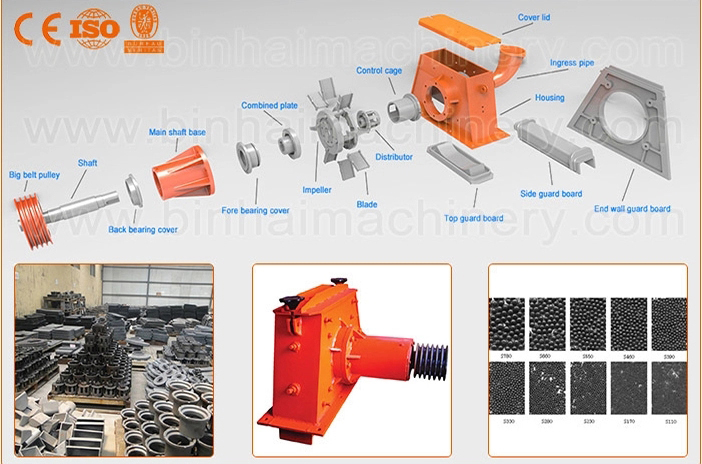

5.Abrasive impeller
Type 5.1		Q037
5.2 Quantity		1
5.3 Impeller diameter	mm	Φ360
5.4 Speed		2500
5.5 Abrasive flow rate	kg/min	250
5.6 Power	kilowatt	15
5.7 Motor type		Y160L-4
6.Belt transmission mechanism
6.1 Transmission speed	multiple sclerosis	0.1
6.2 Motor power	kilowatt	2.2
7. Elevator
7.1 Lifting capacity	tons/hour	16
7.2 Power supply	kilowatt	2.2
8. Separator
8.1 Individual capacity		16
8.2 Air consumption requirements		1000 cubic meters
9.Screw conveyor
9.1 Screw diameter	mm	φ150
9.2 Conveying capacity	tons/hour	>15
10. Hanging door
10.1 Walking speed	mm/sec	180
10.2 Motor power		through cylinder
11.Filling machine
11.1 Maximum loading capacity	Kilogram	600
11.2 Motor power	kilowatt	3
12. Dust collector ventilation volume	cubic meters/hour	3500
13. Fan power	kilowatt	7.5
14.Total power	kilowatt	26.45

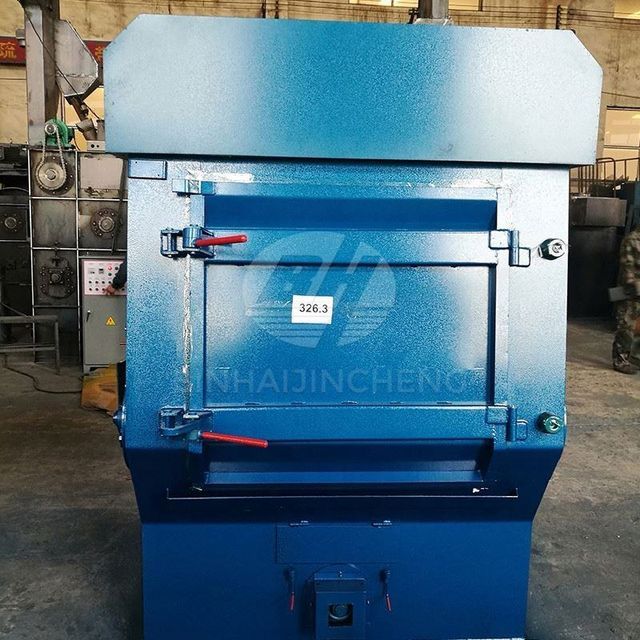

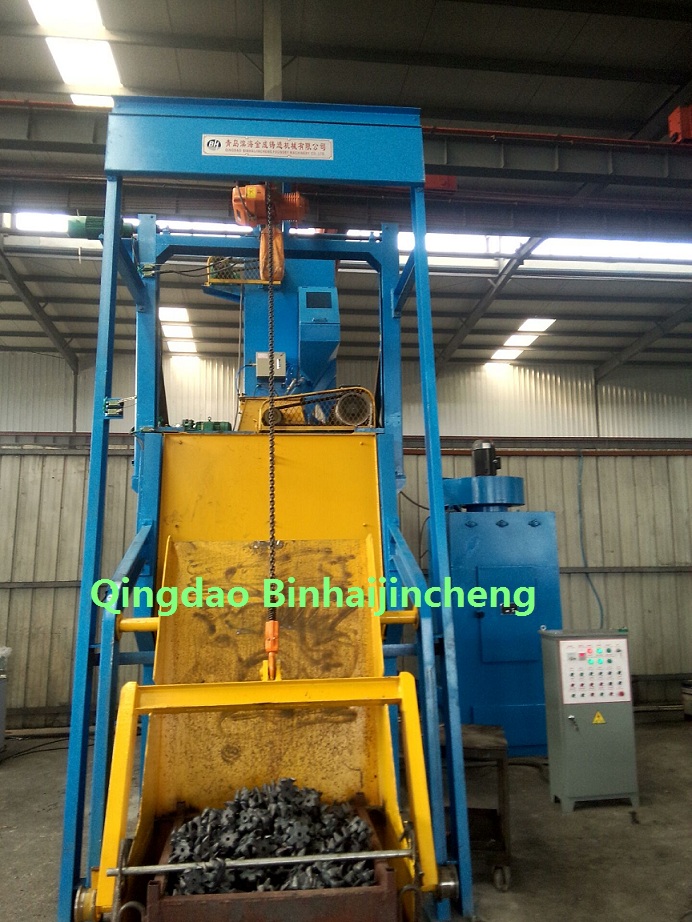

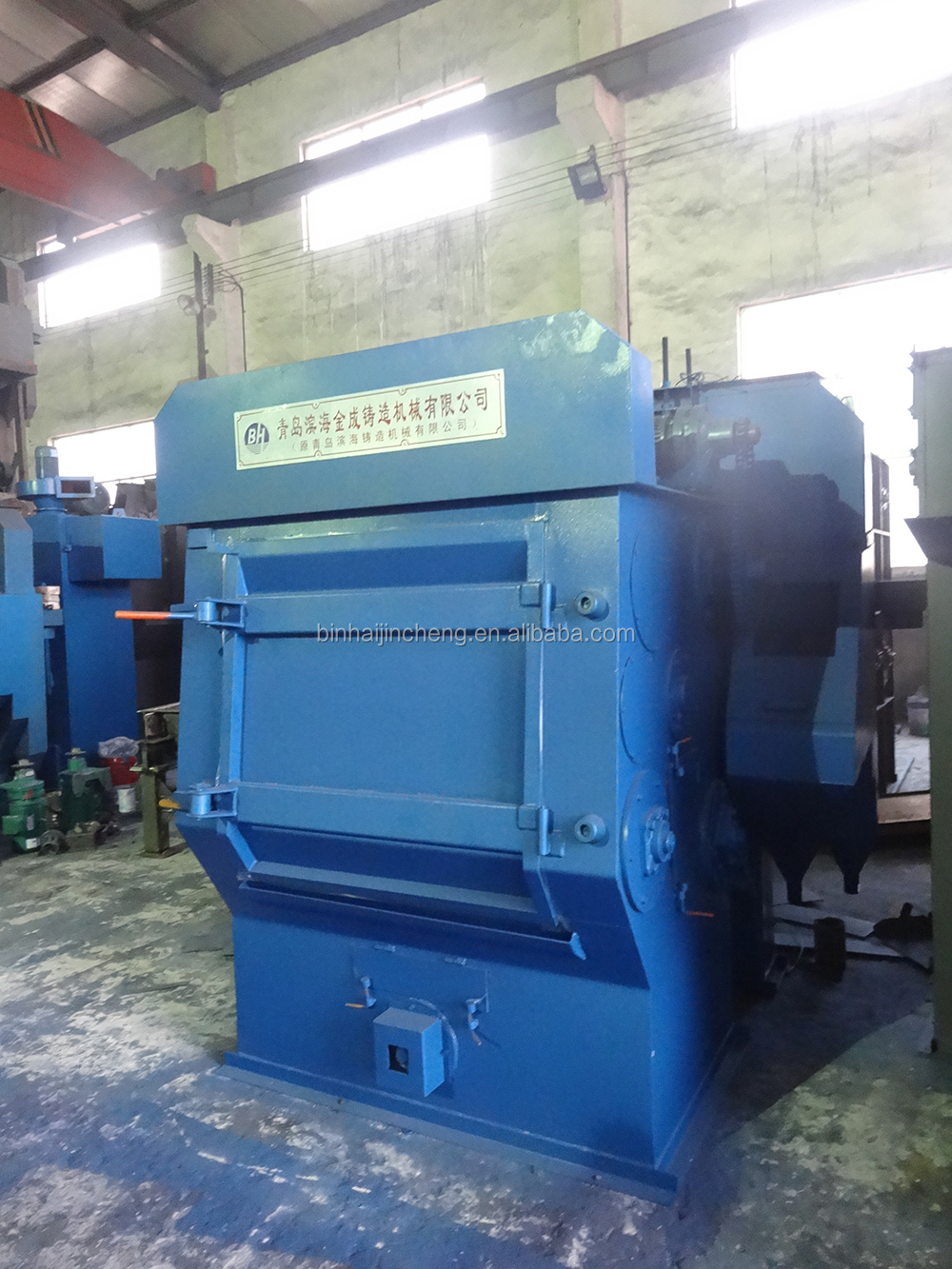

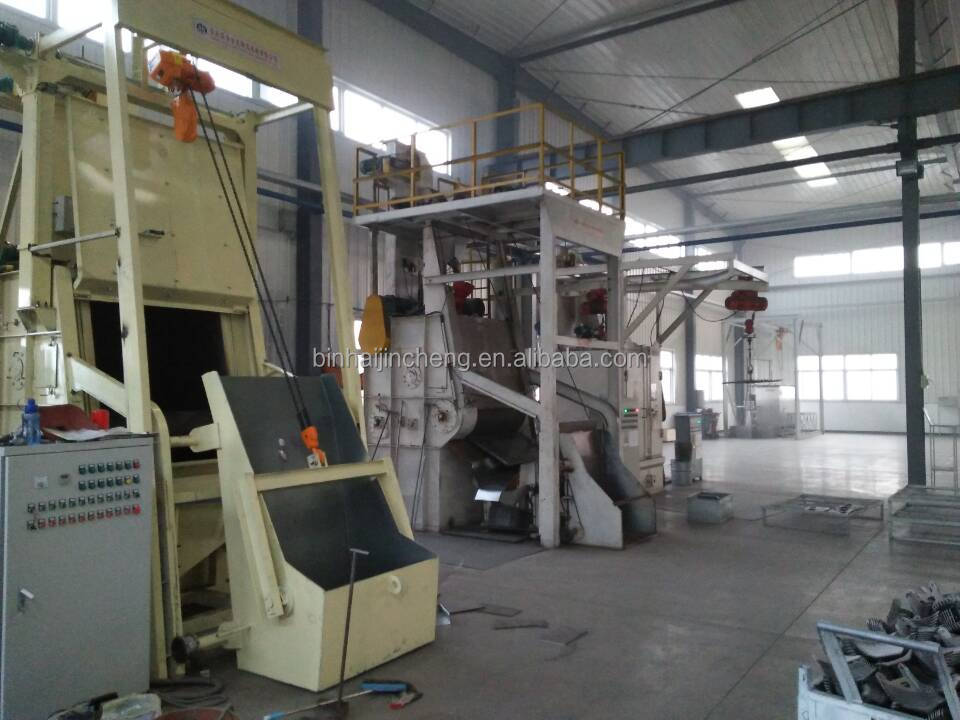

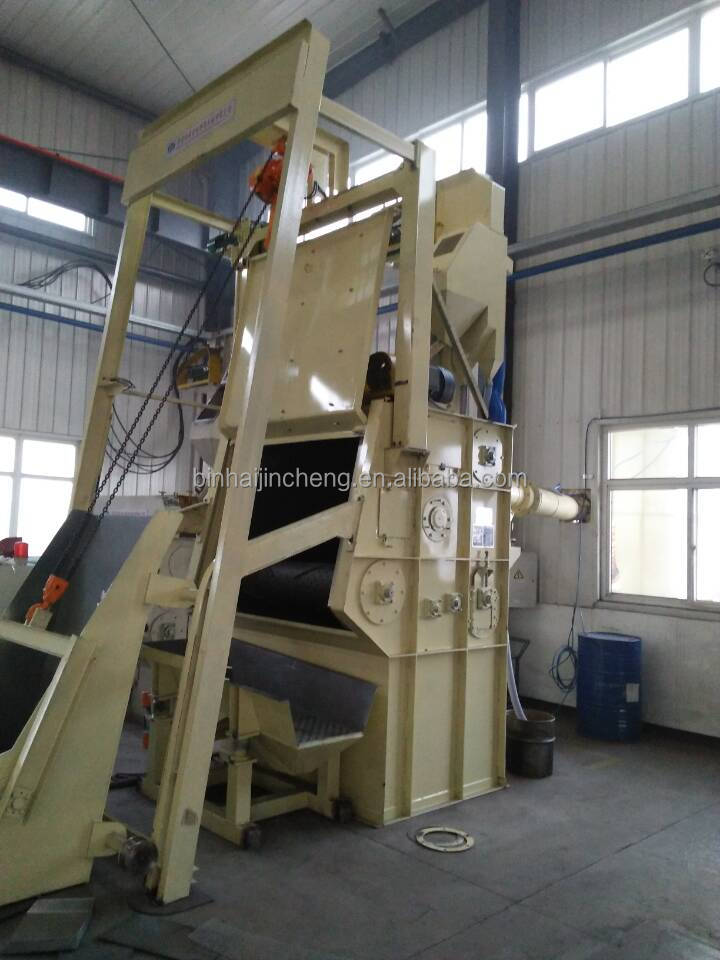

Product display

Our services:

1. The machine has a one-year warranty, except for damage caused by human error.
2. The supplier provides installation drawings, operation manuals, certificates, packing lists...
3. Engineers can go to your factory to guide installation and train your personnel.
4. Always provide technical assistance and friendly help
5. One-stop solution
6.24/7 hours online
7. Timely supply of spare parts
8. The factory door is always open and you are welcome to visit
9. Free and fast solution design
