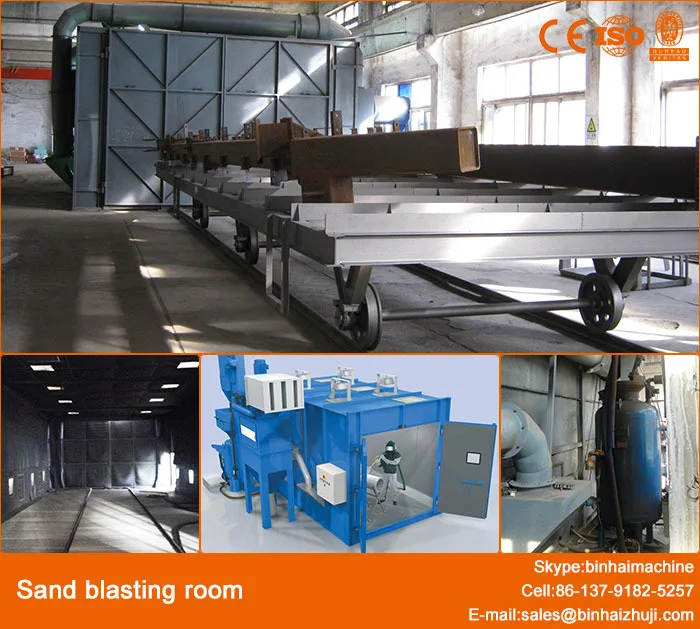

Air Sand Shot Blasting Room/Sand blasting Chamber /abrasive blasting cabinet for metal parts

Features:

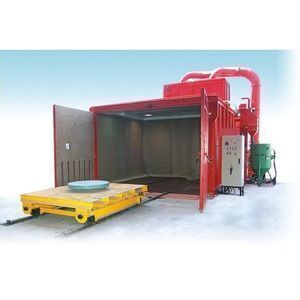

Large structures can move inside the Blast Room on work cars sliding on rails.

Mainly composed

with the Blasting Room, Air Blasting System, Sand Circulatory System, Dehumidify System and Dust

Collector.

1.Blast Room Enclosure Size

Enclosure size is determined by the size of the largest part that will be blasted. Standard sizes range

from 8' by 8' square to 20' wide by 40' deep and up to 16' tall. Custom, larger sizes are available.

2.Material Handling Method

Parts are transported according to your plant operations and part specifications. Options for loading

parts into the blast chamber include forklift, work car on rails, dedicated monorail or overhead crane.

3.Work Door Configuration

The type of doors is determined by the material handling method, part size, plant operations and

budget. Door options include: double swing doors, roll-up doors and sliding doors. Drive through

systems with doors on both ends are available.

4.Abrasive Reclaim System

The reclaim system is determined by the type of abrasive being used, (screw conveyor vs.vacuum

reclaim), your production requirements and budget. Full reclaim floors are more costly but provide

continuous automatic recycling of abrasive. Partial reclaims and corner boxes require the operator

to sweep the abrasive to the reclaim system. If your parts are to be handled by forklifts, the reclaim

system must accommodate heavy floor loading.

5.Control system

PLC control, Error warning system on abrasive circle system, any error come, ll the above work will

stop automatic.Control function under Automatic control, hand controller and maintenance states will

be control, so there are cascading protection feature among each process.

6.dust remove system

Abrator dust stream generated when working through the primary separator and connecting pipe,

and then flow into the deposition of dust box, large particles are deposited, a small pipe into the dust

and then by pulse jet bag filter. Emissions of dust concentration after not more than 80mg/m3, in line

with the provisions of the National Environmental Protection Agency emission standards not higher

than 120mg/m3.

7. Shot distributing system

This machine adopts the patented shot valve produced of our company; it can accumulate a certain

time in blast-peening, through the manual control to provide the shot ball to the blast-peening device.
