Q326/3210 shot blasting machine with ruber belt

Supplier: Qingdao Binhai Jincheng Foundry Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Xia Liu
Price: $4000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Cleaning Process:	steel grit,steel shot;	Use:	Burnishing,Descaling / Stripping;
After-sales Service Provided:	Video technical support;	Dimension(LWH):	As design;
Warranty:	1 Year;	Port:	Qingdao;
Condition:	New;	Local Service Location:	Viet Nam,Russia,South Africa;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining;	Cleaning Type:	shot peening,shot blasting;
Name:	Shot Blast Cleaning Machine;	Place of Origin:	China;
Marketing Type:	Hot Product 2019;	Package Preview:	;
Payment Terms:	L/C,T/T,Western Union;	Core Components:	PLC,Bearing,Pressure vessel;
Blast wheel:	Low Noise Level;	Blasting media:	Steel Grit;
Color:	Customers Requirement;	Supply Ability:	300 Set/Sets per Month;
Key Selling Points:	Competitive Price;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Machine Type:	Abrator;	Showroom Location:	none;
Dust collector:	Bag Dust Collectors;	Blast chamber:	Structural Steel;
Video outgoing-inspection:	Provided;	Certification:	ce,GS;
Application:	Metal Cleaning;	Packaging Detail:	standard sea-worthy package;
Machinery Test Report:	Provided;	Brand Name:	BINHAI;
Power:	23.5;	Warranty of core components:	1 Year;
Weight (KG):	22000 KG;	Material:	Metal / Coil;
Fuel:	Electric;

Tumble q326 shot blasting machine/qr3210 shot blasting machine with steel shot

Product Description

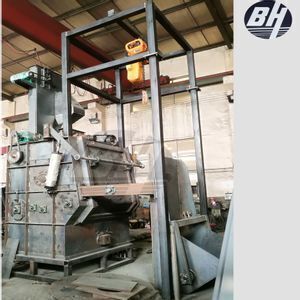

Q32 Tumble Belt Shot Blasting Machine

This type machine suit for surface cleaning or peening many kinds part with large and medium volume

production, The casting or heat treatment work piece must be can impact and roll. Machine can work along or

work together in a line.

Technical Parameter

Items	Units	Q326C	QR3210
Productivity	t/h	0.6-1.2	1.5-2.5
Feeding amount	kg	200	600
Maximum weight of single piece	kg	10	30
Diameter of end disk	mm	φ650	φ1000
Effective volume	m³	0.15	0.5
Abrasive flow rate	kg/min	120	260
Ventilatio capacity	m³/h	2200	5000
Power consumption	kw	12.6	24.3
Out line dimention	mm	3681x1650x4200	3972x2600x4768

Q326 Advantages

1. Blast wheel motor

Use ABB motor, good sealing, good dynamic balance, stable and reliable performance.

2. Blast wheel advantage:

Wheel shell: 10mm carbon steel;
Top board: die-steel with CNC precision machining
End board: High wear resistant manganese 13 steel plate
Side board: die-steel with CNC precision machining
Impeller: die-steel with CNC precision machining, after machining,adopt low-pressure vacuum heat treatment, the surface hardness can reach hrc5862.

3. Blast chamber

Welded with all manganese steel.
The top is equipped with a three-layer sealing structure to prevent the steel shot from leaking.

Packaging & Shipping

Company Information

Binhai Jincheng Foundry Machinery Co.,Ltd

* More than 30 year experience in foundry machine industry;

* 10 skillfull technical engineers;

* More than 100 experienced workers.

* Occupy 30% of China local market with good reputation.

* Design, research, develop and produce shot blasting machines,sand blasting rooms, sand processing equipments, environmental protection equipment, etc.

* OEM & ODM service is available.

Best-selling blaster

* Tumble belt blaster

* Steel track blaster;

* Steel plate blaster;

* Steel pipe blaster;

* Tilting drum shot blaster;

* Single hook/double hooks blaster;

FAQ

If you want to buy shot blasting machine, Please indicate the following details:

1) What kind of workpiece will you clean? Material?2) The size of it, length, width and height of maximum workpiece? Length, width and height of minimum workpiece?

3) How heavy is each workpiece? Especially the weight of maximum workpiece?4) How many tons will you clean for each month or each day?

After getting your informations, the detailed technical parameters will be sent to you for your reference.Note:As we are an integrated company, we sell our products direct to customers without any extra

agent charges. Hence, our price is relatively lower than others. Moreover, we are using the most

advanced equipment and technology in order to produce high quality and more professional.

One. How many days do you need to produce this machine?

This is specially designed machine according to your specific requirement. From engineers designing to production completion, it needs about 30-40 days.

Two. What does your factory do regarding quality control?

We pay much attention to quality control from the very beginning to the end. Each machine is assembled and carefully tested before shipment.

Three. What’s your machine quality guarantee?

Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.

Four. Could you give installation and commissioning overseas? How long will it take?

Yes, we supply overseas service, but customers need to pay for the engineers flight tickets and hotel, food.Small machines usually takes 5 days, while large machines usually takes about 20 days.

Five. How can I trust you to deliver the right machine as I ordered?

We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency.
