twin bamboo chopstick making machine

Supplier: Zhejiang Shengzhou Hongda Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Jane zhang
Price: $11000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Local Service Location:	None;	After-sales Service Provided:	Engineers available to service machinery overseas;
Automatic Grade:	Automatic;	Port:	ningbo;
Applicable Industries:	Hotels,Restaurant,Food Shop;	Place of Origin:	Zhejiang China;
Payment Terms:	L/C,T/T,Western Union;	After-sales Service Provided:	Video technical support,Field installation, commissioning and training;
Brand Name:	hongda;	Showroom Location:	None;
After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;	Condition:	New;
Packaging Detail:	plywood box;	Voltage:	380V;
Supply Ability:	20 Set/Sets per Month;	Warranty:	1 year;

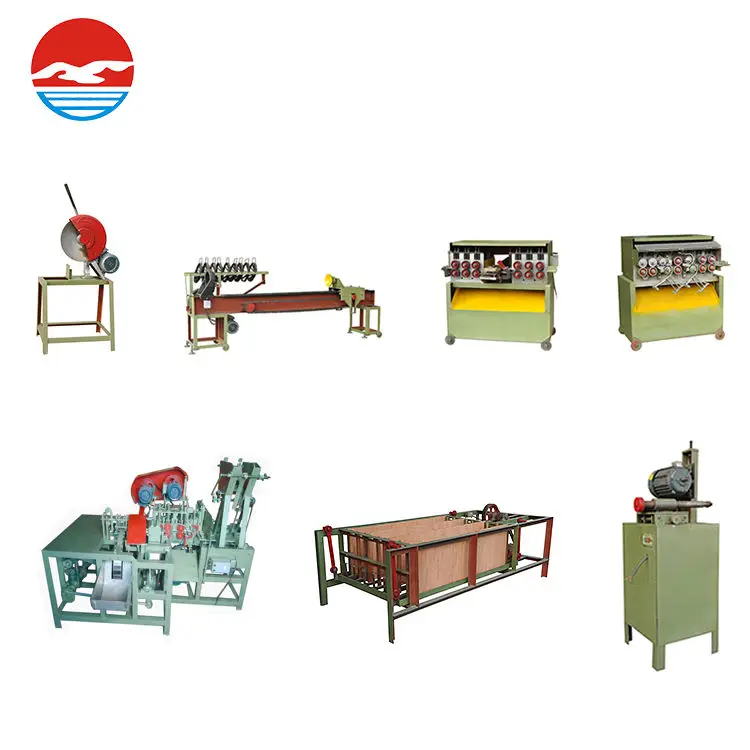

1.Introduction of machines

No.	Name	Power(kw)	Weight(kg)	Outside Dimension (m)
1	sawing machine	1.5	60	1.0x0.6x1.2
	Description: This machine is used for severing original bamboo into certain length section. it's better the length of round bamboo section is little longer than you chopstick.
2	bamboo dissection machine	4.00	800	3.3x0.8x1.1
	Description:split the bamboo raw into small pcs
3	Flaker	2.2x3	500	1.6x0.7x1.2
	Description:smooth and square the wide of the bamboo small pcs to get the rough blank
4	The bamboo chopstick wash the base machine	3.0x2 1.1	400	1.0x0.7x1.2
	Description: This machine is used for cutting bamboo section into pieces. The width of pieces depend on the thickness of chopstick
5	bamboo base set -size machine	0.75kw	200	1.5x0.8x1.0
	Description: This machine is used for definite the length of chopstick..
6	Multiple function Twin chopsticks shaping machine	2.2	300	1.8x0.7x1.3
	Description: This machine is used for separeting the bamboo piece and then the bamboo piece becomes a pair of connected chopstick
7	The twin chopsticks pare the sharp machine	0.55kw1 / 0.75kw1	250	1.5x0.9x1.3
	Description: This machine is used for pointing the head of chopstick.
8	polishing machine	2.2	400	2.6x1.1x1.1
	Usage: This machine is used for polishing chopsticks.

2.How to make the chopstick process

severing round original bamboo into certain length - cutting halves ( manually) - cutting the half bamboo piece into small pieces - severing the small pieces according to chopstick's length - separating chopstick piece into one pair of connected chopstick - pointing the head of chopstick

3.Part of Photo of machines and production
