Automatic bamboo toothpick making machine

Supplier: Zhejiang Shengzhou Hongda Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Jane zhang
Price: $9855.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	ningbo;	Warranty:	12MONTHS;
After-sales Service Provided:	Engineers available to service machinery overseas;	Condition:	New;
Payment Terms:	T/T;	Place of Origin:	Zhejiang China (Mainland);
Brand Name:	Hongda;	Packaging Detail:	plywood cae;
Voltage:	380V;	Supply Ability:	15 Set/Sets per Month;

*Introduction of the machines

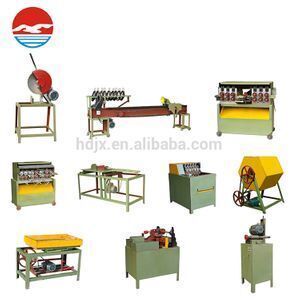

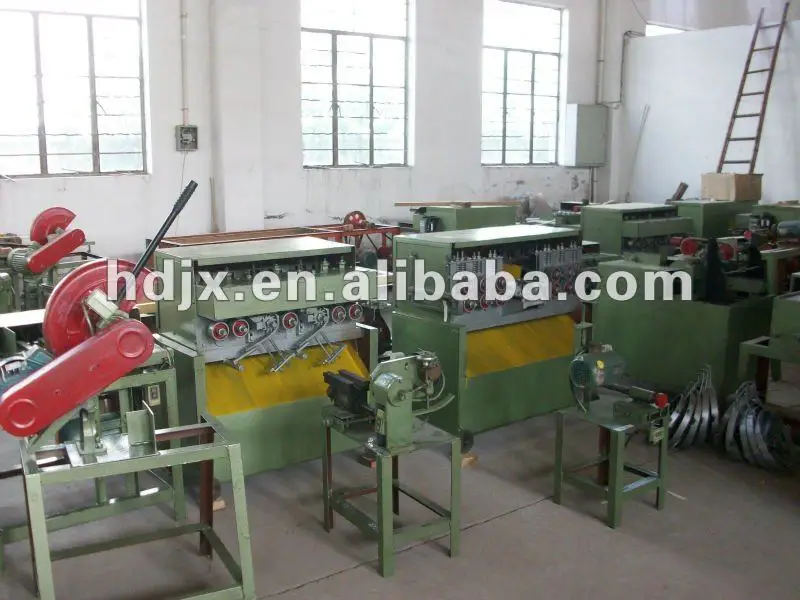

This production line is composed of these 10 machines above, which are able to produce bamboo toothpick .And the total output is 600,000-800,000 pieces/8hrs, this production need about 4-5 person to operate. total volume is about 11cbm

Name	Power (kw)	Weight (kg)	Out size (cm)
Saw machine	1.5 X1	50	82X62X115
Bamboo split machine	4.0 X1	500	310X78X135
fix thick and definitely wide flaker	2.2×3	250	115X66X110
Bamboo filament shaping machine	3.0×2 1.1X1	350	115X70X110
Bamboo filament set-size machine	0.75 X1	150	160X78X90
Toothpick stick set size machine	2.2×1 0.55×1	200	88X83X92
Polishing machine	2.2X1	200	150X150X100
Ordering machine	0.55x1	80	100X70X80
Toothpick sharpen machine	1.1x2 0.55x1	250	74X100X100
Multi-sharpen machine	0.37X1	50	50X60X50
Total (FOB ningbo by LCL )

* Machine function

1.sawing machine (bamboo)

sawed 400mm*160T,used for feeding and cutting bamboo, better length is 1-1.2m

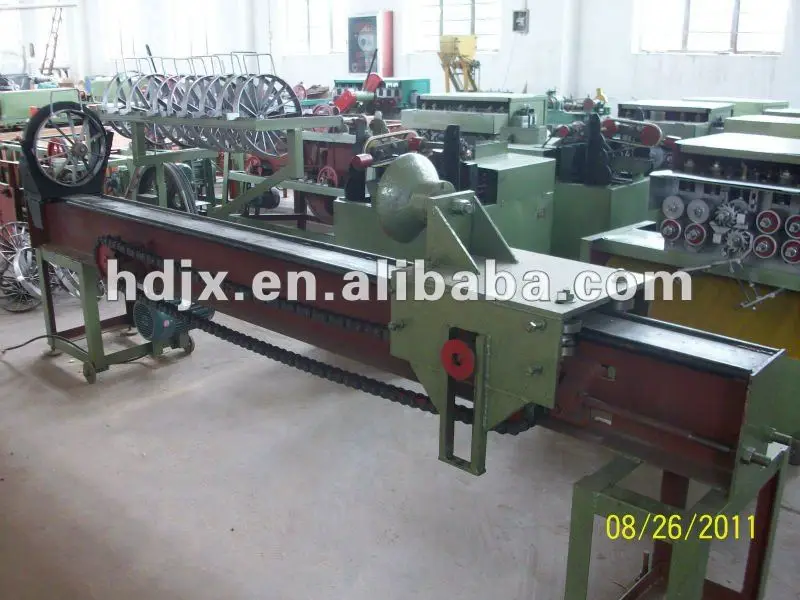

2. Bamboo split machine

dissection cutter head(9-18heads)total 10,put the finished bamboo into the suit cutter headaccording to the size and polish them into bamboo flakes, width from 20mm to 22mm,speed of feeding is 57m/min

3. fix thick and definitely wide flaker

put the polished bamboo flakes into this machine and make it to be square and straight every side, width from 18-20 mm, width of flaker is 3-4mm,speed of feeding is 87m/min

4. Bamboo filament shaping machine

molding the diameter of the bamboo filament as your request ,speed of feeding is 87m/min

5. Bamboo filament set-size machine

set uniform length of the stick ,as usual 5 or 6times of toothpick length

6.toothpick set size machine

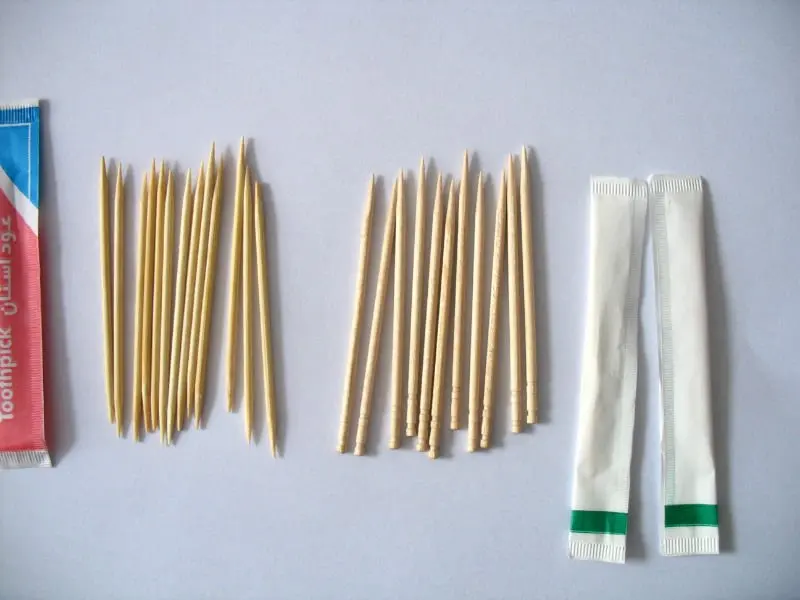

cut the long stick into 65mm ,standard length of toothpick

7.Polishing machine

polish the raw stick after set-size

8.orderting machine

Order the stick from polishing machine ,easy for worker to pick them into sharpen machine

9.toothpick sharpen machine

Sharpen two tips or one sharpen one carve head

10 . Multi-sharpen machine
