6090 digital printing machine price phone case printing machine uv printer

Product details
Ink channel:18 channel of this uv printer;Place of Origin:Shanghai China;
Color & Page:MULTICOLOR;Weight:260KG;
Brand Name:FocusInc;Print Dimension:60*90CM;
White ink:Available on dark media;Plate Type:uv printer;
Port:Shanghai;Product name:6090 phone case printing machine uv printer;
Dimensions(L*W*H):140CM*140CM*90CM;Usage:Bill Printer,Card Printer,Cloths Printer,Label Printer,Paper Printer,Tube Printer,phone case printing machine uv printer;
Rip software:FocusRIP/ RIPrint;Automatic Grade:Automatic;
Condition:New;Max. printing size:60*90cm;
After-sales Service Provided:Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;Voltage:110V/220V;
Warranty:1 year;Cooling system:Water circulation cooling system;
Applicable Industries:Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Home Use,Retail,Printing Shops,Construction works ,Advertising Company;Ink Type:UV curing hard/soft ink;
Packaging Detail:6090 digital printing machine price phone case printing machine uv printer packed as below: 1. 160CM*160CM*118CM packing size. 2. Export standard wooden package. 3. By sea, Airbus, Express available.;Supply Ability:185 Set/Sets per Month of phone case printing machine uv printer;
Body:Thicken Aluminium Profile;Ink:UV ink, Eco solvent ink, DTG ink;
Color model:18 Color uv printer;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Print head:DX5/DX7/XP600/Tx800 Micro piezo head;Certification:CE EMC LVD SGS;

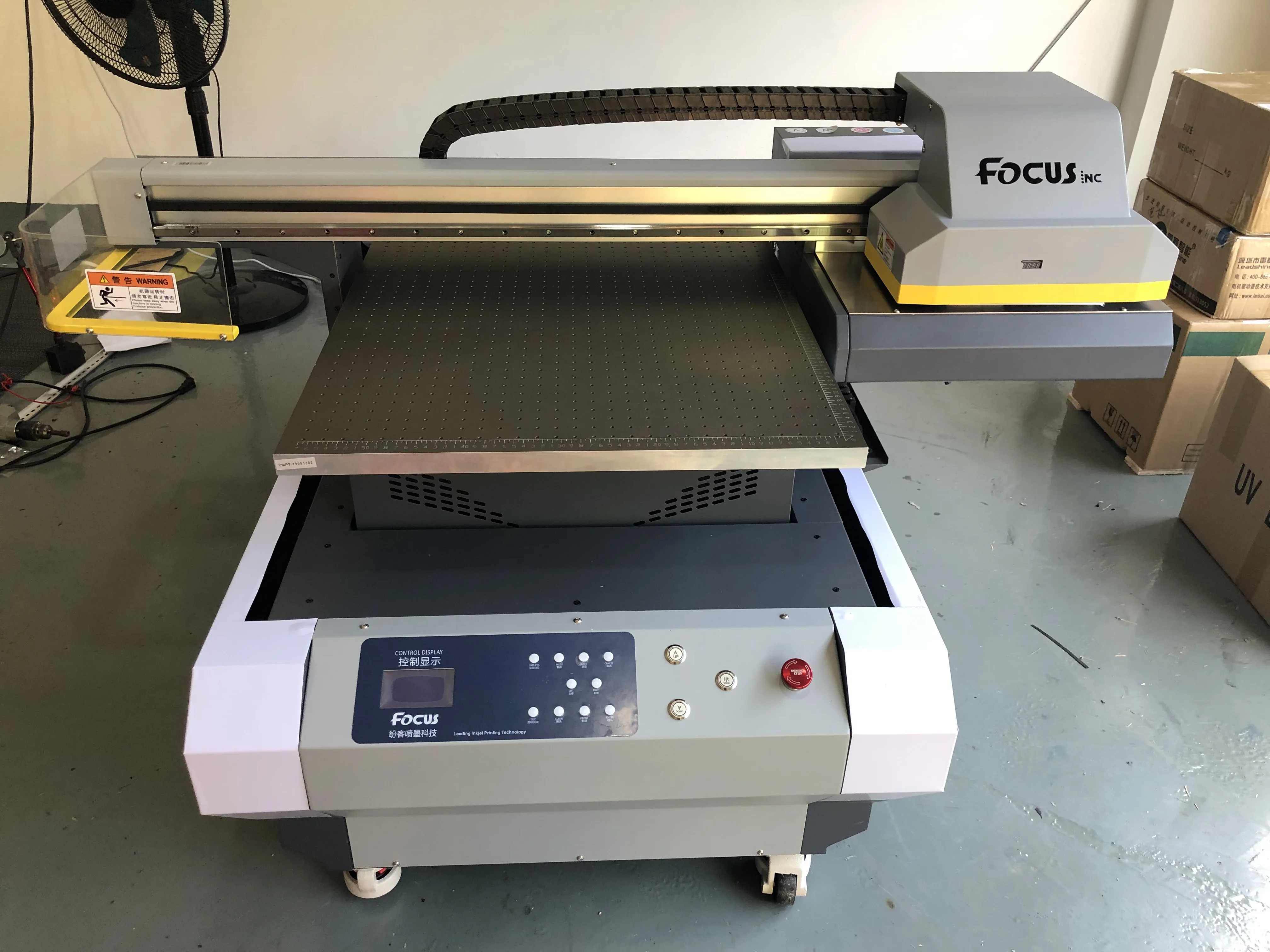

6090 digital printing machine price phone case printing machine uv printer





6090 digital printing machine price phone case printing machine uv printer which is a multi functional LED UV flatbed printer that created by Focus industrial co.,ltd.  UV printer was built with industrial configuration as thicken aluminum profile, water circulation cooling system, 100W automatic detect UV Curing system... 8 color or 16 color and max. 5760 dpi printing resolution. Can print on bend, cylinder objects, balls and bottles. Output with good 3D texture printing result...



Specification



Model   6090 digital printing machine price phone case printing machine uv printer
LED-UV FunctionUV lamp system6 Power degree adjustable system
UV Power100W
UV lamp life time50000hours
UV light wavelength390-400nm
Light power500mw/w
Cooling typeWater circulation
Cooling adjustmentAutomatic on/off between 25-30c
Control SoftwareFocusRIP/Ultra RIP/RIRprint
Repeat printing precisionOverlap small than 0.1mm
Head maintainHead clean during/after printing, Keep-wet system when idle.
Ink systemInk damper refill system
Max. printing sizeA1: 600mm*900mm
Print headDX5/DX7/XP600/Tx800 Micro piezo head
Print colorCMYKLcLm+WWWWWW+Varnish
Print directionUnidirection / Bidirection
Print speedA2(1440dpi)/ 165s
Max. media thickness18CM
Max. media weight20KG
Max. printing resolution5760dpi*2880dpi*1440dpi*720dpi
Ink volume500ML
Ink typeUV environmentally ink
Height adjustableManual / Automatic
Print head protectionIntellective automatic detect
Working power110-220V 50-60HZ
InterfaceUSB2.0 /USB3.0/IEEE1394
System requireWindows XP / Win7 / Win8/ Win10
Working enviroment25-30C, 50% Humidity, Dust free
Net weight/Gross weight260KG/380KG
Printer size140CM*140CM*90CM
Packing size160CM*160CM*118CM
Video Demo

Online video demo of 6090 digital printing machine price phone case printing machine uv printer:  https://youtu.be/JHMwNSKsYu0



Technical features



1. 6090 digital printing machine price phone case printing machine uv printer has space saving design to let customer can lay machine on a small room. Outlook of the flatbed printer with dust free design. The new design reduces the environmental impact on equipment.



2. Fast printing speed by print on A2 size with full color of UV flatbed printer only need 165 seconds.

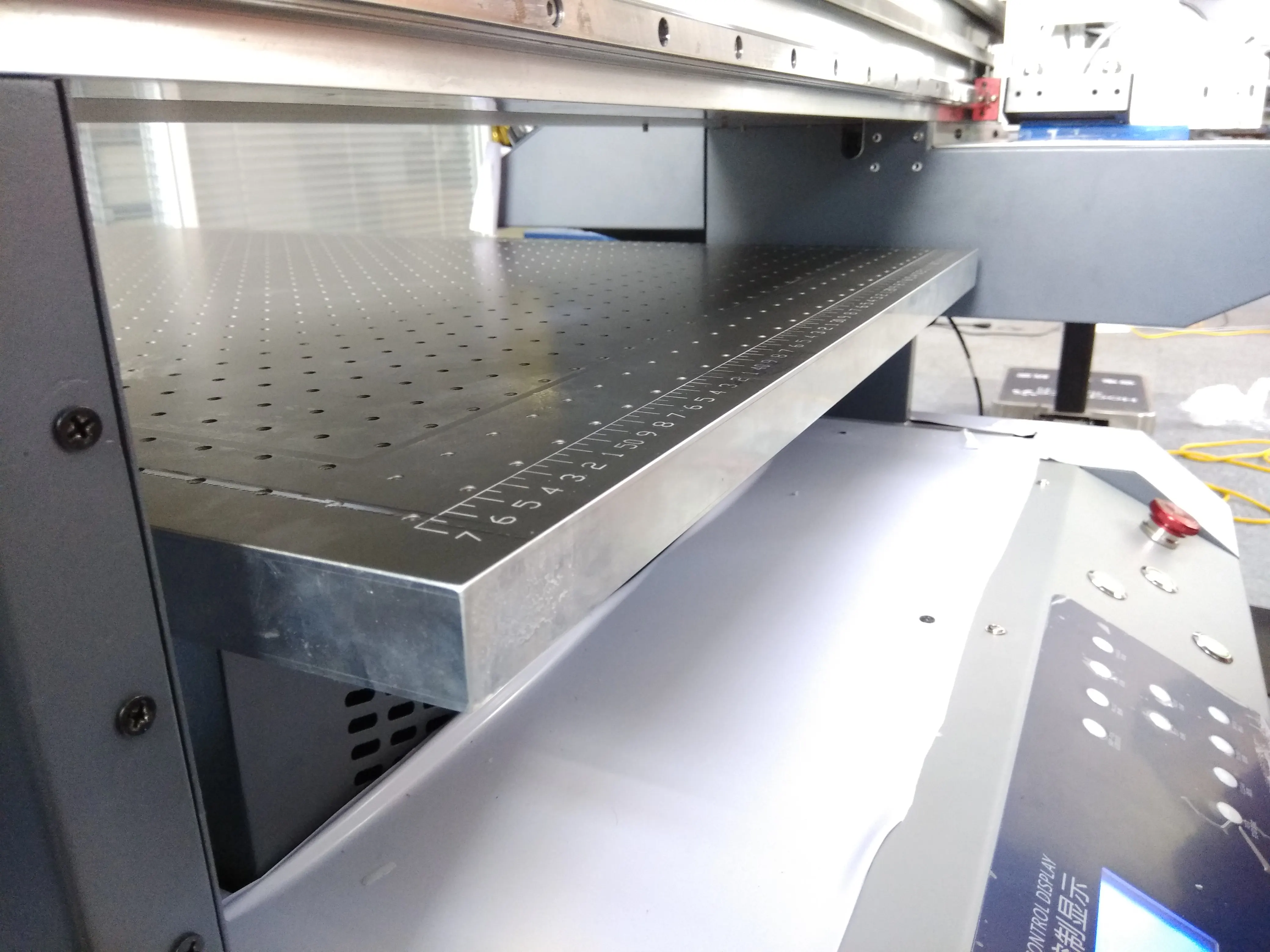

3. Super table size of 6090 digital printing machine price phone case printing machine uv printer, cooled head ensure you can print on any media with max. 60*90cm printing area.

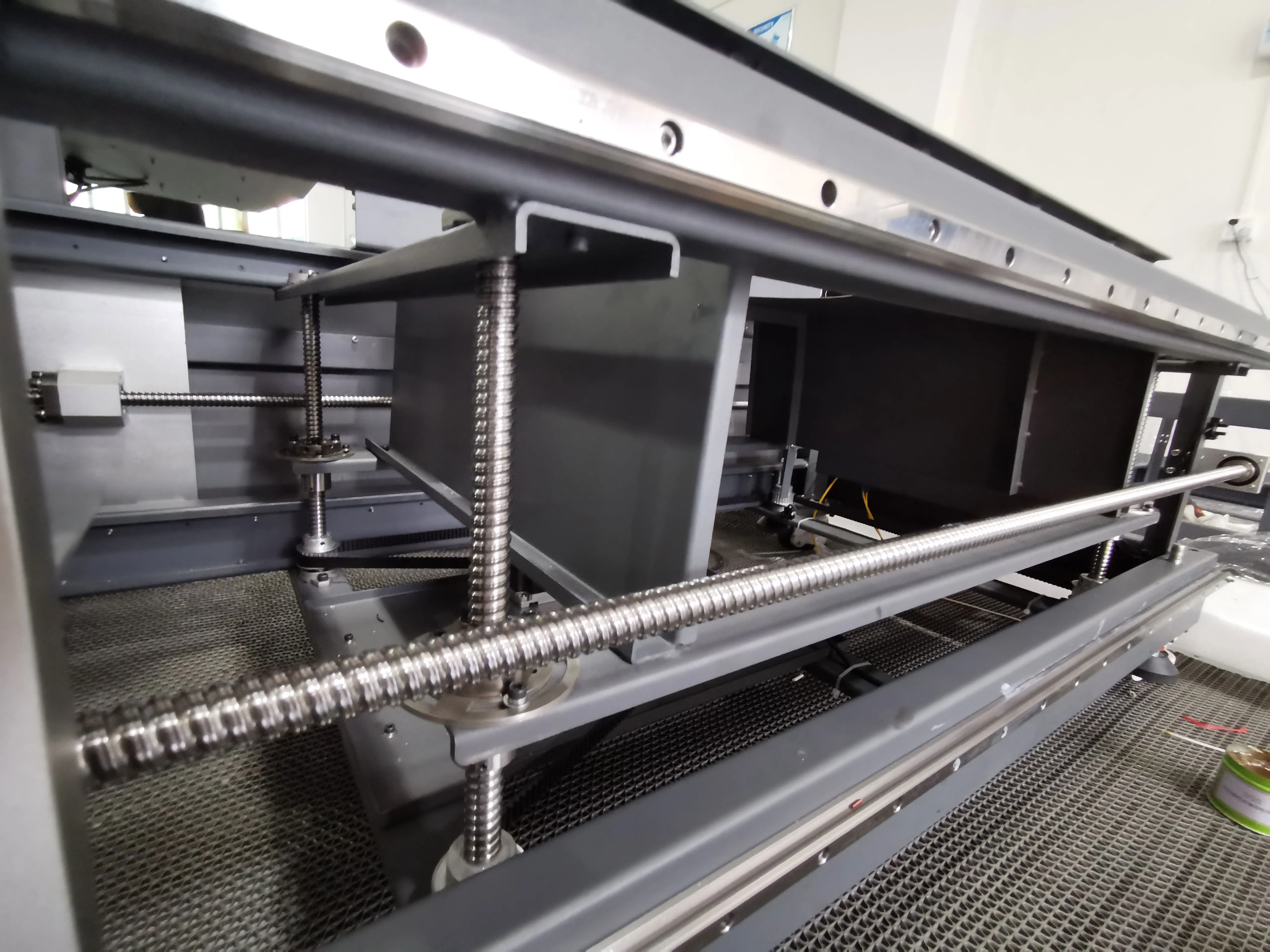

4. Thicken aluminium profile of this 6090 digital printing machine price phone case printing machine uv printer made as the keel of the machine to ensure the machine stable working.

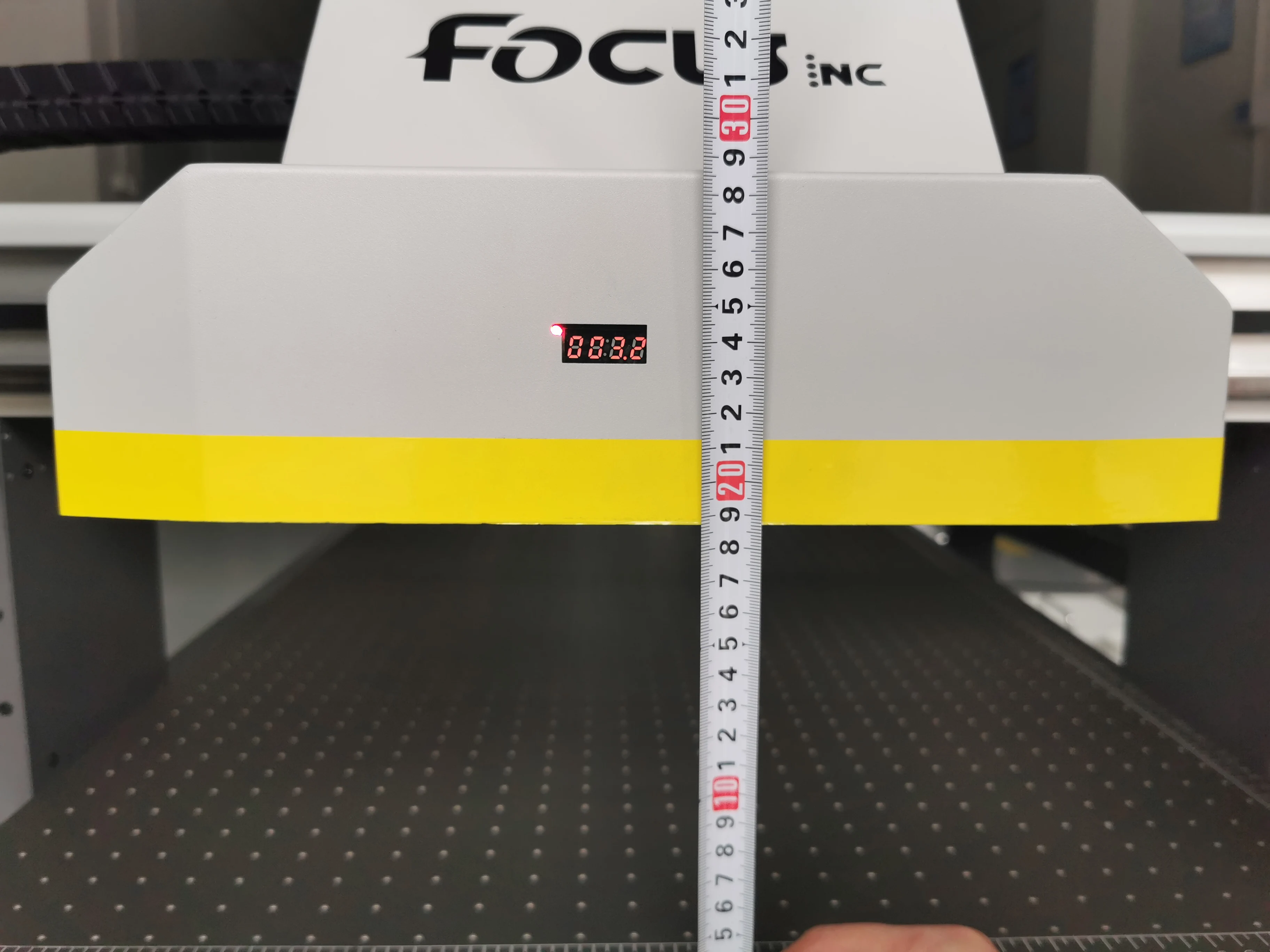

5. 6090 digital printing machine price phone case printing machine uv printer water cooled head support max. material thickness 18 cm. expand more printing area for customer.



6. Modularized design of the flatbed to ensure the fast Focus-Pallet-Add-onfamily  exchanging procedure for get a mass production.



7. Intelligent Anti-Scratch-Protectionsystem   can detect the media by both red ray sensors to prevent the print head from scratching.

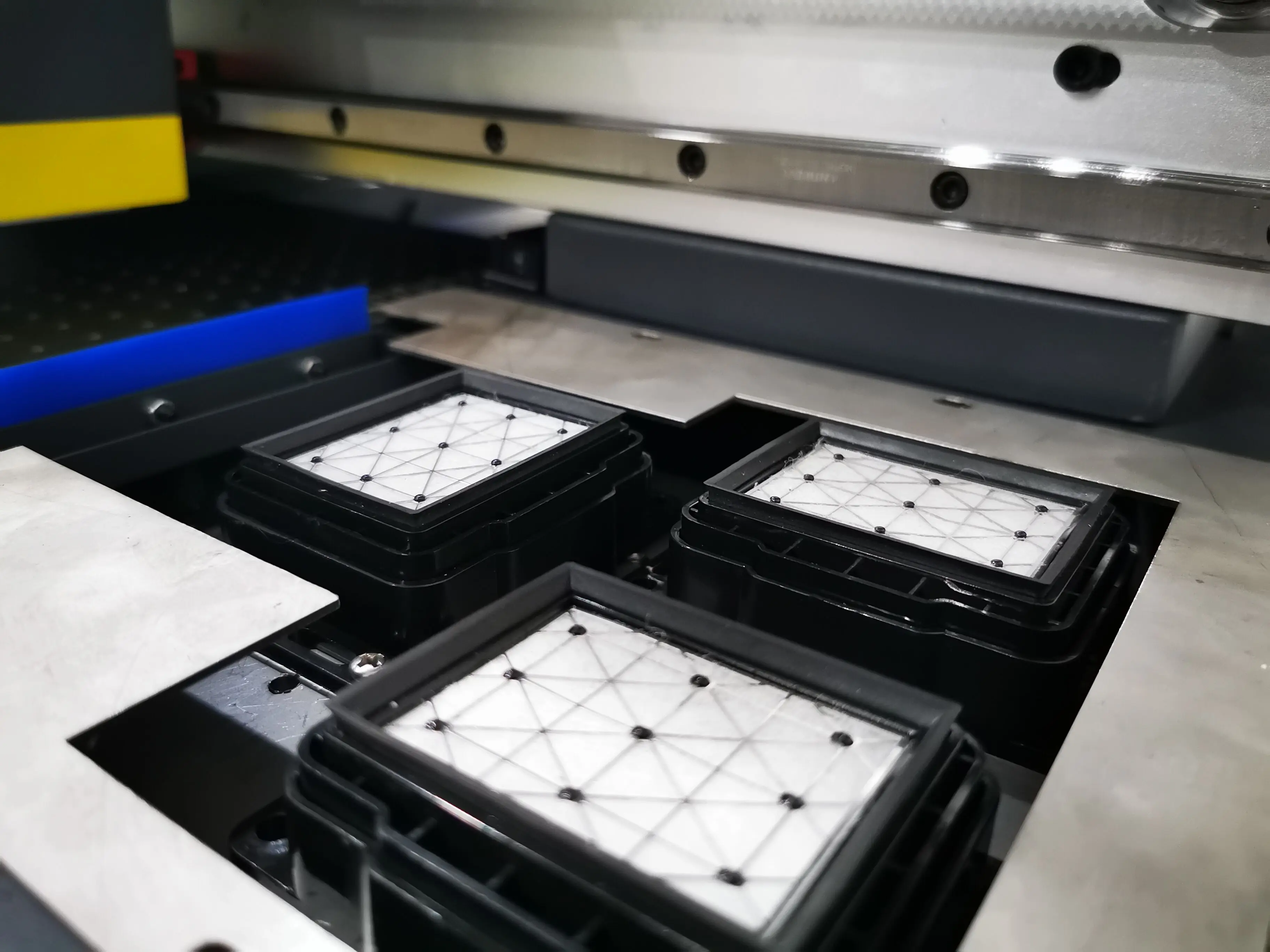

8. Easy operation panel can control the flatbed for Backward, Foward, Up, Down, Pause/Stop, Online/Offline and ink changing, to let you operate the machine more convinence. 6090 digital printing machine price phone case printing machine uv printer has 3 heads cap stations to keep the print head wet after printing.





9. Patented Focus APCDS system can automatic detect the X(carriage), Y(flatbed) motion pulse and send back the real motion data to mainboard for Interpolating,  combine with the closed-loop structure circuit design to enhance the stability of the system and ensure the flatbed printing with one pass printing precision and repeat printing precision.



10. Bend surface, Cylinder objects and balls also can be printed by focus patented Rotary-Add-On family  easily.





11. High quality LED UV curing system with 48pieces LED UV lamps, can get to the working power during 100W~200W immediately without waiting, also the LED light cost less power and harmless for human health. Combine with the high effective water circulation cooling system to ensure the stable printing.







12. customize channel of A1 6090 digital printing machine price phone case printing machine uv printer water cooled head can get a high density brilliant printing results both on dark and light media with White ink and color ink printing.



13. Unique 3D texture output option available.



...
