A1 UV printer digital printing machine wood glass ceramic plastic metal plastic multifunctional printing

Click here to contact
Product details
Ink Type:uv ink;Brand Name:N/A;
Rip software:RIPRINT;Color:CMYK+LC+LM+W+V;
Dimensions(L*W*H):140*140*90CM;Application:Phone Case/Leather/Electronic Plate/CD Cards/Sign;
Usage:Bill Printer,Card Printer,Cloths Printer,Label Printer,Paper Printer,Tube Printer,A1 UV printer digital printing machine wood glass ceramic plastic metal plastic multifunctional printing;Certification:CE Certification;
Selling Units:Single item;Warranty of core components:1 Year;
Packaging Detail:FocusInc A1 UV printer High Quality A1 Multicolor Cheap UV Printer 6090 UV packaged as below: 160CM*160CM*110CM packing size. Export standard wooden package. By sea, Airbus, Express available.;Print Dimension:60*90cm;
Color model:12 color;Local Service Location:Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan;
Single package size:160X160X115 cm;Type:Inkjet Printer;
Marketing Type:New Product 2020;Weight:300;
Plate Type:Flatbed Printer;Showroom Location:Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Japan,Malaysia,Australia;
White ink:Available on dark media UV flatbed printing;Body:Thicken Aluminium Profile;
Warranty:1 Year;Cooling system:Water circulation cooling system;
After-sales Service Provided:Engineers available to service machinery overseas,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;Voltage:110V/220V;
Automatic Grade:Automatic;Key Selling Points:Multi Color;
Machinery Test Report:Provided;Color & Page:Multicolor;
Place of Origin:Shanghai China;Video outgoing-inspection:Provided;
Ink:UV ink, Eco solvent ink, DTG ink printing;Core Components:Motor,Pump,PLC,mainboard;
Condition:New;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company,A1 UV printer digital printing machine wood glass;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Single gross weight:325.0 KG;
Package Preview:;Max. printing size:60*90cm;



Discount season!!!

The top 50 to send inquiry will get special discount!!!

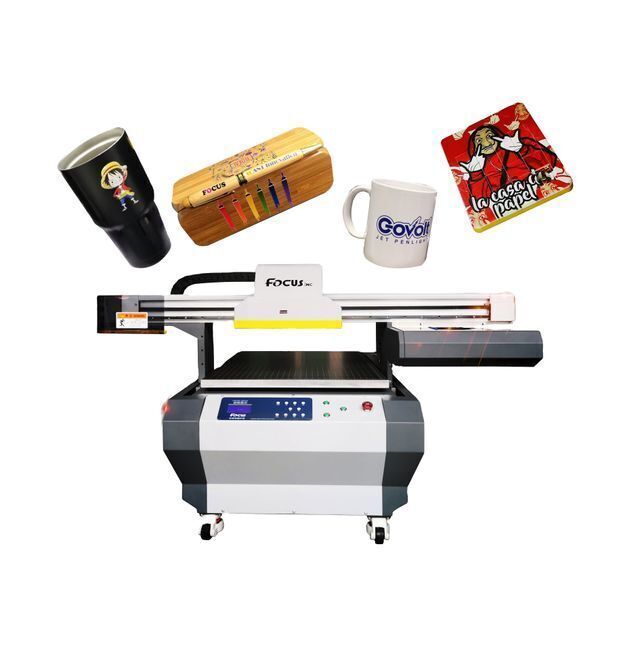

A1 UV printer digital printing machine wood glass ceramic plastic metal plastic multifunctional printing



A1 UV printer digital printing machine wood glass ceramic plastic metal plastic multifunctional printing machine that created by FocusInc industrial co.,ltd.  It was built with industrial configuration as thicken aluminum profile,

It can print on wood, ceramic,glass, metal, acrylic etc,  not only flatbed, but also can print on bend, cylinder objects, output with good 3D texture printing result.

The maximum printing size is 60x90cm, can meet high printing height 18-20cm.  Suitable for mass production.




Specification



Model A1 UV printer High Quality A1 Multicolor Cheap UV Printer 6090 UV
LED-UV Function UV lamp system 6 Power degree adjustable system
UV Power 100W
UV lamp life time 50000hours
UV light wavelength 390-400nm
Light power 500mw/w
Cooling type Water circulation
Cooling adjustment Automatic on/off between 25-30c
Control Software RIPRINT
Repeat printing precision Overlap small than 0.1mm
Head maintain Head clean during/after printing, Keep-wet system when idle.
Ink system Automatically Ink damper refill system
Max. printing size A2+: 600mm*900mm
Print head 3*XP600 piezo head with 1440 nozzles
Print color CMYK+LC+LM+W+Varnish
Print direction Unidirection / Bidirection
Print speed A2(1440dpi)/ 120s
Max. media thickness 180mm
Max. media weight 15KG
Max. printing resolution 2880DPI*1440DPI*720DPI*360DPI
Ink volume 450ML
Ink type UV environmentally ink
Height adjustable Manual / Automatic
Print head protection Intellective automatic detect
Working power 110-220V 50-60HZ 75W
Interface USB2.0 /IEEE1394
System require Windows XP / Vista/ Win7 / MAC I Linus
Working enviroment 25-30C, 50% Humidity, Dust free
Net weight/Gross weight 300G/360KG
Printer size 140CM*140CM*90CM
Packing size 160CM*160CM*110CM




Technical features

1. High quality water chiller cooling system to keep the UV LED lamp working longer and stable.

2..High precision CNC milling and laser engraving print head mounting plate.

 3.Fast printing speed by print on A2 size 600*400mm with full color of uv flatbed printer only need 120 seconds.

High-precision Japanese THK linear guide.





4.Three heads cap stations to keep the printhead wet after printing.  This is the only ink stack lifting system in the industry that uses four-axis screw motion, CNC carving, and all-aluminum design and development.





5. Own patent design printing mainboard to support one pass printing, FOG wave halftone rip data and variable data printing.







6. Easy loading ink tank system and can help you save space.





7. Double UV LED Lamps to make the ink dry faster and make the printing area bigger.

 8.Three XP600/ DX7/DX5 heads white and color ink printing at the same time in one pass.

9. Three XP600 heads high quality colorful picture printing with ICC printing profile.



10. Max. 18cm object height available to be adjusted to meet more requirements from clients.

 11. Unique 3D texture output option available print by our Galaxy-Jet X UV Printer.






Printing Sample

Printing effect









 Customer feedback








Company Information



Shanghai FocusInc  Industrial Co., Ltd. is a top brand supplier for UV flatbed printer and direct to garment printer. specialized in digital printers.



We are located in beautiful modern city, Shanghai, China. Factory is located in high technology city Shenzhen.

inc keep bringing breakthrough new printers to the market over decades, more than 100 countries clients choose inc to starts their own printing business.



Special design, long durability, friendly operating system,  capable of running 24 hours a day 7 days a week.

we are committed to providing high-quality, environmental-friendly UV and DTG printers, devoted ourselves to technological innovation, which is why client choose inc.



Inc, All For customer’s value!






Quality control

1. 48 hours aging test before delivery.
2. QC checking - 101 test before delivery
3. High configuration machine parts, high quality export leval wooden box;
4. More information please check below video or contact team.







Contact



Jennifer Jiang

YOUR Honest And Professional Sales
E-mail: sales7@dgt.com
Whatsapp and Tel : +86 177 40838279

I am Jennifer, I will waiting for you friend! ^-^
Don't hesitated to send inquiry to us, the top 50 will get discount price!!!
