Hydrostatic Water Tank Level Sensor Transmitter Submersible Liquid Water Level Sensor Transmitter

Product details
Certificates:ISO9001,CE;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Accuracy:0.2%FS; 0.5%FS;;Brand Name:Qidian;
Output signal:4-20mA; 0-5V; 0-10V ;RS485;Place of Origin:Anhui China;
Supply Ability:100 Piece/Pieces per Week;Measuring Range:0-0.5-500m H2O;
Port:Shanghai;Packaging Detail:Each unit has original individual box,all boxes are packed in standard packages.;
Temperature Drift:≤0.01%FS/℃;Power supply:12-36VDC;
Model Number:QDY30A;Overload Capacity:200%FS;

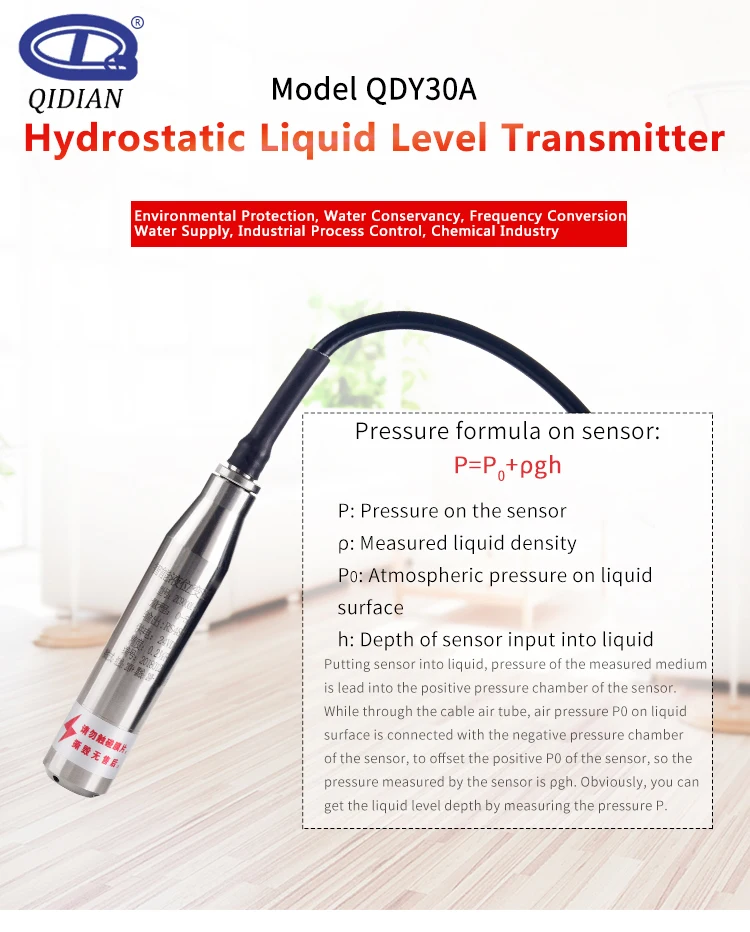

Hydrostatic Water Level Sensor Transmitter Submersible Liquid Water Level Sensor Transmitter

Product Description

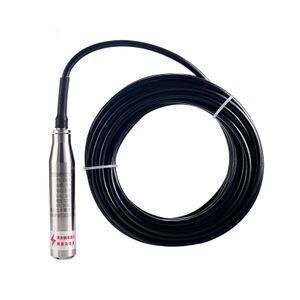

QDY30A submersible Water Level Sensor, its 304 &316 stainless steel and hermetically sealed housing make it suitable for most industrial liquids and oils. The welded housing is tested in-house via a helium leak tester to ensure proper protection. Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The conductors of the cable are also isolated from the outside environment to keep the level sensor operational for long-term use.

Technical Specifications

Model

QDY30A liquid water level sensor

Measuring Range

0~0.5~500m H2O

Power supply

12~36VDC (Standard 24VDC)

Output Signal

4~20mA; 0~5V; 1~5V; 0-10V; RS485

Accuracy

0.2%F.S; 0.5%FS

Response Time

≤1ms (up to 90%FS)

Long-term Stability

±2F.S/Year
Medium Temperature-20~85℃
Working Temperature-40~80℃

Overload Capacity

200%F.S

Insulation Resistance

100MΩ/250VDC

Sensitivity Drift

±2%F.S

Zero Drift

±2%F.S

Protection

IP68

Measuring Medium

Various medium which is compatible with SS304

Mechanical Vibration

20g (20~5000Hz)

Impact

100g (11MS)



Material

Junction box: Low content Cu-Al alloy

Probe: Stainless steel

Cable: Polyurethane cable

Application

Static liquid level, Liquid tank, Sewage water, Well, Lake,etc.

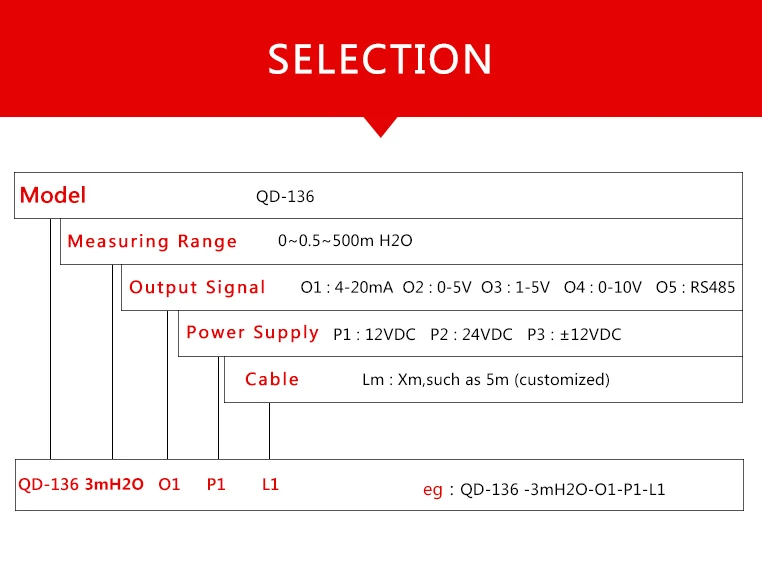

Selection

Wiring Diagram

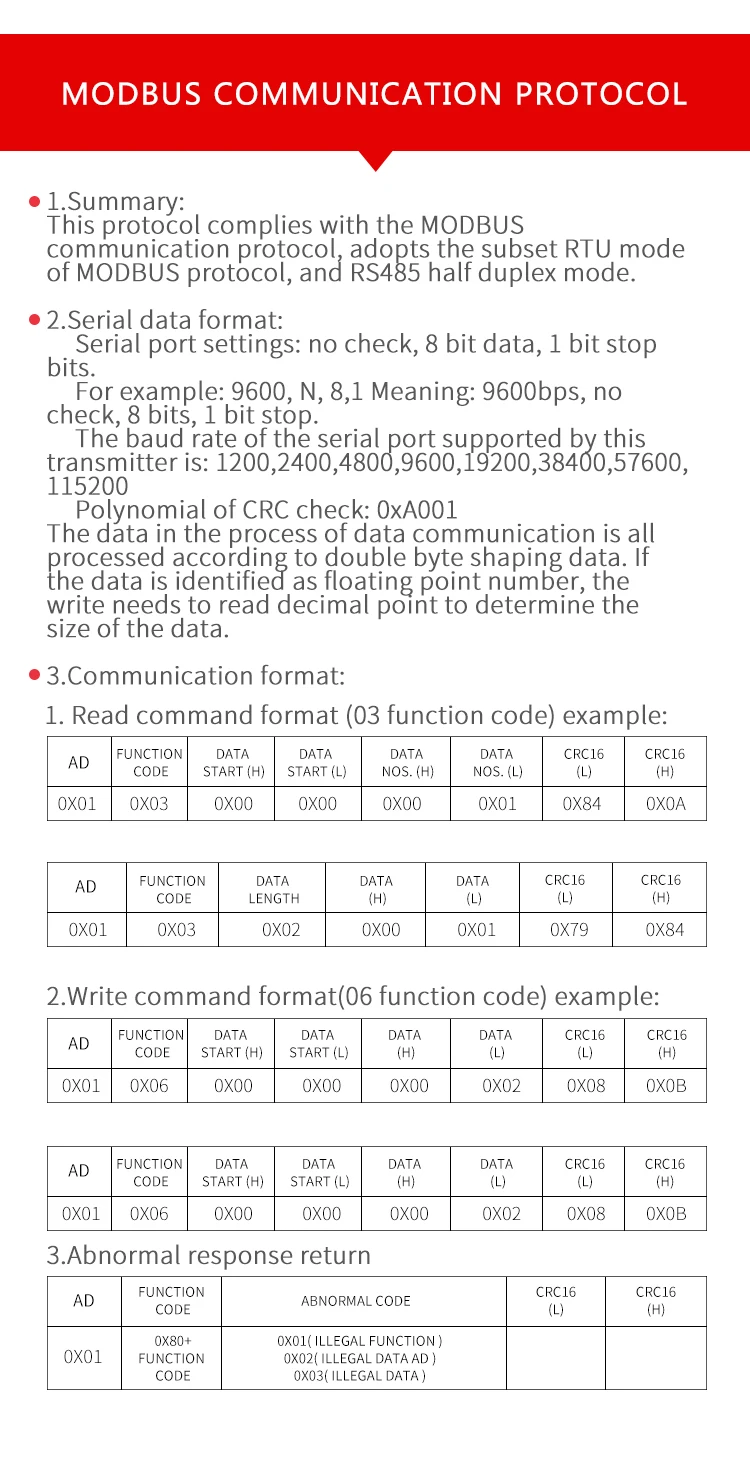

Notes: Please contact us if you need more detailed protocol.
