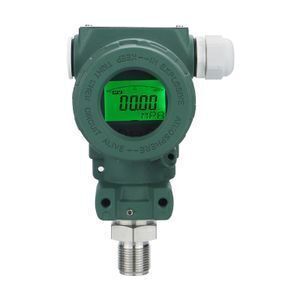

Explosion-proof industrial digital pressure transmitter water oil air pressure sensor 4-20mA pressure transmitter price

Product details
Output signal:4-20mA/0-5V/0-10V/1-5V;Pressure type:Gauge Pressure Absolute Pressure Sealed Pressure;
Model Number:QDX50;Process connection:M20*1.5, G1/4, NPT1/4, Customized;
Payment Terms:L/C,D/P,T/T,Western Union;Power supply:24VDC;
Accuracy:0.5%FS;0.2%FS;Supply Ability:100 Piece/Pieces per Day;
Packaging Detail:Each unit has original individual box,all boxes are packed in standard packages.;Place of Origin:Anhui China;
Certificated:CE,FCC,ROHS,ISO;Brand Name:Qidian;
Port:Shanghai;Measuring pressure range:-0.1~0~100MPa;

Explosion-proof industrial digital pressure transmitter water oil air pressure sensor 4-20mA pressure transmitter price



Product Description



<1>. Pessure transmitter has been specially designed to cover the majority of industrial applications where need high accuracy measurement.
<2>. QDX50 pressure transmitter is made of stainless steel, the pressure sensing elements are selected from good suppliers. Special circuits are adopted to asjust zero and full range conveniently.

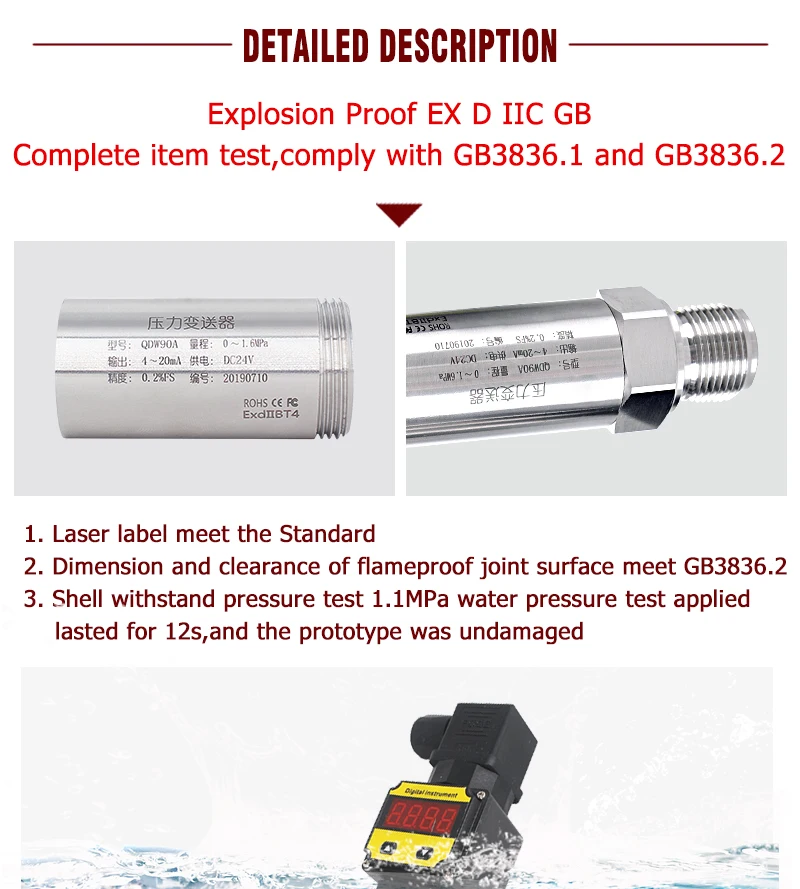

<3>. This pressure transducer has been approved with CE,FCC,ROHS,ISO certificates, and explosion-proof certificate.
<4>. Customized structure and outputs formats can be designed according to special application requirement, in addition to standard products.



Technical Parameters



Measure media

Gas, water, oil or other media can be compated with stainless

Pressuretype

Gauge; Absolute; Negative, Sealed gauge pressure

Pressure range

-0.1~0~100Mpa

Power supply

DC12~36V (DC24V)

Output signal

4~20mA,1~5V,0~5V,0~10V,RS485,etc

Accuracy

0.5% F.S(Default); 0.2% F.S

Response time

≤8mS

Overload pressure

200% F.S.

Ambient temperature

-40~85℃

Compensation temperature

-10~70℃

Protection grade

IP65

Long-term stability

Standard: 0.2%F.S±0.05%

Zero temperature drift

0.03%FS/°C(≤100kPa),  0.02%FS/°C(>100kPa)

FS temperature drift

0.003%FS/°C(≤100kPa),  0.002%FS/°C(>100kPa)

Natural frequency

5KHz~650KHz
Thread size M20*1.5(Default), Customization

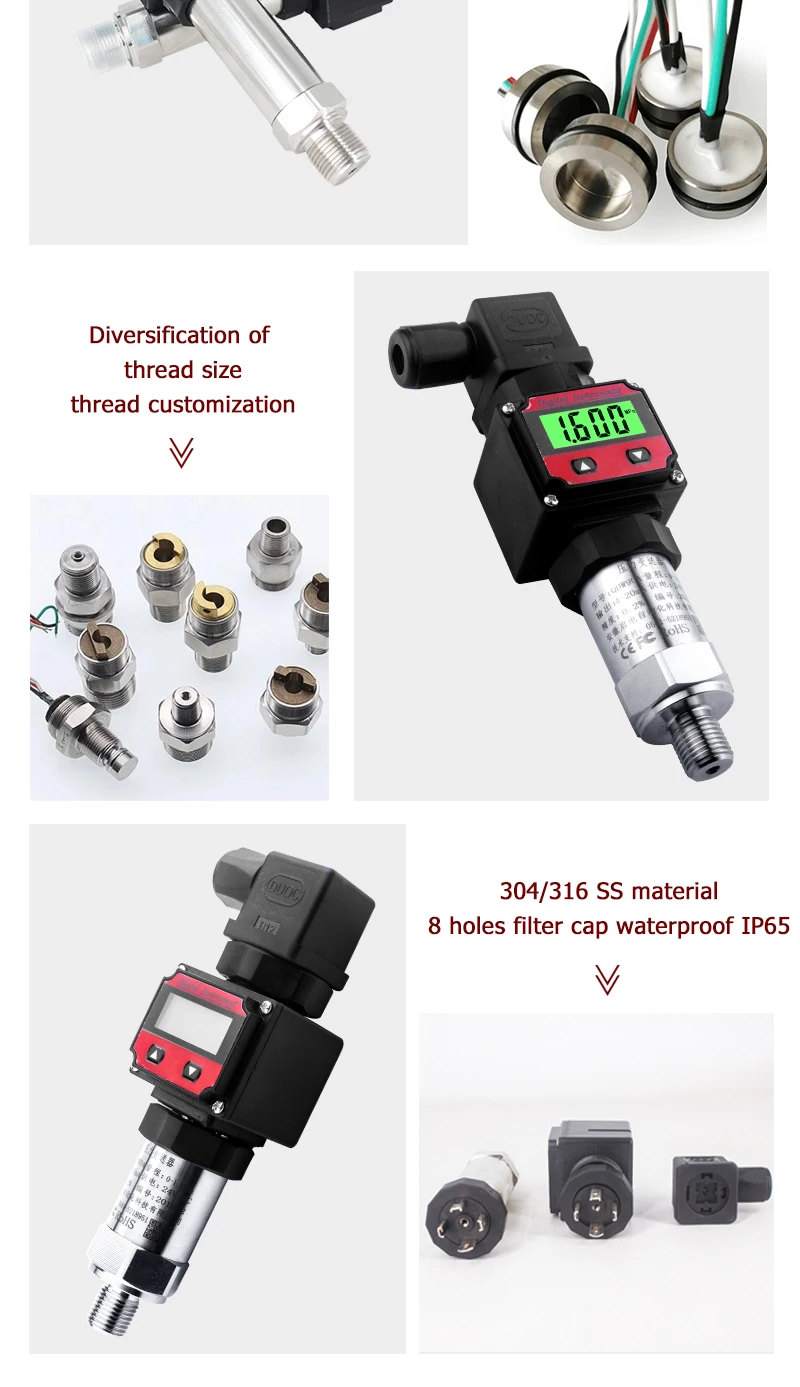

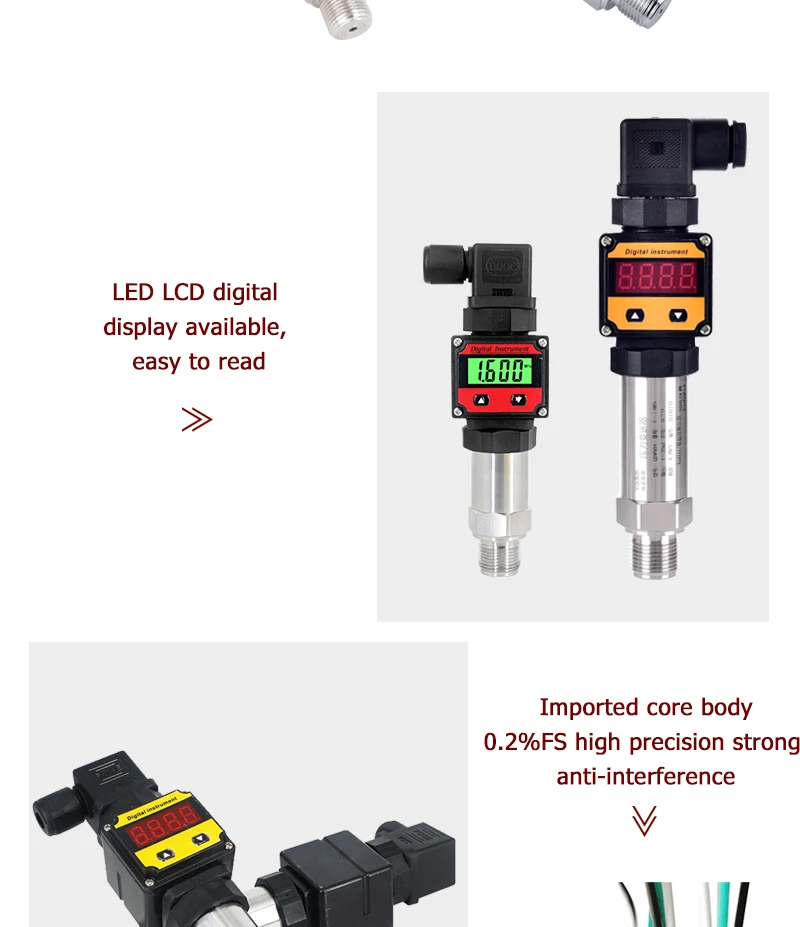

Selling Points

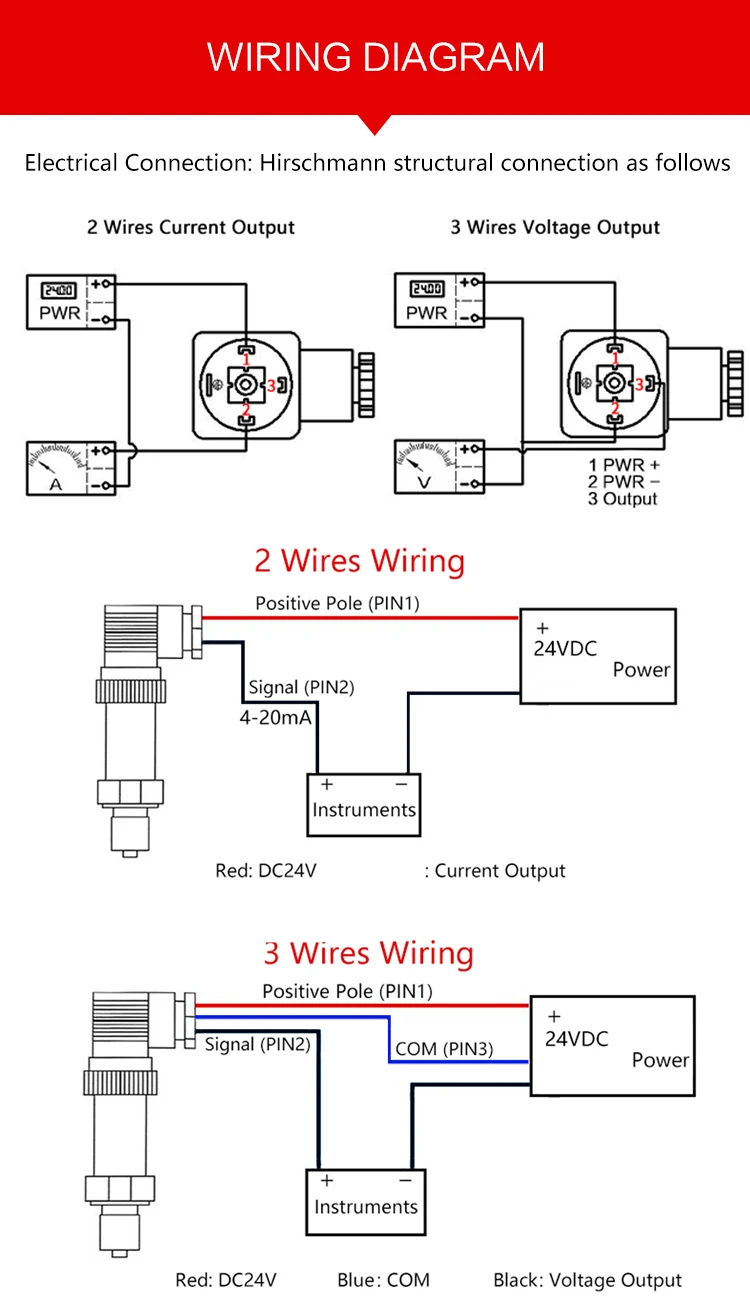

Wiring Diagram

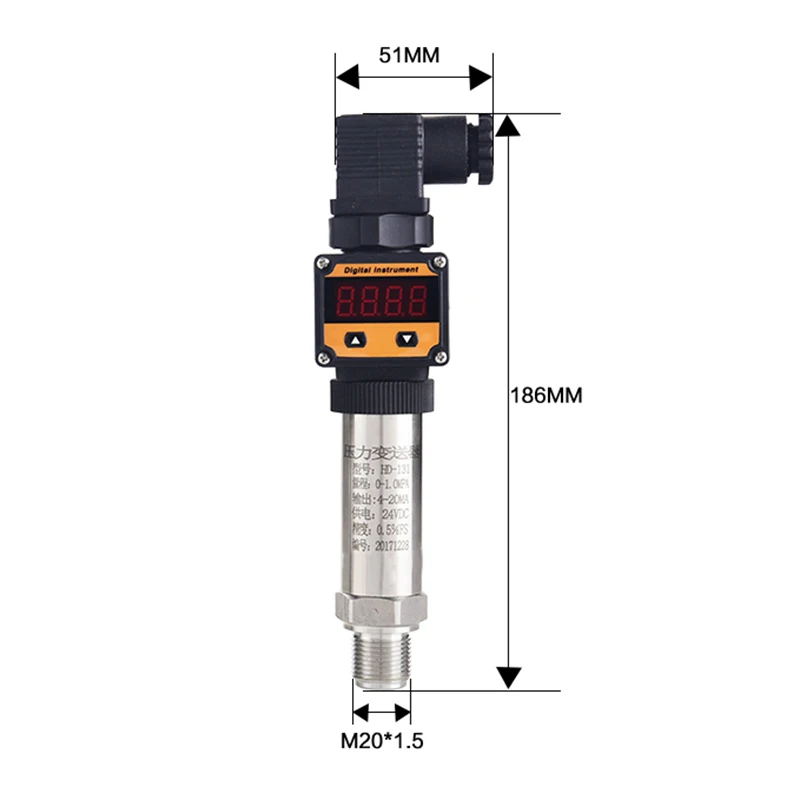

Product Dimension

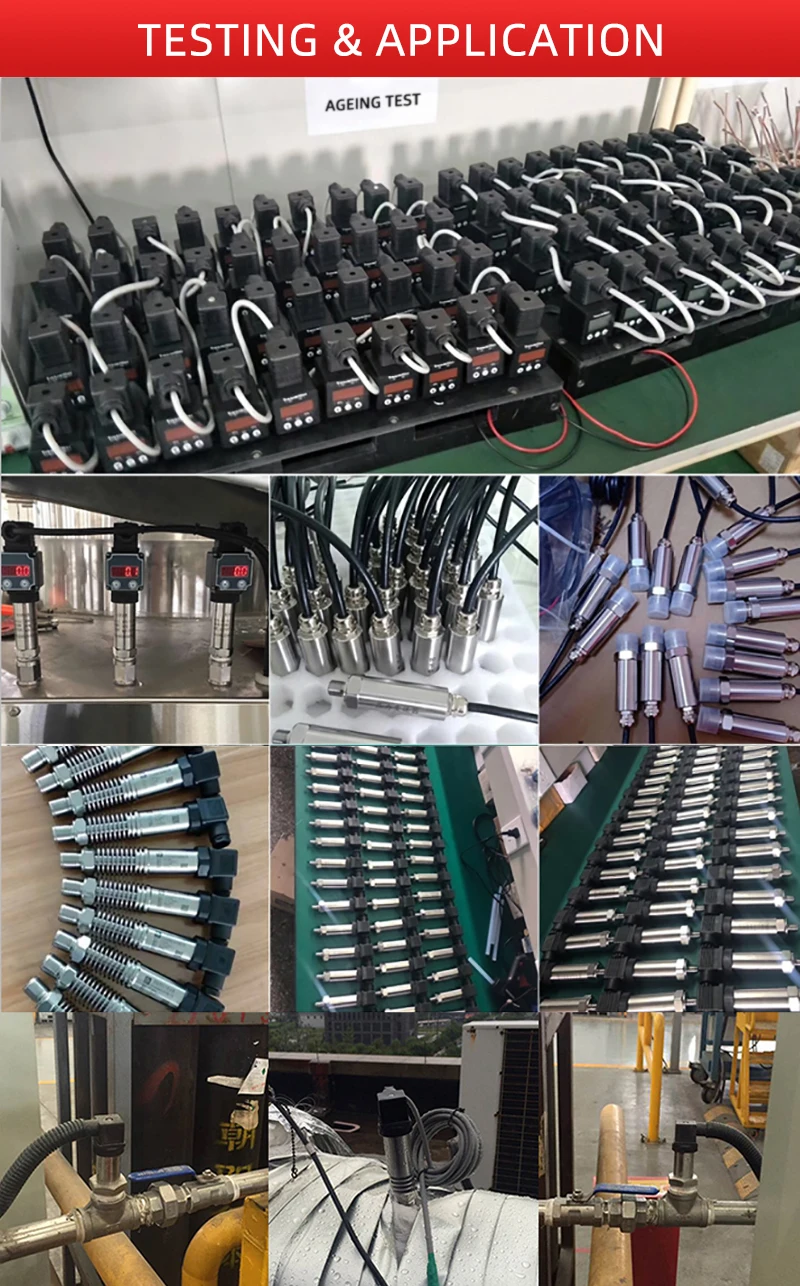

Product Application



Certifications
