Certification: | GS | media: | liquid, gas or vapor flow |
brand: | wind and rain | model: | 7MF4033 |
Origin: | Shaanxi, China | port: | Shanghai |
protocol: | Hart | Customization support: | OEM production |
Range: | 1~100KPa, 5~500KPa | accuracy: | ±0.065% of range |
Supply capacity: | 100 pieces per month | Package preview: | |
Warranty: | 1 year | payment terms: | Western Union, D/P, T/T |
Packaging Details: | Yokogawa Low Profile Differential Pressure Transmitter Standard Package. | product: | Yokogawa EJA120E Low Pressure Differential Pressure Transmitter |

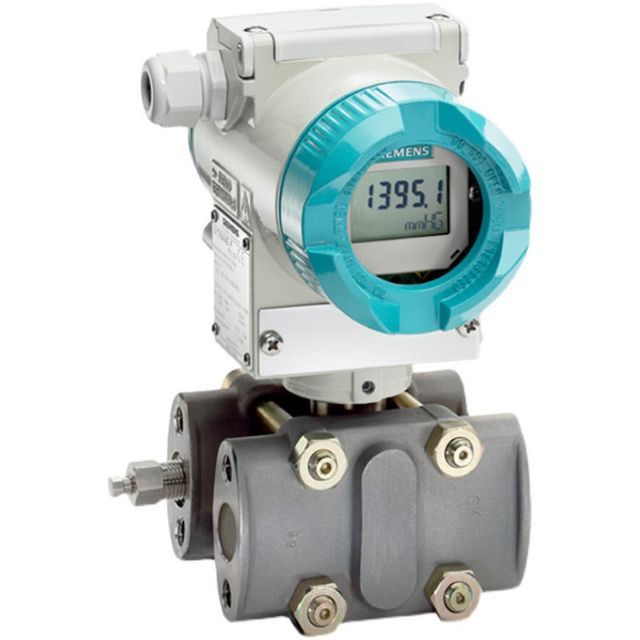

Original Sitrans pressure transmitter 7MF4033
SITRANS P320/420 pressure transmitter -------- 7MF0300-1TB01-5CF2 pressure measurementSITRANS P320/420 are the first pressure transmitters on the market to feature remote secure handling. Remote secure handling of instruments via SIMATIC PDM saves time during SIL commissioning: instead of manually programming each individual device throughout the facility, the operator can access the transmitter from the control room. This reduces debugging time for applications requiring functional safety. Proof test intervals for both pressure transmitters are longer than other devices on the market, with a test cycle of up to 15 years instead of every two years. This significantly reduces maintenance costs.
product name |
7MF0300-1TB01-5CF2 pressure measurement |
accuracy |
0,065 % (SITRANS P320), 0,04 % (SITRANS P420) |
Response time |
as low as 105 ms |
long-term stability |
≤ 0.125 % / 5 years |
measuring cells |
From 20 mbar to 700 bar |
maximum. turn down |
100:1 |
Measured medium temperature |
-40 °C to +100 °C |
Certificate/Approval |
ATEX, IEC EX, FM, CSA, NEPSI, etc. |
SIL-2/3 certified v |
Developed according to the IEC 61508 standard |
communicate |
4…20 mA/ HART, PROFIBUS PA (in preparation), FOUNDATION Fieldbus (in preparation) |
diaphragm material |
Stainless Steel, Hastelloy, Tantalum, Monel, Gold |
