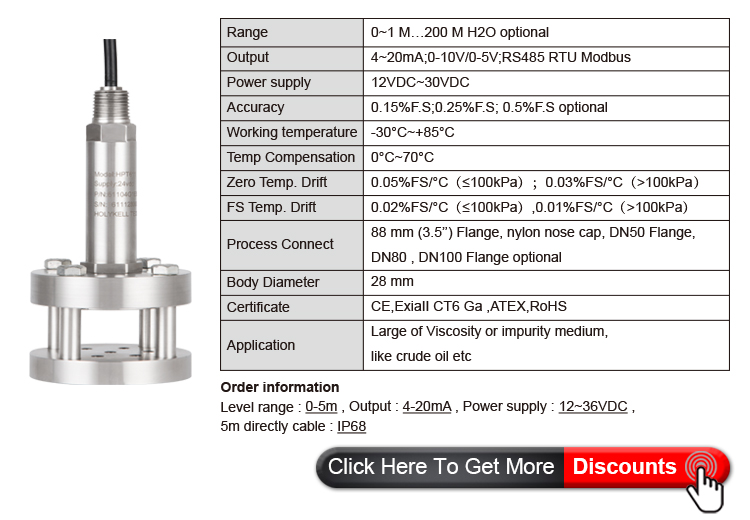

place of origin; place of origin: | Hunan, China | Features: | Double flange installation |
Certificate: | CE RoHS ISO | Supply capacity: | 5000 pieces per month |
port: | Shenzhen/Guangzhou | Material: | 316L stainless steel |
accuracy: | 0.5% full scale | Protect: | Waterproof IP68 |
application: | Irrigation, sewage, water level monitoring | Packaging Details: | Standard export packaging |
power supply: | 12~36VDC | payment terms: | L/C, T/T, Western Union, MoneyGram, PayPal, Credit Card |
brand: | Holly Kyle | output: | 4~20mA/0~5V/0~10V |
product name: | Submersible pressure liquid level transmitter, flange type liquid level sensor | Pressure range: | 0~1m...200m water/0~50Bar |
model: | HPT611 |

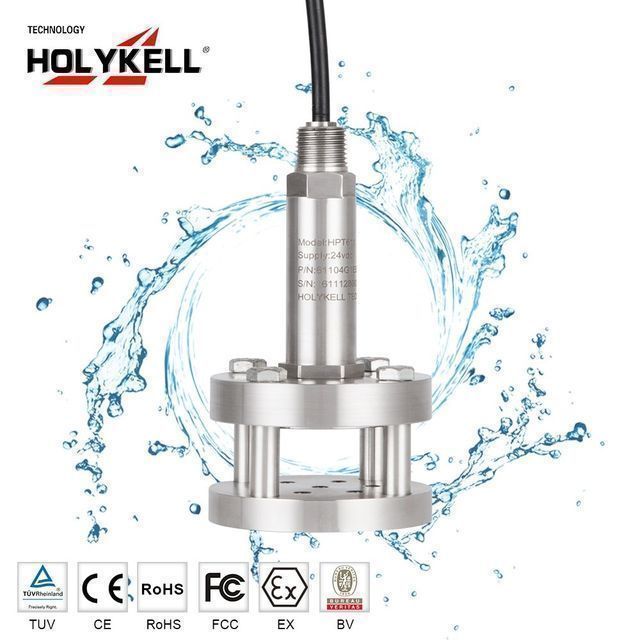

HPT611 Submersible Pressure Level Transmitter and Transmitter
Holykell HPT611 Sewage series submersible liquid level transmitter is widely used in sewage water level measurement. It consists of imported MEAS TE piezoresistive sensing elements encapsulated in a 316 stainless steel case. Unique 8-hole (HPT604) or 20-hole (HPT605) or "steel cage" flange (HPT611) filter design protects the diaphragm from clogging and damage. Strong wear resistance, high hardness, service life is 2-3 times that of similar products
feature | Advantage | benefit |

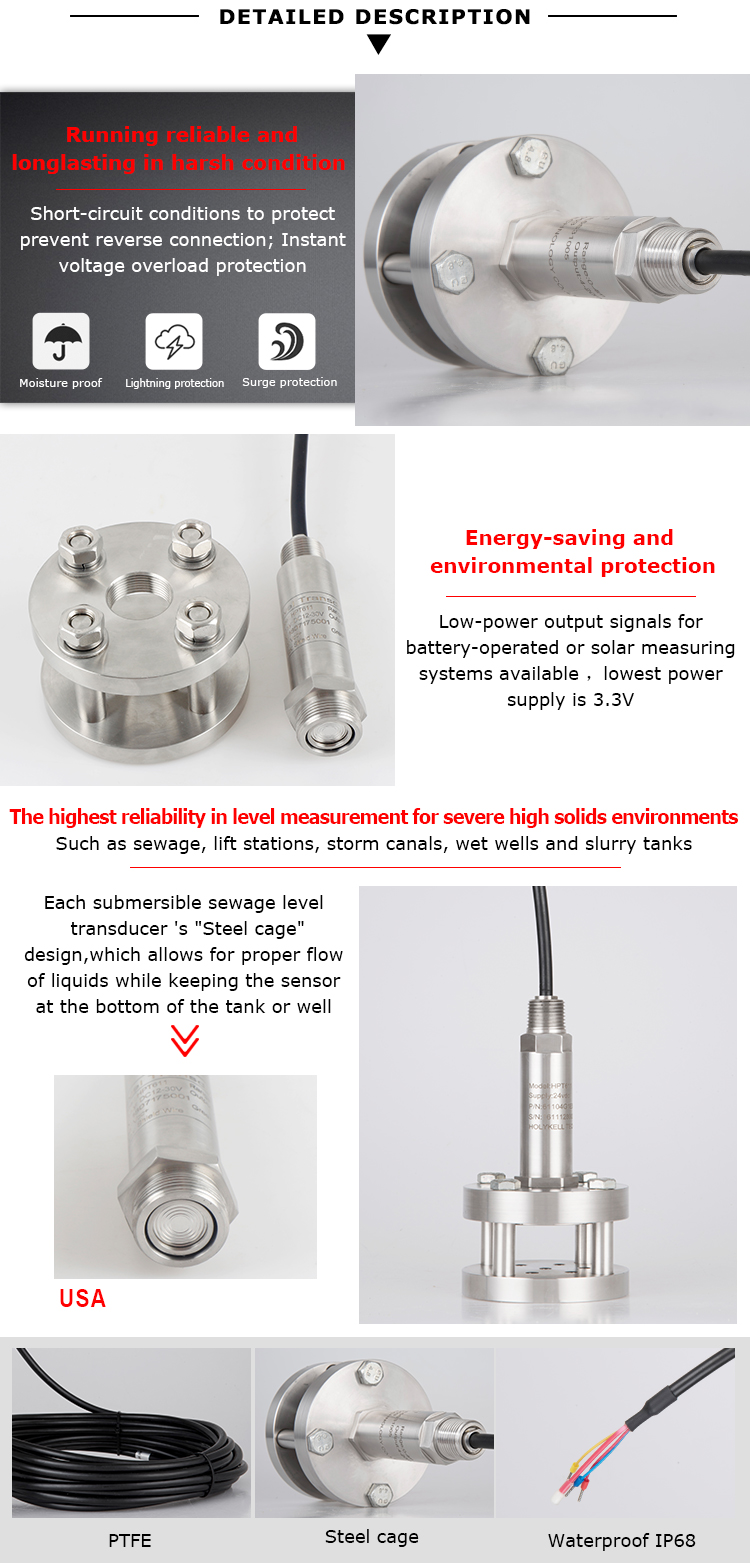

The "steel cage" design of each submersible wastewater level transmitter | Steel cage front design allows for proper fluid flow while keeping the sensor at the bottom of the tank or well | Provides highest reliability level measurement for harsh high solids environments such as sewage, lifting stations, storm drains, wet wells and mud tanks |
Lightning surge reverse protection | Short circuit condition protection against reverse polarity; momentary voltage overload protection | Reliable and long-lasting operation in harsh conditions |
Vent with filter | Breathes the atmosphere and protects moisture from entering the transducer | Maintenance-free even in the most humid environments. |
American TE chip, digital PCB board | Accuracy 0.25%, small temperature drift, automatic compensation for air pressure changes | Stability, allowing sensors to run longer by reducing downtime and maintenance costs |
low power output signal | Provides Low Power Output Signals for Battery-Powered or Solar Measurement Systems with a Minimum Supply of 3.3V | Energy saving and environmental protection |
316L diaphragm | Anti-corrosion, wear-resistant, shock-resistant | making it suitable for prolonged immersion in most industrial fluids |
WWhat is the application of HPT611 liquid level sensor?
HPT604 HPT605 HPT611 (liquid level sensor) is widely used in
Sewage level measurement and control automatic detection system
Well Position Measurement and Control
Sea water level measurement and control
Industrial Process Testing and Control
Laboratory equipment oil and tank level measurement
Sewer Level and Pressure Monitors
Water Saving Irrigation
Liquid level measurement in sewage pumping stations,
And well received by consumers.
1. What is your medium? water, oil or others.
2. Working temperature? -30℃~80℃ or others?
3. Horizontal range: 0-5m or others?
4. Output signal: 4-20mA, 0-5V or others
