2017 hot sales skate wheel expandable flexible gravity conveyor

Product details
Brand Name:Hongsheng;Wheel material:Galvanized steel wheel /nylon wheel;
Function:Material handling/loading offloading truck/container;Structure:wheel conveyor;
Material Feature:Oil Resistant;Application:Warehouse/factory/store/production line/transport line;
Frame Material:Cabon Steel spray paint;Dimension(L*W*H):6000*600*700mm;
Condition:New;Payment Terms:L/C,D/A,D/P,T/T;
Width:400~1000mm optional;Power(W):0;
Warranty:1 year;Product name:Skate wheel expandable flexible gravity conveyor;
Place of Origin:Zhejiang China;Packaging Detail:Gravity conveyor The wheel conveyor face and leg is separated packaging,the face and leg packing into carton,then carton packing into pallet;
Height:700-1000mm Adjustable;Certification:Under the certification;
Material:Carbon steel;Warranty:1 Year;
Feature:Flexible,telescopic,portable,movable;Supply Ability:1000 Meter/Meters per Month Gravity conveyor;
Usage:Convey through height difference;Applicable Industries:Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Retail,Food Shop,Printing Shops,Food & Beverage Shops;
After-sales Service Provided:Video technical support;Port:Ningbo;
Voltage:0;
Product Description

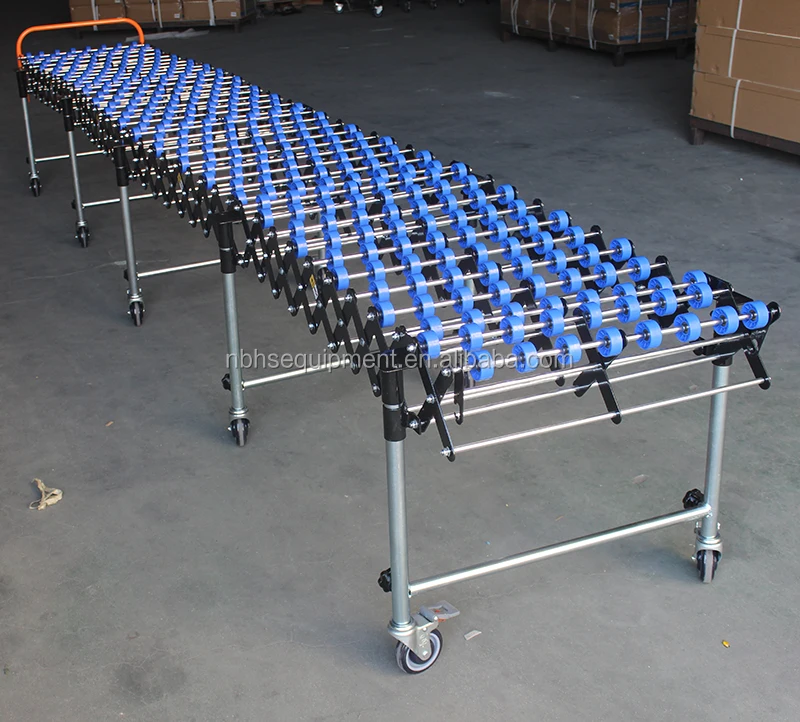

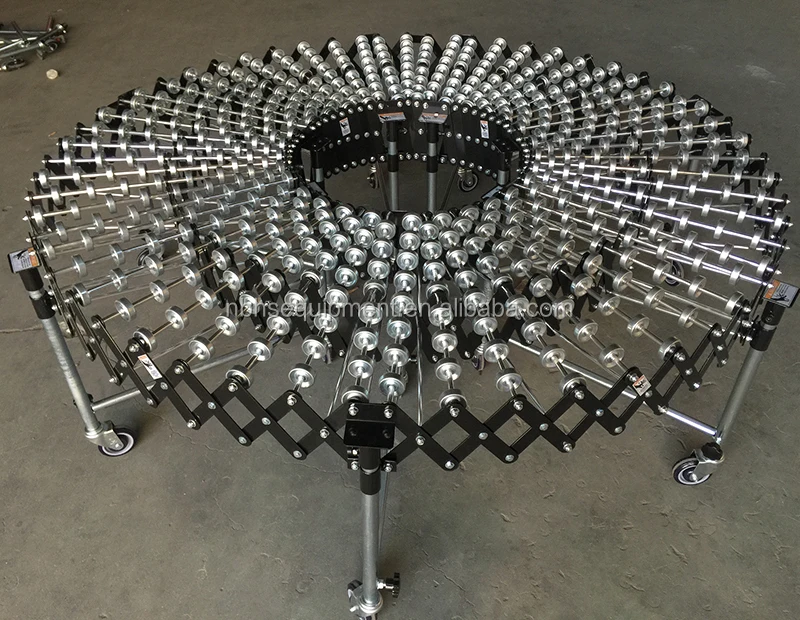

                                  Skate wheel expandable flexible gravity conveyor

Flexible  Gravity skate wheel conveyor is often chosen to convey small and medium sized flat-bottom items in harbor,dock,warehouse and storehouse,factory,etc.It is extendable,retractable and bendable.It can take curves flexibly even in zigzag narrow aisles.The crossed skate-wheels make sure that the conveyed  goods will be automatically oriented an not fall down from sides.The conveyor largely facilitates goods delivery work.Two types are avilable:1 of steel skate-wheels(Model No:WS 2.of plastic(nylon)skate-wheels(Model No:WF).Sold by section,conveyor length is optional,any length is available.



Feature
  •  Diameter 49.2mm(1.94'') plastic wheel with high precision bearing
  •  3.5mm thickness carbon steel telescopic plate
  • This item widely to be used in loading/unloading truck/container system. there is a platform before container/truck. also this item can be used as production packing line and temporary conveying line
  • One hour can convey cartons approx 2000pcs
Techinical parameter
ModelWheel materailWidth

Length of first/

last section

Length of

middle secion

Adjustable height

Load capacity/mDead weight/mWheel /row(pcs)

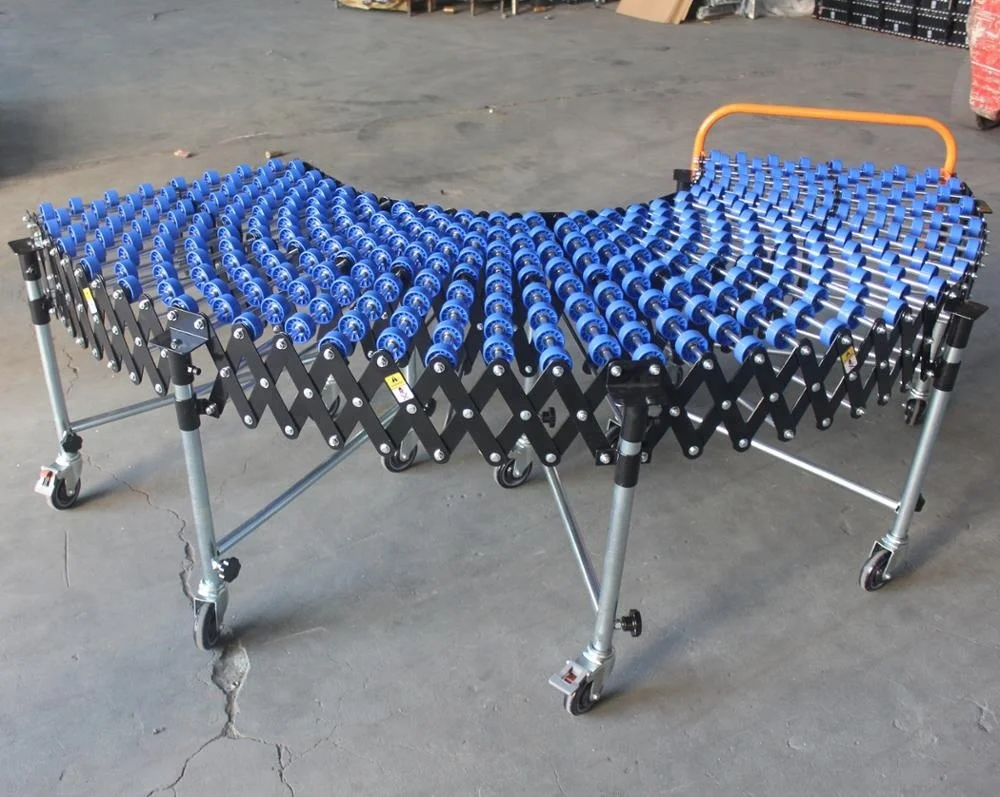

WFPlastic

24''

(600mm)

16.9''~49.2''

(430~1250mm)

13.39''~43.3''

(340~1100mm)

27.56''~39.37''

(700~1000mm)

88.19lb

(40kgs)

55.12lb

(25kgs)

8

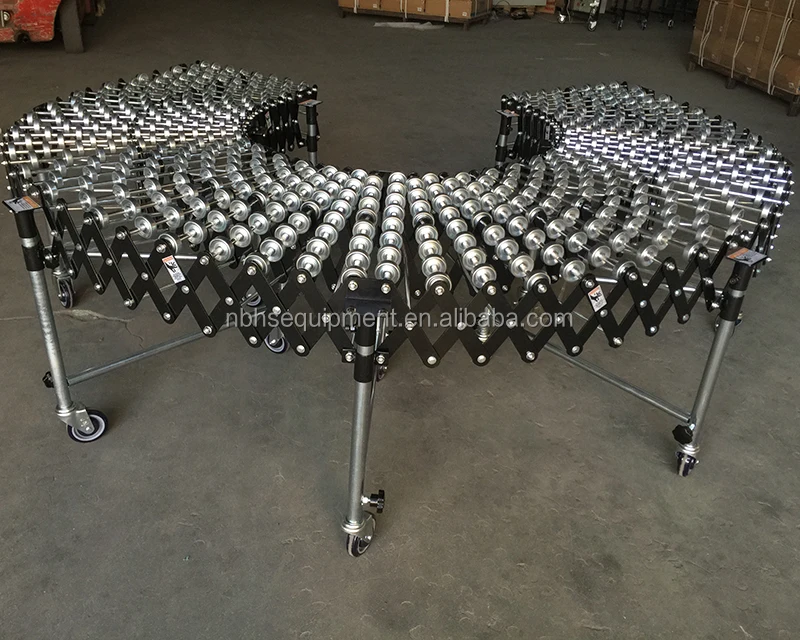

WSSteel

24''

(600mm)

16.9''~49.2''

(430~1250mm)

13.39''~43.3''

(340~1100mm)

27.56''~39.37''

(700~1000mm)

88.19lb

(40kgs)

67.73lb

(28kgs)

8



Model noMaterial of wheel Flexible/fixedWidthHeight Extended length rangeSectionsQty of legs(pcs)
WF-5PlasticFlexible

450/600/700/800/1000mm

17.72/24/27.56/32/39.37in

700~1000mm

27.56~39.37in

800~1200mm

31.49~47.24in

1880~5800mm

6.2~19ft

56
WS-5SteelFlexible

450/600/700/800/1000mm

17.72/24/27.56/32/39.37in

700~1000mm

27.56~39.37in

800~1200mm

31.49~47.24in

1880~5800mm

6.2~19ft

56
WF-6PlasticFlexible

450/600/700/800/1000mm

17.72/24/27.56/32/39.37in

700~1000mm

27.56~39.37in

800~1200mm

31.49~47.24in

2220~6900mm

7.3~22.6ft

67
WS-6SteelFlexible

450/600/700/800/1000mm

17.72/24/27.56/32/39.37in

700~1000mm

27.56~39.37in

800~1200mm

31.49~47.24in

2220~6900mm

7.3~22.6ft

67
WF-7PlasticFlexible

450/600/700/800/1000mm

17.72/24/27.56/32/39.37in

700~1000mm

27.56~39.37in

800~1200mm

31.49~47.24in

2560~8000mm

8.4~26.25ft

78
WS-7SteelFlexible

450/600/700/800/1000mm

17.72/24/27.56/32/39.37in

700~1000mm

27.56~39.37in

800~1200mm

31.49~47.24in

2560~8000mm

8.4~26.25ft

78
WF-8PlasticFlexible

450/600/700/800/1000mm

17.72/24/27.56/32/39.37in

700~1000mm

27.56~39.37in

800~1200mm

31.49~47.24in

2900~9100mm

9.5~29.9ft

89
WS-8SteelFlexible

450/600/700/800/1000mm

17.72/24/27.56/32/39.37in

700~1000mm

27.56~39.37in

800~1200mm

31.49~47.24in

2900~9100mm

9.5~29.9ft

89









Detailed Images























Similar products

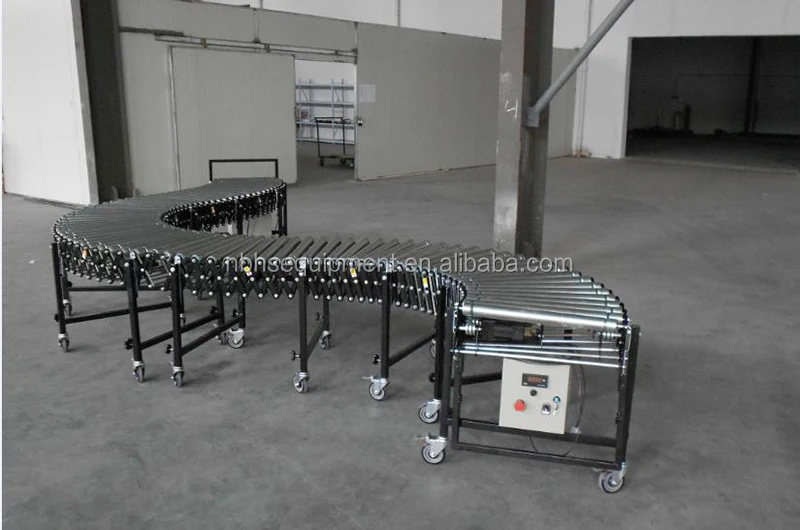

1. Flexible motorized roller conveyor

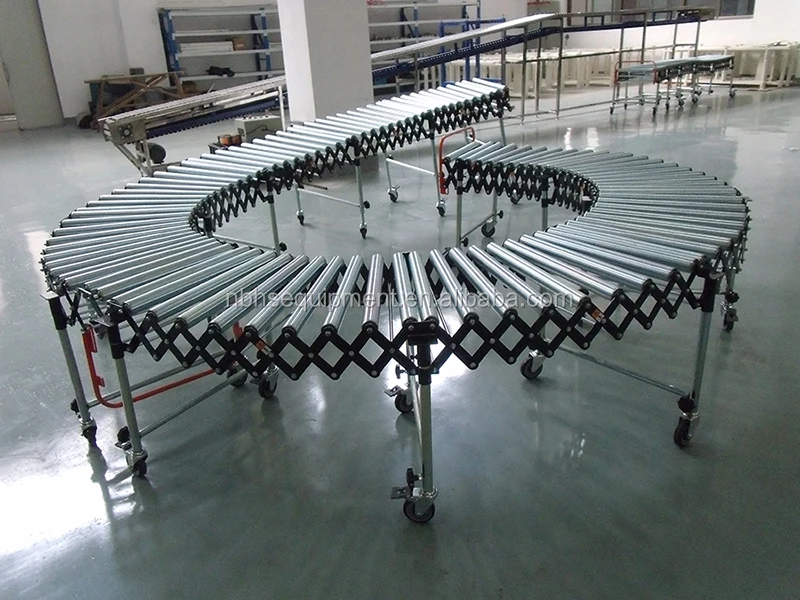

  2.Flexible gravity roller conveyor

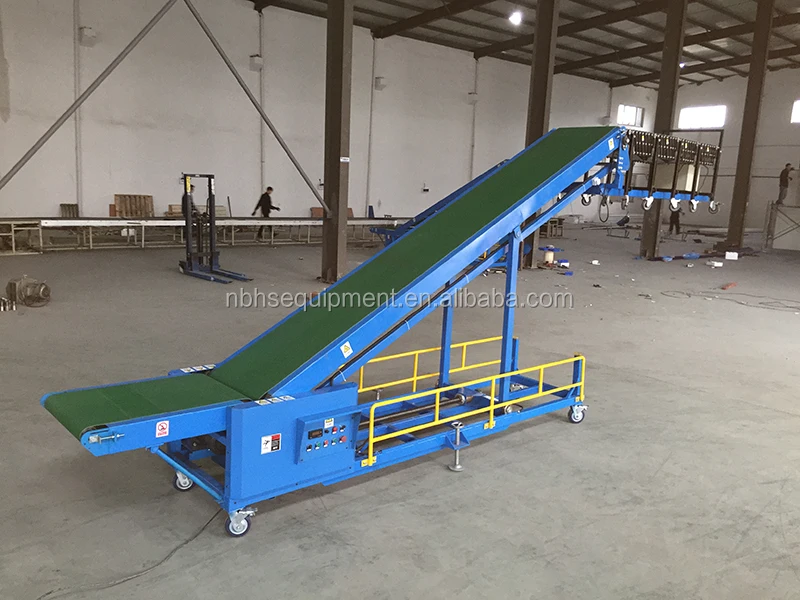

   3.Inclined truck loading conveyor

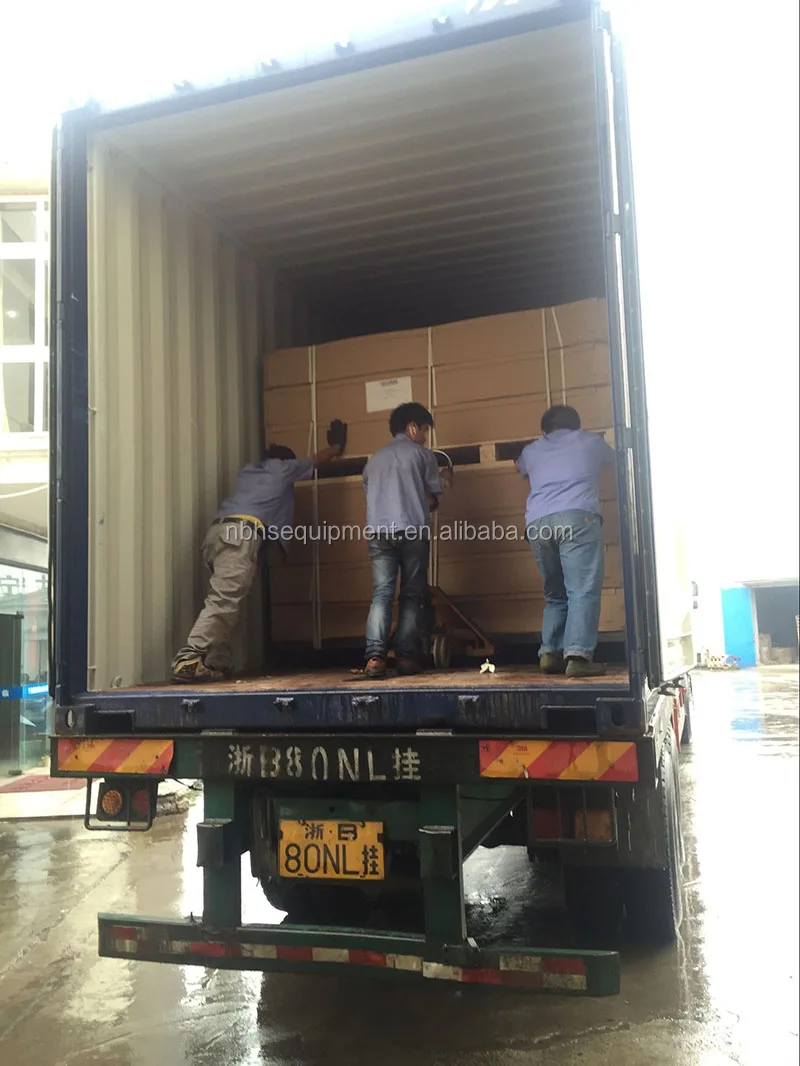

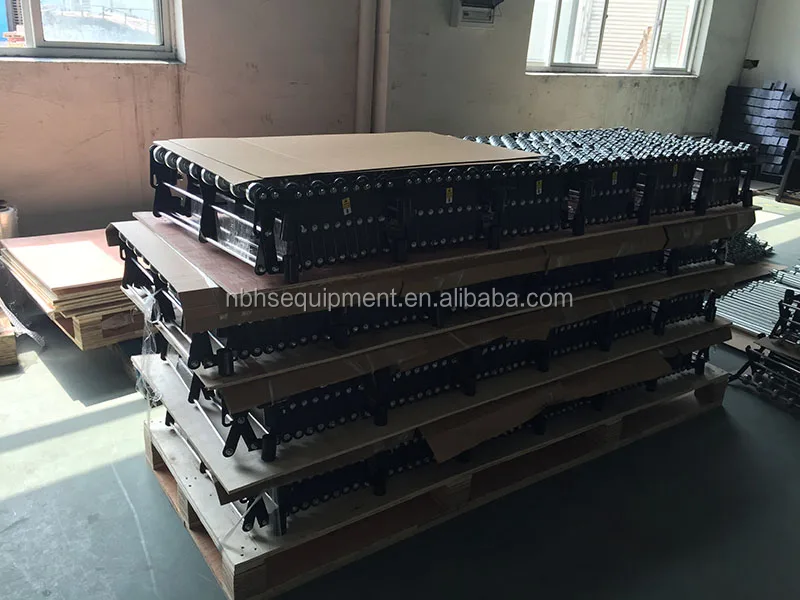

Packaging & Shipping

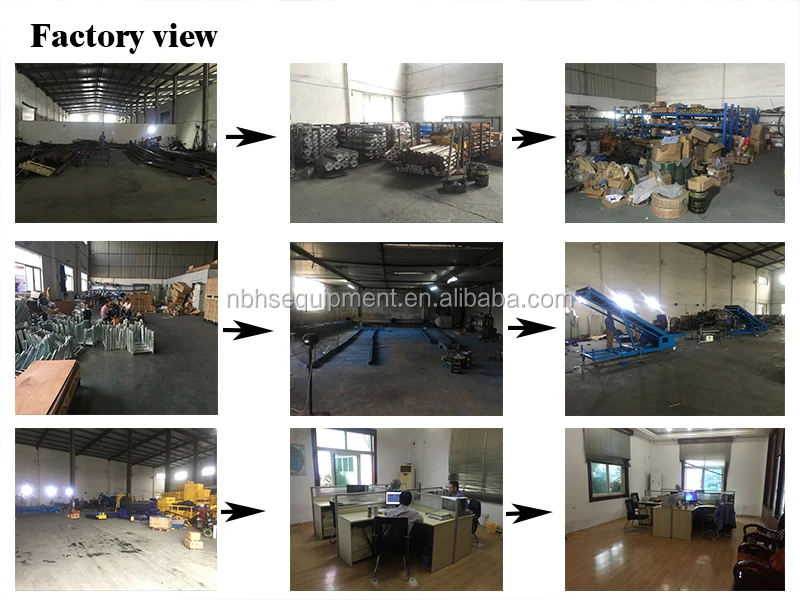

Company Information
