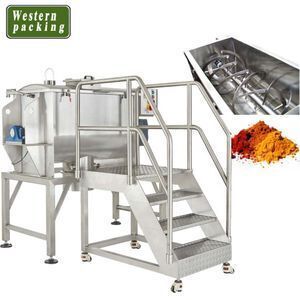

ribbon Industrial Powder Mixer/ Ribbon Blender/ Powder Mixing Machine

Supplier: Guangzhou Western Packing Co., Limited
Region: Guangdong, China
Contact: Mr David Gao
Price: $6000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power (kW):	12;	Application:	Powder;
Mixer Type:	Ribbon;	Brand Name:	Western Packing;
Range of Spindle Speed(r.p.m):	500 - 4000;	Dimension(LWH):	13008201400mm;
Applicable Industries:	Hotels,Garment Shops,Machinery Repair Shops,Food & Beverage Factory,Farms,Retail,Food Shop,Food & Beverage Shops;	Additional Capabilities:	Milling;
Payment Terms:	L/C,D/A,T/T,Western Union,MoneyGram;	Port:	Guangzhou Huangpu port;
Mixing speed:	can adjustment;	Max. Loading Capacity:	800L;
Warranty:	1 Year;	After-sales Service Provided:	Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service;
Key Selling Points:	High Safety Level;	Certification:	CE Certificate;
Max. Loading Volume (L):	800;	Barrel Volume (L):	1080;
After-sales Service Provided:	Engineers available to service machinery overseas;	Function:	Mixer Blender;
Application:	Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing;	Place of Origin:	Guangdong China;
Power(W):	0.75KW~6KW;	Type:	Double ribbon;
Supply Ability:	20 Set/Sets per Month;	Material:	Stainless Steel 304 / SUS316L;
Voltage:	380V/50Hz;	Product Type:	Food;
Condition:	New;	Weight (KG):	780;

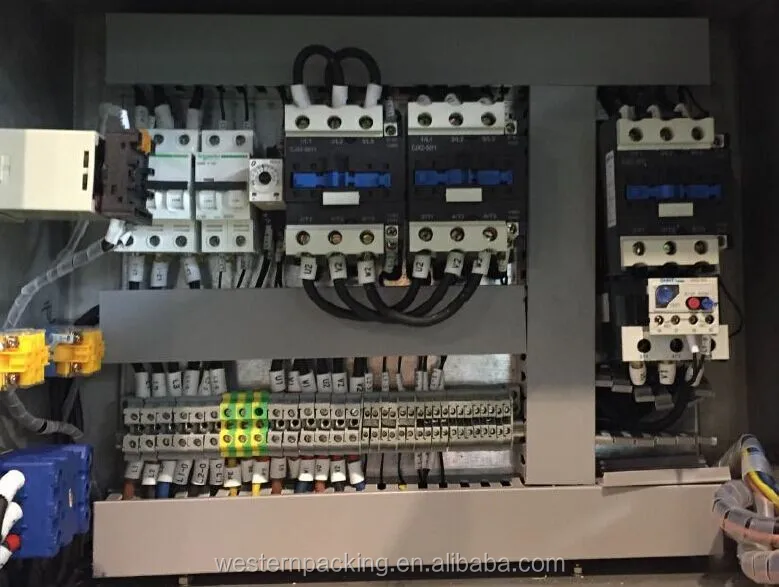

Packaging Detail:	Wooden box;	Control:	PLC Touch Screen;

Product Description

Product Application

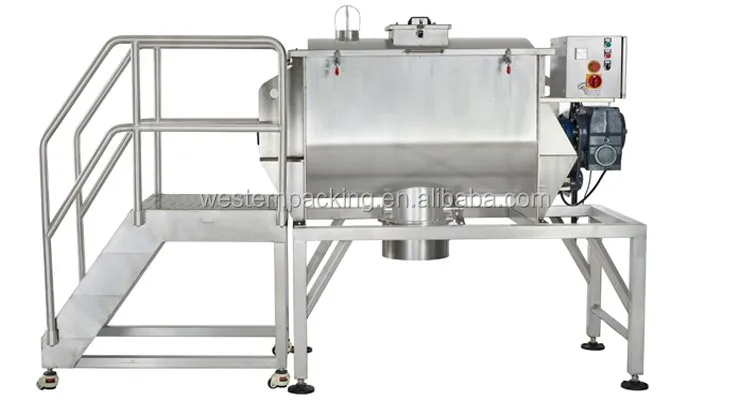

The ribbon Industrial Powder Mixer/ Ribbon Blender/ Powder Mixing Machine is a new type, high efficiency mixing equipment, are widely used in food and chemical industry

SPECIFICATIONS FOR POWDER MIXER
Model	WP-M200	WP-M300	WP-M500	WP-M1000	WP-M1500	WP-M2000
Mixed Volume	200L	300L	500L	1000L	1500L	2000L
Full Volume	280L	420L	420L	1280L	1850L	2400L
Time	0.01S-99H
Overall size	14090145	15310155cm	170120170cm	200130196cm	240140205cm	265152220cm
Total Power	4.5kw	5.5kw	7.5kw	11kw	15KW	22kw
Total weight	250kg	350kg	500kg	700kg	1000kg	1000kg

ribbon Industrial Powder Mixing Machine Main Features

1. Horizontal tank body, need small space but more capacity.
2. Dual screw structure-The inner screw push the material form central to sides and the outer screw push the material from sides to the center to make the material effective mixing.
3.Gear box drive the auger shaft , low noise and low malfunction, long using life
4.U-Shape tank bottom, better for material discharge and cleaning

5.Pneumatic cylinder to control the discharge exit. 6. Gas pressure spring help the top cover easy open.

Certifications

Detailed Images

Machine Parts

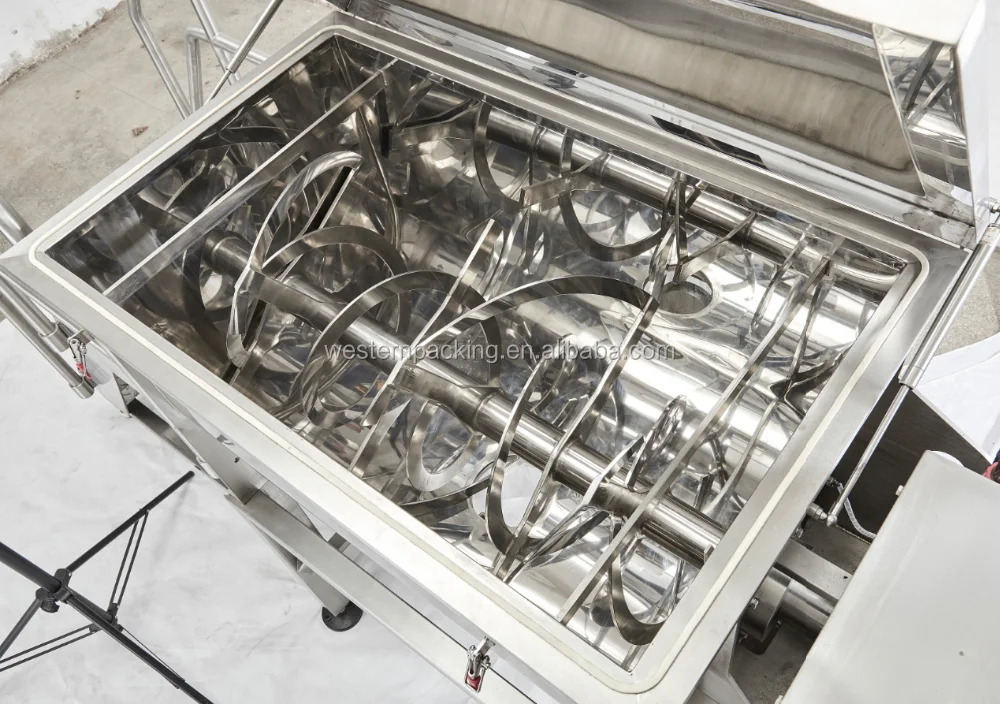

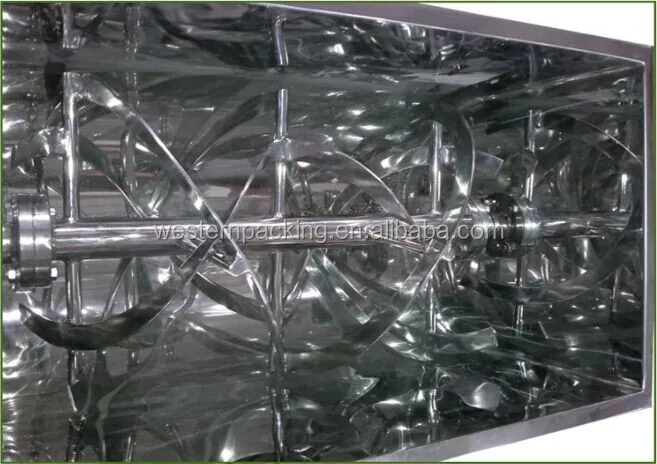

Name: Spiral

The spiral is dual structure:
ribbon Industrial Powder Mixer/ Ribbon Blender/ Powder Mixing Machine Outer spiral make the material move from the sides to the center of the tank and the inner screw conveyor the material from the center to the sides to get the convective mixing.

Main Features

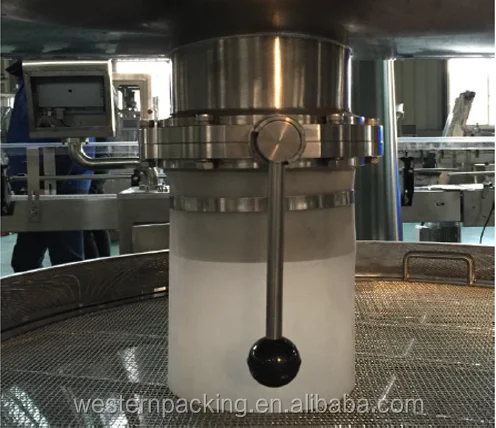

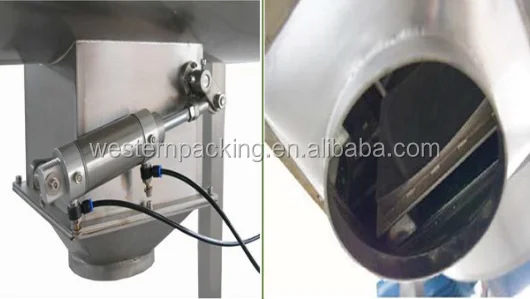

Name: Discharge hole:
Pneumatic valve control discharge hole
No material deposit and without dead angle when mixing

Machine Parts

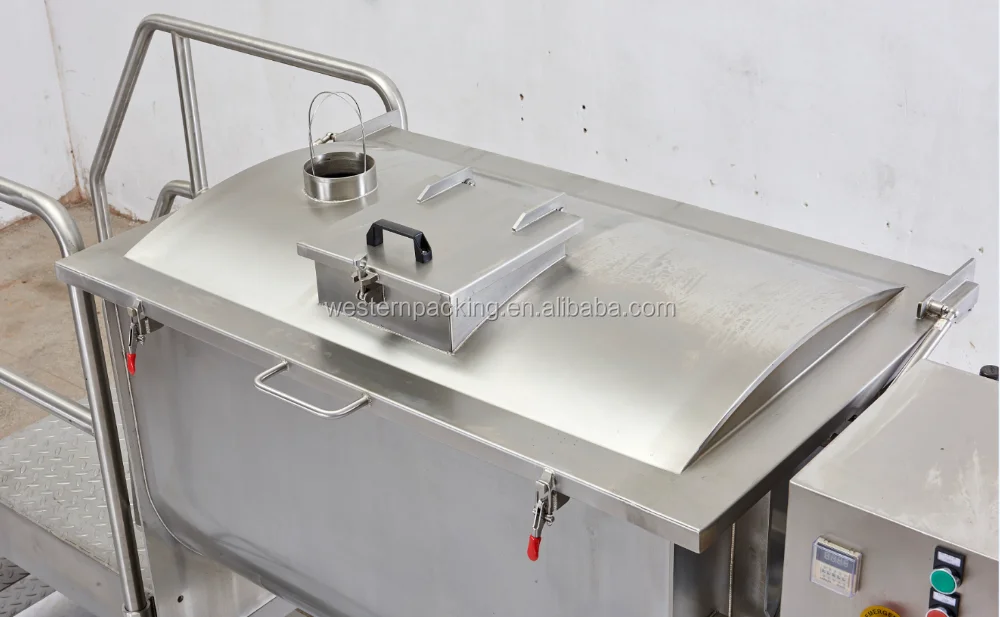

Name: The lid & fence
Mesh net
304/316 S/S
Hot dipped galvanized,Hot dipped galvanised

Main Features

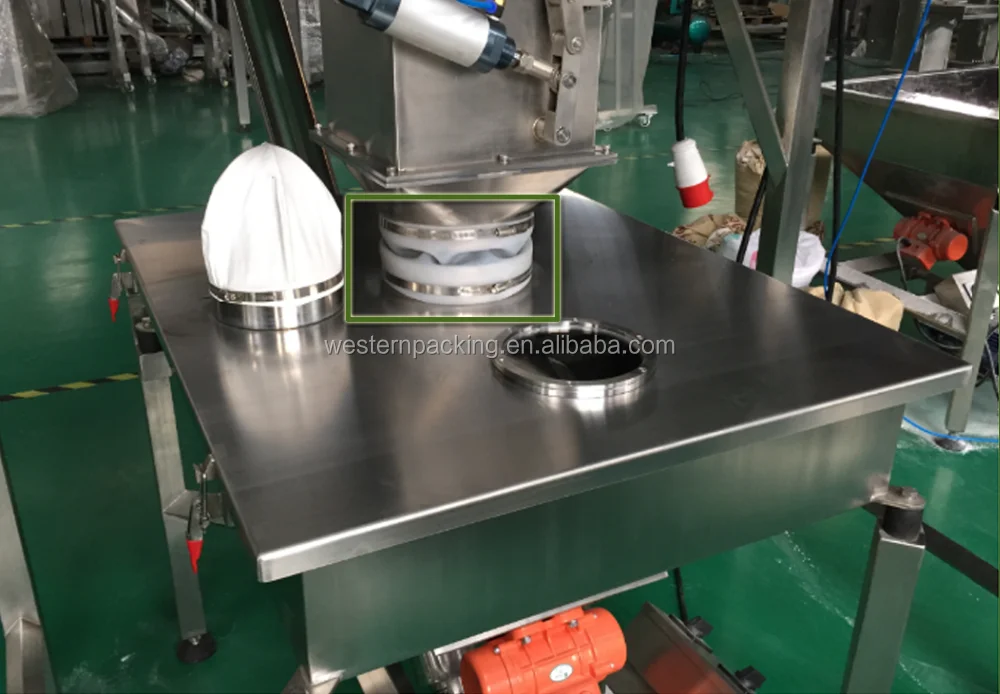

Name: Closed rubber

connection
Feture:
The cubber can effectively prevent dust overflow

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	According to machine dimension
Weight	200-800kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	5-30kg
Packaging Details	Some time we use carton box for small parts and packaging film transportation. Outside we will use pe film for packing or pack it according to customers special request.
