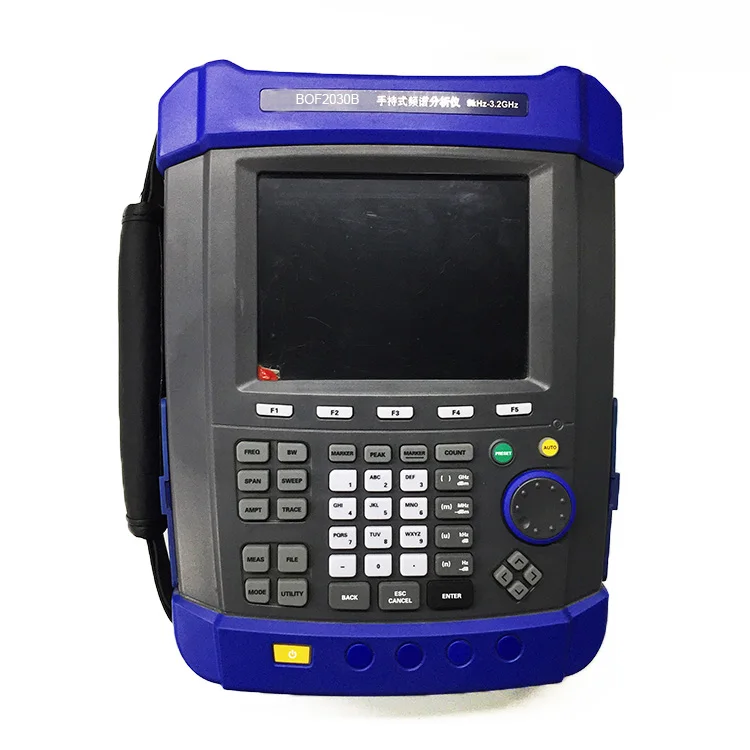

9KHz-3. 2GHz AC coupling 5M-3.2GHZ TG RF digital Portable handheld Spectrum Analyzer

Product details
Working temperature:-10℃ to +50℃;Place of Origin:China;
Reference linput Frequency:10MHz;Frequency resolution:1Hz;
Counter Resolution:1Hz;Reference frequency:10MHz;
Type:handheld spectrum analyzer;Supply Ability:RF digital Portable handheld Spectrum Analyzer;
Model Number:BOF2030A/BOF2030B;Packaging Detail:9KHz-3. 2GHz AC coupling 5M-3.2GHZ TG RF digital Portable handheld Spectrum Analyzer;
Brand Name:rf spectrum analyzer;Frequency range:9KHz-3. 2GHz AC coupling 5M-3.2GHZ TG;
Product name:handheld Spectrum Analyzer;Relative Humidity:<95%;
Marker Resolution:Frequency span)/(number of sweep points-1;Port:Guangzhou, Shanghai, Ningbo;
Payment Terms:L/C,T/T,Western Union,MoneyGram,PayPal, Visa, Master card, e-Checking,Pay Later, Alipay, wechat;

9KHz-3. 2GHz AC coupling 5M-3.2GHZ TG RF digital Portable handheld Spectrum Analyzer

Product Description



Technical specifications:

Model

BOF2030A

BOF2030B

Frequency

Frequency Range

9KHz-3.2GHz AC Coupled

9KHz-3.2GHz AC Coupled 5M-3.2GHz TG

Frequency Resolution

1Hz



Reference Frequency

10MHz



Frequency Readout Accuracy

±(frequency indication*frequency reference uncertainty+1%*span+20%*RBW+marker resolution+1Hz)

Internal 10MHz Reference

Accuracy

Aging rate

tlppm/yeaKOUOXT, Reference is 25‘C)

Temperature stability

±1ppm

Marker Resolution

(Frequency span)/(number of sweep points-1)

Resolution Bandwidth (RBW)

•3dB Bandwidth

10Hz to 1MHz, 1-3-10 sequence

Accuracy

±5% RBW=10Hz^1MHz nominal

Resolution Filter Shape Factor

<5:1 nominal



Video Bandwidth (VBW)

-3dB bandwidth

1Hz to 1MHz, 1-3-10 sequence

Accuracy

±10% VBM=1Hz-1MHz nominal

Displayed Average Noise Level (normalized to1Hz)

9K-1MHZ









Preamp off

-108dBm, typical-127dBm

1MHz-10MHz

-128dBm, typical -146dBm

10MH2 -500MHz

-142dBm, typical -146dBm

500MHz -2.5GHz

-141dBm, typical -145dBm

2.5GHz -3.2GHz

-140dBm, typical -144dBm

9K-1MHz







Preamp on

-131dBm, typical -150dBm

1MHz-10MHz

-148dBm, typical -163dBm

10MHz -500MHz

-161dBm, typical- 164dBm

500MHz -2.5GHz

-159dBmf typical -162dBm

2.5GHz -3.2GHz

-158dBm, typical -161dBm

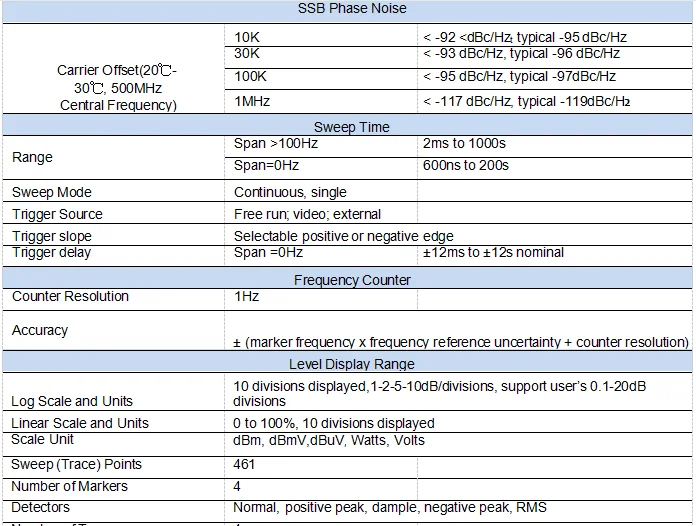

Carrier Offset(20

℃-30℃,500MHz Central Frequency)

10K

< -92 dBc/Hzt typical -95 dBc/Hz

30K

< -93 dBc/Hz, typical -96 dBc/Hz

100K

< -95 dBc/Hz, typical -97dBc/Hz

1MHz

< -117 dBc/Hz, typical -119dBc/H2

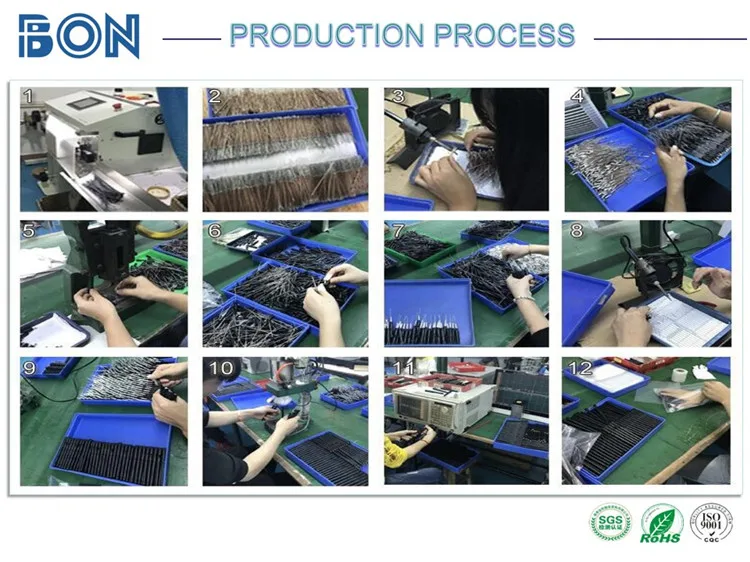

Production process
