1 ton mini wheel loader backhoe loader mechanical loadering

Supplier: Shandong Kelesi Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Joy Lin
Price: $3730.00 /set
Min. Order: 1 set

Click here to contact

Product details

Moving Type:	Wheel Loader;	Hydraulic Pump Brand:	Eaton;
Product name:	1 ton mini wheel loader backhoe loader mechanical loadering;	UNIQUE SELLING POINT:	High load Moment;
Brand Name:	ICLES;	Model:	ICLES 910;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ,Energy & Mining;	Engine:	20kw;
Type:	Mini Loader;	Name:	wheel loader;
Dimension(Long * Breadth * High):	4690x1650x2560mm;	Operating weight:	2200kg;
Color:	Yellow;	Selling Units:	Single item;
Bucket capacity:	0.4CBM;	Single package size:	415X135X235 cm;
Engine Brand:	CHANGCHAI;	Place of Origin:	Shandong China;
Dumping height:	1000kg;	Single gross weight:	900 KG;
Warranty:	12 months;	Other Attachments:	mixing bucket,wheatgrass fork,wood grasping fork;
Condition:	New;	Package Type:	Packaged In Wooden box,or according customer requirement.;
Keyword:	1ton Wheel Loader;	After-sales Service Provided:	Video technical support, Online support, Free spare parts;

Product Description

1.High lifting force, automatic leveling of high dump, short operating time of working device, improve the operating efficiency of the whole machine

2.Gas cap oil assisted brake system,caliper disc brake.

3.Separate torque converter, not easy high temperature, easy to maintainSeparate torque converter, not easy high temperature, easy to maintain

4.Tilting front frame,unload far from the car body,heavy lift.

5.Pilot valve hydraulic operation, optional air conditioning.

Technical data for 1 ton mini wheel loader backhoe loader mechanical loadering

Rated load	1ton
Operating weight	2200kg
Engine	24Horsepower
kw Rated power	18kw
Dump height	2500mm
Dump distance	800mm
Min.turning radius	3000mm
Transminssion Type	4-wheel mechanical transmission
Tire	750-16
Overall dimension (LxWxH )	4690x1650x2560mm

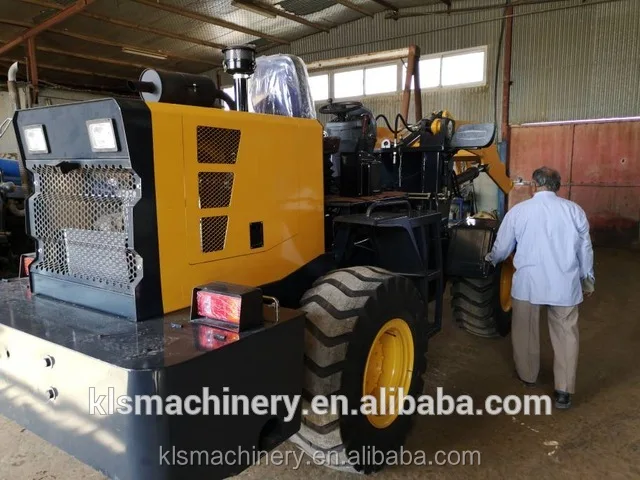

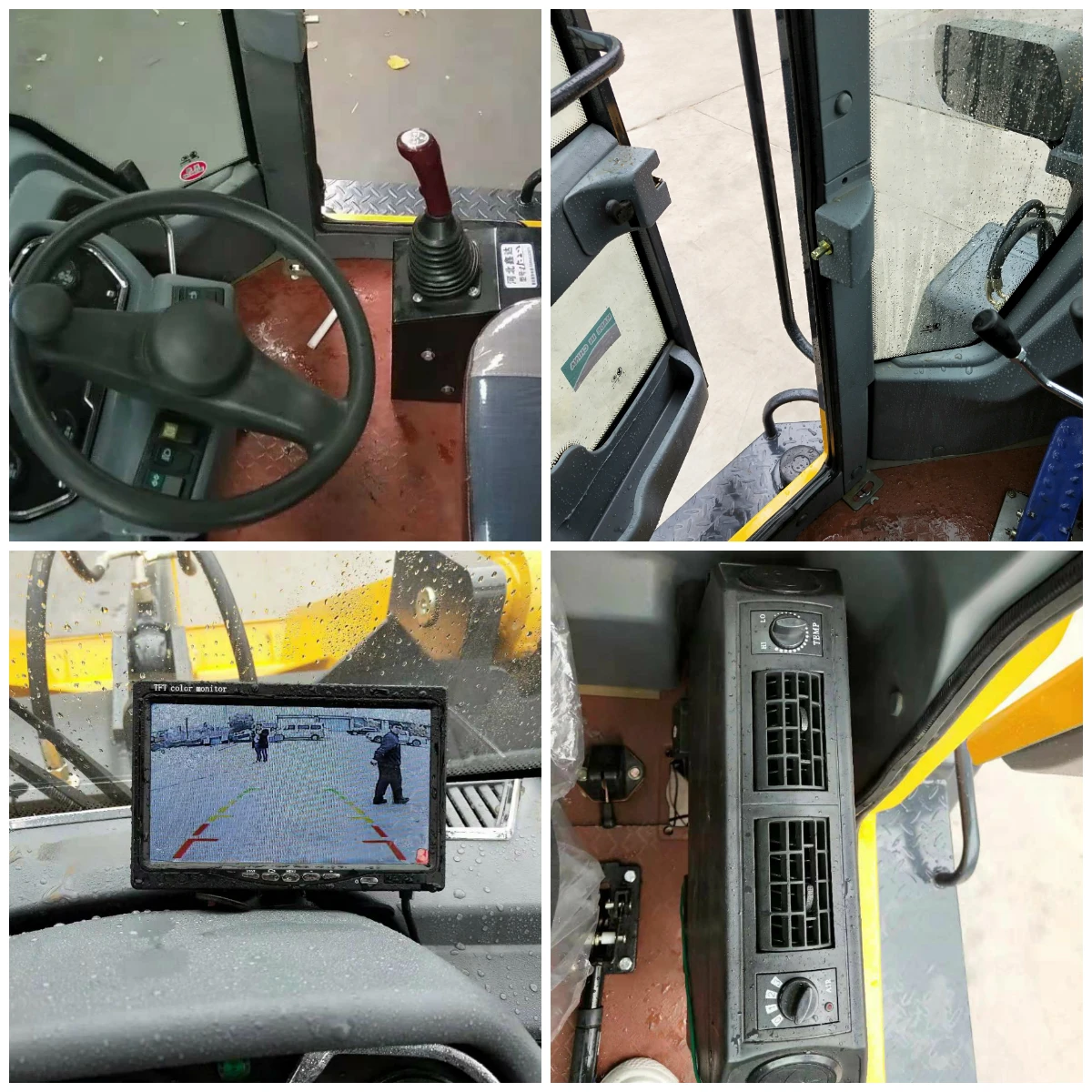

Customers from Saudi Arabia have purchased our ZL940 loader, which is equipped with air conditioner and reversing image, enabling you to have a more comfortable working environment without fear of cold and hot weather.
