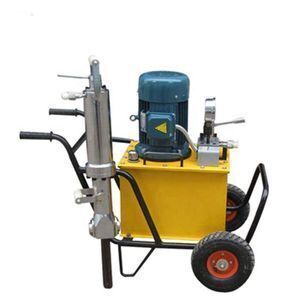

hand hold hydraulic stone splitter rock Splitter machine

Supplier: Shandong Kelesi Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Joy Lin
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Packaged In Wooden box, or according customer requirment.;	Motor Type:	Other;
Usage:	Rock Separate;	Brand Name:	ICLES;
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service;	Condition:	New;

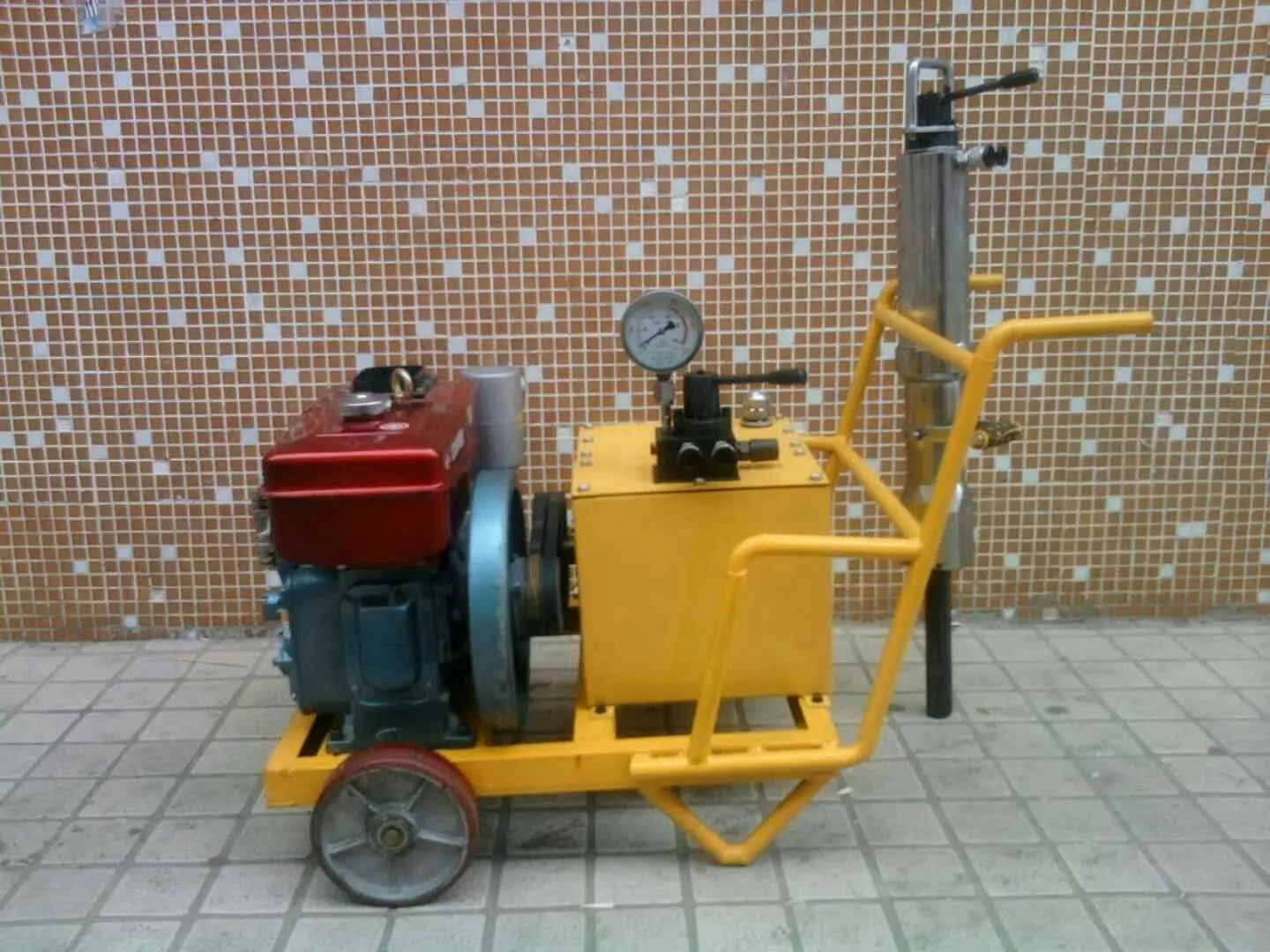

Pump pack type:	Diesel Engine Oil Pump;	Item:	Hydraulic Rock Breaker;
Name:	Hydraulic Rock Splitting;	Warranty:	1 Year;
Splitting Diameter:	40-50mm;	Place of Origin:	Shandong China (Mainland);
Application:	Stone;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;
Dimension(LWH):	Specification;	Port:	Qingdao,Shanghai;
Wedge length:	250/350/450mm;	Key word:	Hydraulic Rock Splitter Used;
Supply Ability:	1000 Set/Sets per Month;	Type:	Rock Splitter;

Product Description

Product Application

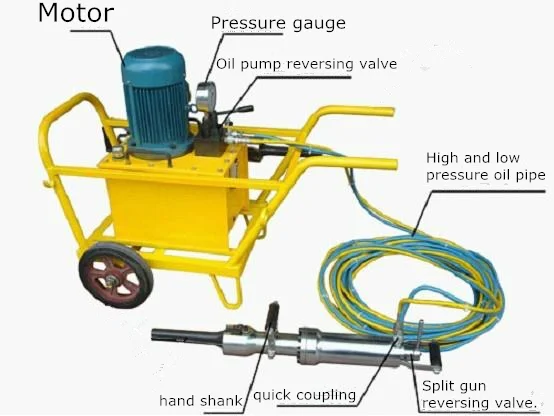

Hydraulic rock splitter machine is a new type of mining and building blasting equipment with high performance, high quality and high standard,mainly by the ultra-high pressure hydraulic pump station and large-scale alternative to the traditional blasting broken stone two major components.

model	FD-P40	FD-P42	FD-P44	FD-P46	FD-P48
Drilling diameter	40-42mm	42-44mm	44-46mm	46-48mm	48-50mm
Cylinder in Dia	80mm	90mm	100mm	105mm	110mm
Wedge length	250mm	250mm	250mm	350mm	450mm
Minimum drilling depth	500mm	500mm	500mm	650mm	750mm
Crack width	12-50mm	12-50mm	12-50mm	12-50mm	12-50mm
Splitting time	5-12s	5-12s	5-12s	5-12s	5-12s
Theoretical cleavage force	580T	639T	758T	865T	900T
Actual splitting force	410T	590T	629T	750T	800T
Unit weight	29kg	33kg	36kg	39kg	43kg

Main Features

1.Used for mining of large mines metallic ores, non-metallic ores.
2.Real estate foundation, subway tunnel, non-excavation top pipe pipeline project, railway highway construction project, and other geotechnical engineering
3.Earthquake disaster relief, the rock in emergency, no vibration, no blasting clearance

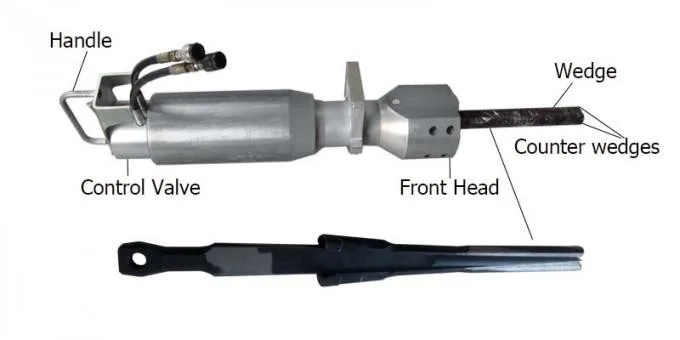

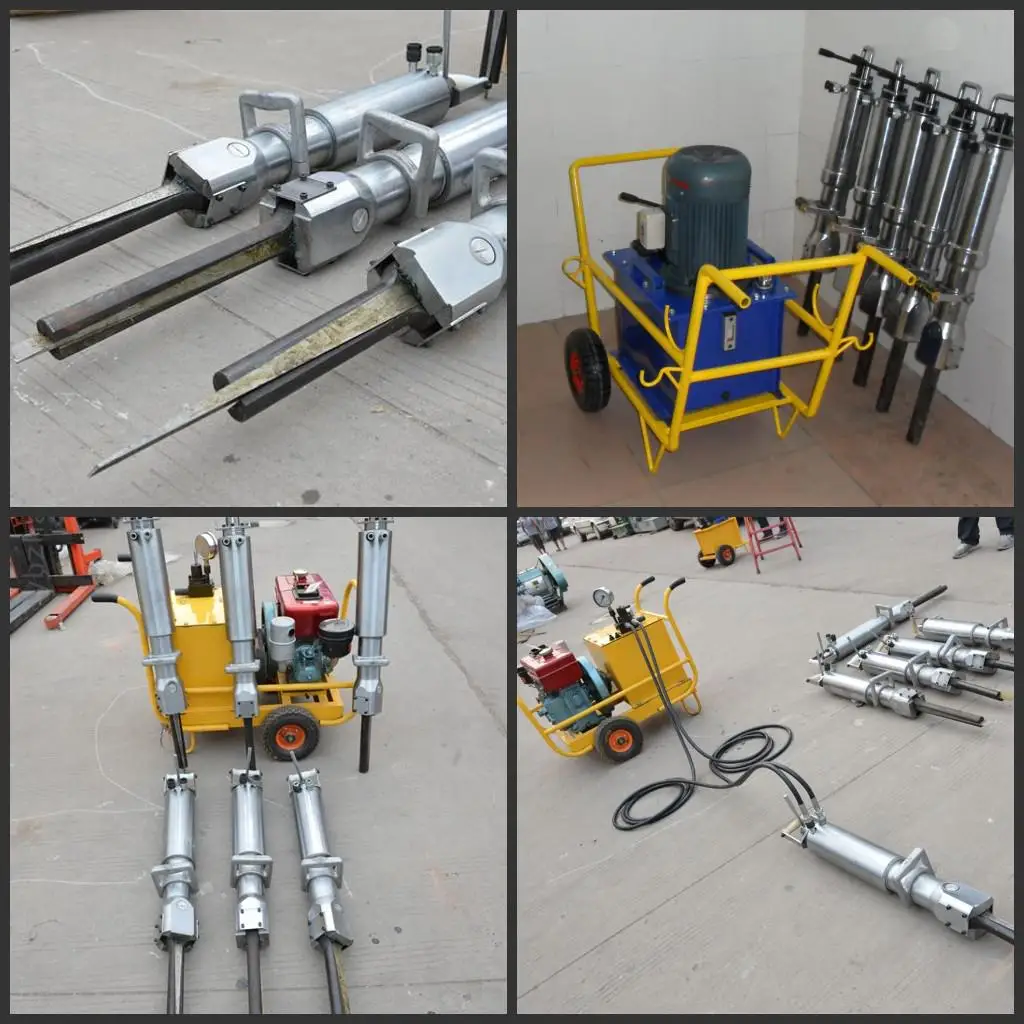

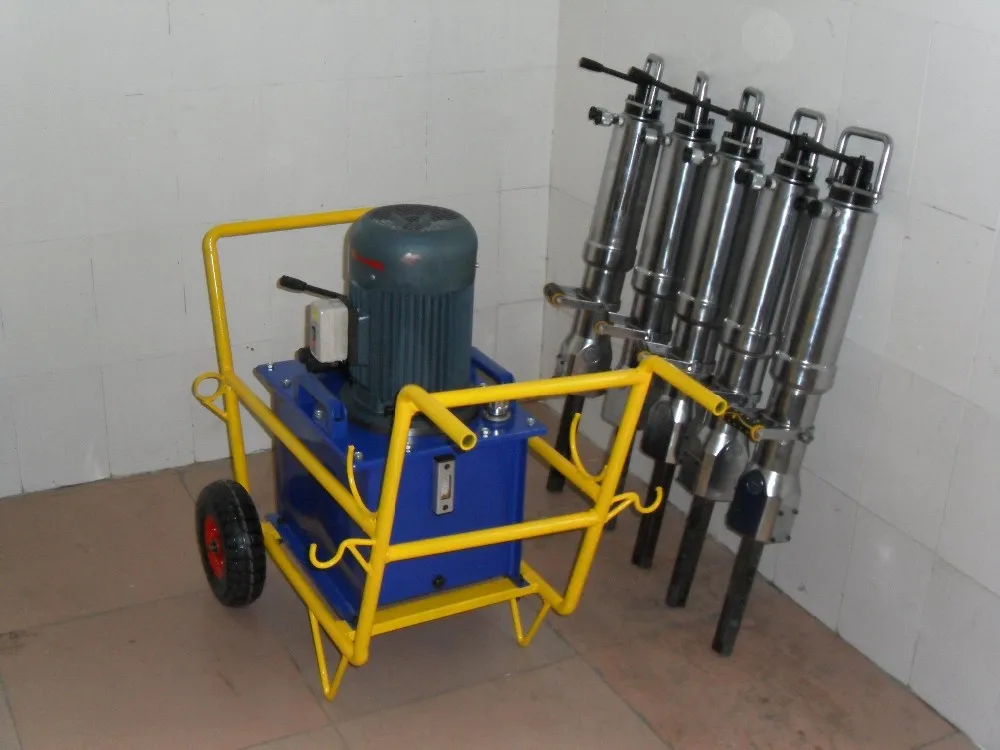

Detailed Images

Product advantages:
1.No vibration, no stone splash, safety and environmental protection.
2.Easy to adjust the crushing direction and crushing amount.
3.Ultra high oil pressure imported oil station, divided time controlled in 1 minute.
4.Compared with traditional blasting construction, construction cost is low.
5.Construction efficiency: six column splitters can precrack 6-10 cubic meters within a minute of medium hard rock.

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

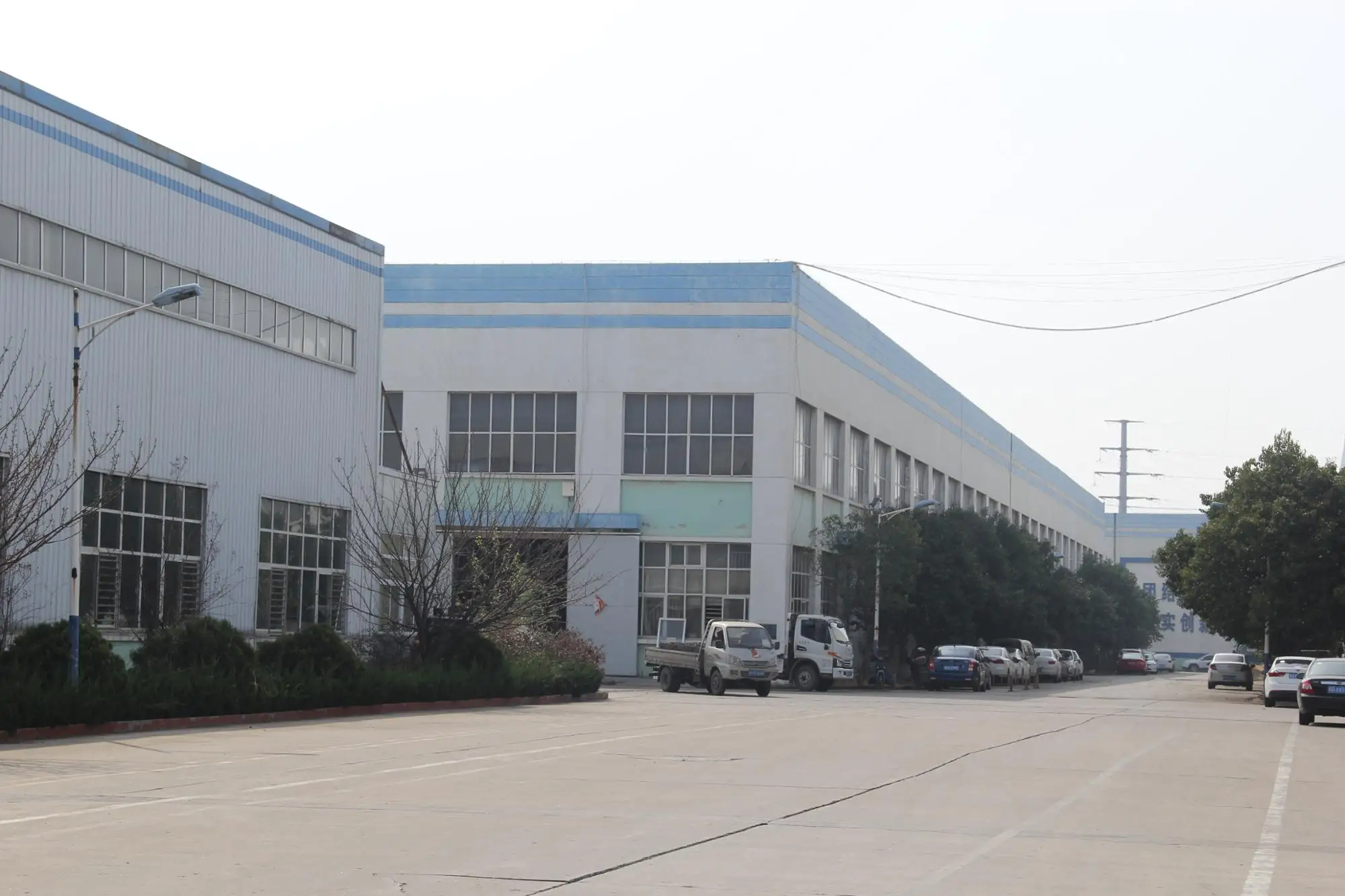

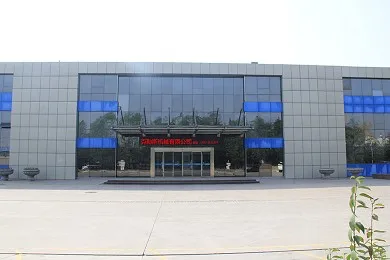

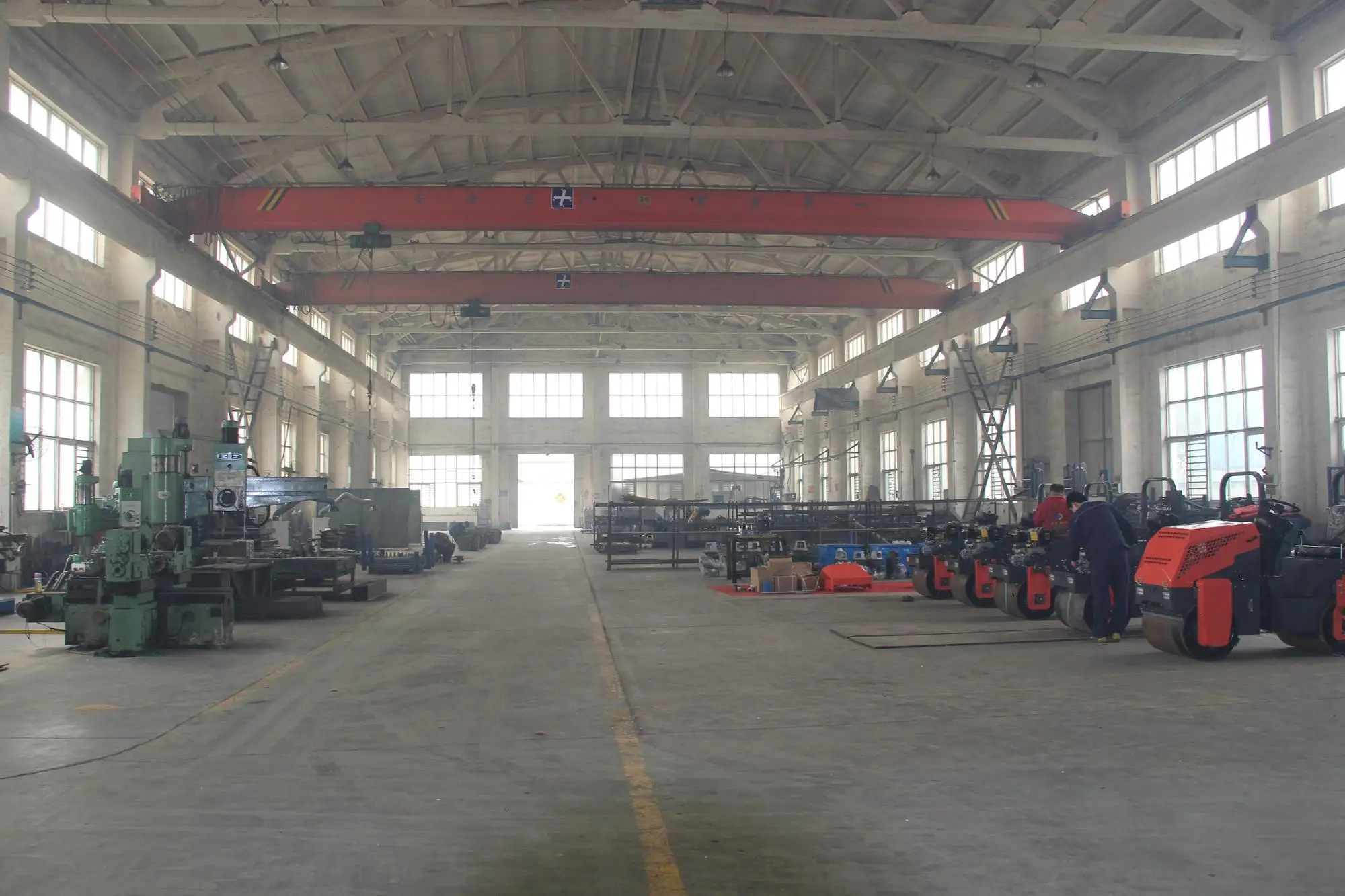

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

*Warranty 12 months

Packing & Delivery

Packaging
Size	123 (L) * 456 (W) * 789 (D)

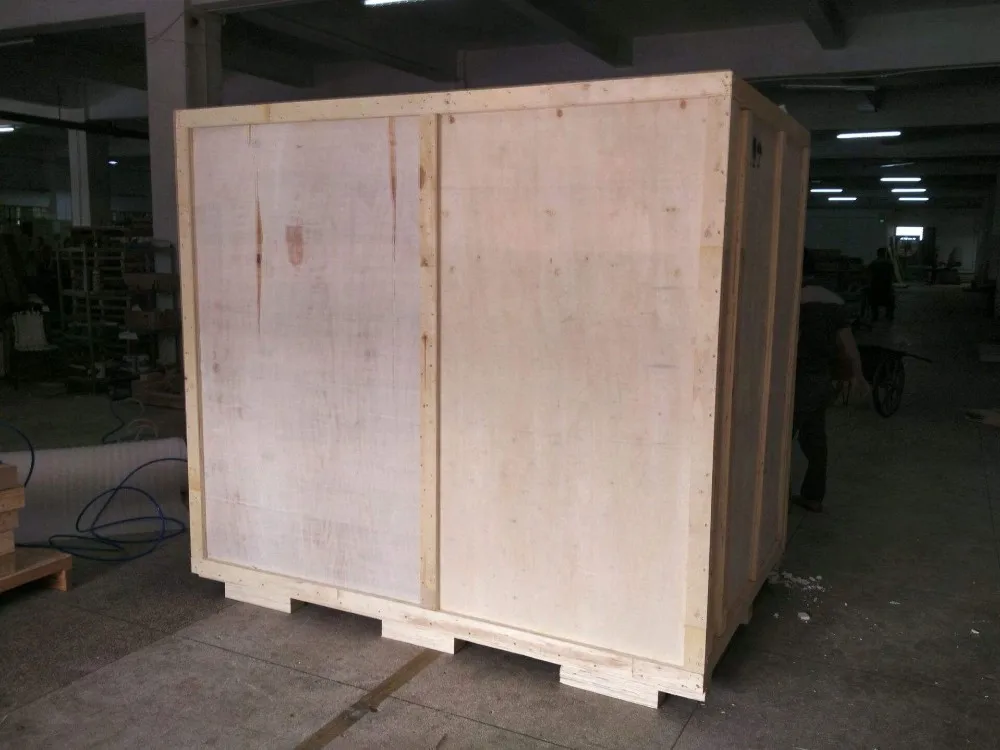

Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
