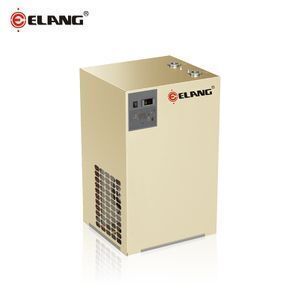

Elang Industrial Integrated Refrigerated Compressed Air Dryer for Screw Air Compressor

Product details
Port:Shanghai, any port in China;Brand Name:Elang;
Applicable Industries:General Industry;Product Name:Elang Industrial Integrated Refrigerated Compressed Air Dryer;
Certification:CE/ISO9001/TUV/UL/SGS/ASME;Place of Origin:Shanghai China;
Payment Terms:L/C,D/P,T/T,Western Union;After-sales Service Provided:Engineers available to service machinery overseas;
Supply Ability:600 Set/Sets per Month;Dew Point:5 ~10℃;
Packaging Detail:Standard exporting packing for Elang Industrial Integrated Refrigerated Compressed Air Dryer for Screw Air Compressor.;Voltage:230V 1Ph 50Hz;
Warranty:1 Year;Type of Cooling:Air cooling;
Model No:D13 - 260;Type:Air Dryer;
Elang Industrial Integrated Refrigerated Compressed Air Dryer for Screw Air Compressor
Product Name:
Elang Industrial Integrated Refrigerated Compressed Air Dryer for Screw Air Compressor
Dew Point: 5 ~10℃
Max. Inlet Temperature: 55℃
Max. Ambient Temperature: 45℃
Voltage: 230V 1Ph 50Hz
Cooling Method:Air cooling

There are more parameters below.





Elang D13-260 series Air dryer protects the user’s compressed air system by forced cooling to reduce the moisture content in compressed air, minimum pressure dew point 5℃.

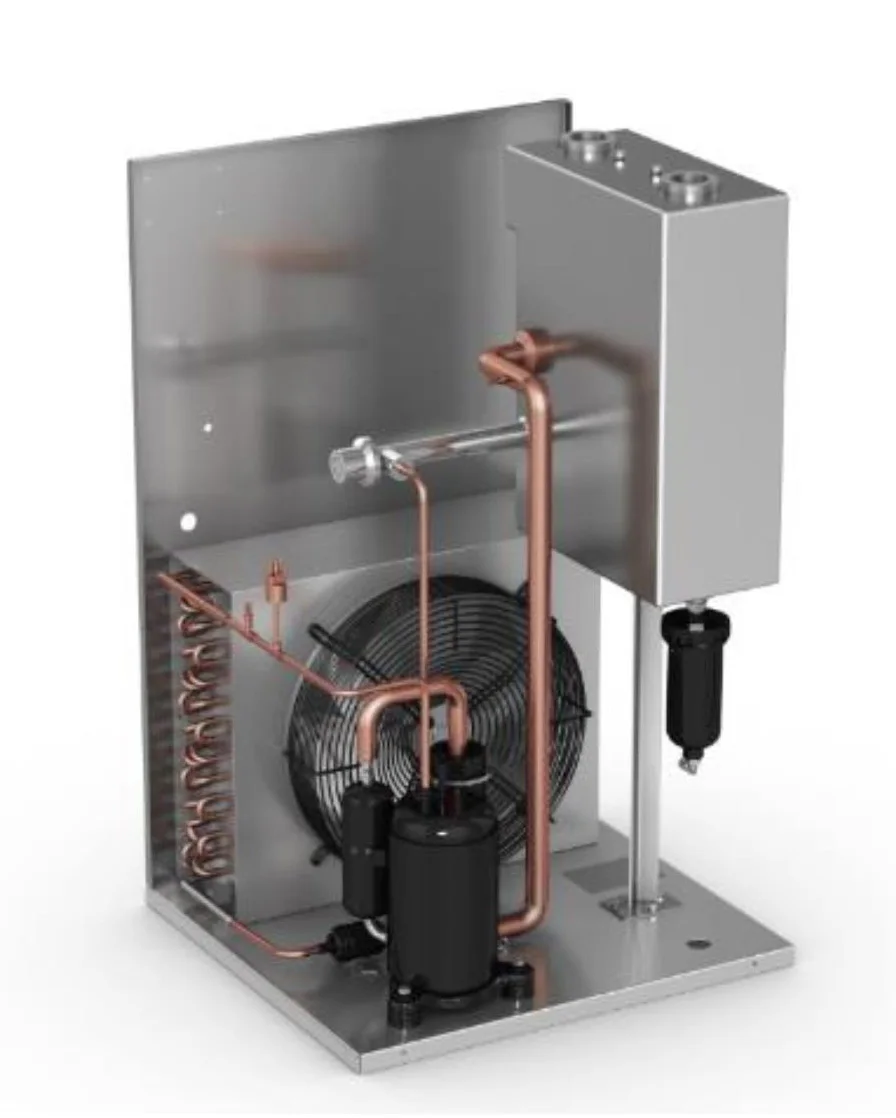

Integrated design with precooler, evaporator and separator, high-efficiency heat exchange plate-fin heat exchanger ensures that the dryer provides industrial grade drying solutions; The refrigeration system uses low-energy refrigeration compressors, air-cooled condensers, environmentally friendly refrigerants R134A and R410A, and the whole machine is environmentally friendly and energy-saving. It features the new intelligent controller: It combines dew point display and fault alarm function.

Reliable operation, leave out maintenance troubles.
Industrial grade imported motor refrigeration compressor.
Advanced piping design, few welds in the industry, reducing the risk of refrigerant leakage.
Assembly line install, strict factory leak detection, pressure-tight test.


Simple design, small size and easy operation.
Integrated design with precooler, evaporator and separator, more compact.
The succinct appearance design ensures the convenience of field installation.
New Intelligent Controller: It integrates dew point display and fault alarm functions.



Specification:

Elang D13-260 Technical Parameters
ModelCapacityDimensionPowerWeightRefrigerantOutlet ConnectPre-filterPost filter
m3/minmmWKgG
D131.3550*370*70440030R134aG3/4"PF18FGPF18FC
D212.1550*370*70445334R134aG3/4"PF25FGPF25FC
D404520*500*80984355R410AG1"PF60FGPF60FC
D666.6520*500*809117060R410AG1.5"PF105FGPF105FC
D858.5550*600*958120068R410AG1.5"PF105FGPF105FC
D10510.5550*600*958131275R410AG2"PF105FGPF105FC
D14014900*750*10092143110R410AG2"PF140FGPF140FC
D17517.5900*750*10092170126R410AG2"PF175FGPF175FC
D220221050*660*11304100140R410AG2.5"PF260FGPF260FC
D260261050*660*11304300162R410AG2.5"PF260FGPF260FC



Advantages:

  • Refrigeration Compressor
    Adopt professional industrial compressor.
    Environment protection refrigerant.
    High efficiency.

  • Air Heat Exchange + Evaporator + Separator Three-in-one Structure
    Three-in-one structure, more compact
    Patented built-in separator ensures higher separation efficiency
    Integrated design, maintenance free

  • High Efficiency Heat Exchanger
    1.Plate fin type heat exchanger,high heat exchange efficiency, guarantee the lowest energy consumption.
    2.Ensure minimum inlet and outlet temperature difference, increase outlet temperature and reduce relative humidity.

  • Air Condenser, Expansion Valve
    The air condenser designed according to extreme working situation, can adapt to poor use environment.
    Equipped with a high quality expansion valve to ensure good throttling and pressure reduction.

  • Reliable Electronic Drainer
    The automatic electronic drainer can discharge regularly according to the actual working conditions.



About Elang

FAQ

Q1:  Why customer choose us?

A:  ELANG INDUSTRIAL (SHANGHAI) CO., LTD., with 18 years old history, we are specialized in Rotary Screw Air Compressor. Germany Standard and 10years exporting experience help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.

Q2:  Are you a manufacturer or trading company?

A:  We are professional manufacturer with big modern factory in Shanghai,China. Both OEM & ODM service can be accepted.

Q3:  What's your delivery time?

A:  Generally 3 to 7 days, if urgently order, pls contact our sales in advance.

Q4:  How long is your air compressor warranty?

A:  One year for the whole machine and two years for screw air end, except consumble spare parts.

Q5:  How long could your air compressor be used?

A:  Generally, more than 10 years.

Q6:  What's payment term?

A:  T/T, L/C,  D/P,  Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.

Q7:  How about your customer service?

A:  24 hours on-line service available. 48hours problem sovled promise.

Q8:  How about your after-sales service?

A:  1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3. Worldwide agents and after service avaiable.
