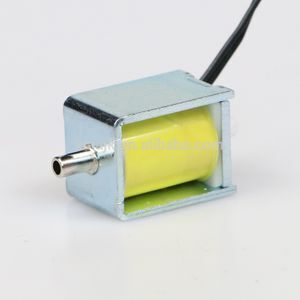

Manufacturer Normal Close 2-way 1-position Super MIni NC Inflation Solenoid Valves
-
Supplier: Xiamen AJK Technology Co., Ltd. -
Region: Fujian, China -
Contact: Mr Kevin Deng -
Price: $1.15 /piece -
Min. Order: 1 piece
| Packaging Detail: | EPS tray and carton box If You Have Any Questions Or Needs, Please Contact Me.; | Model Number: | AJK-F0504; |
| Max. pressure: | 300mmHg; | Place of Origin: | Fujian China (Mainland); |
| Application: | General; | Certificate: | CE ROHS; |
| Product name: | 2-way 1-position Super MIni NC Inflation Solenoid Valves; | Feature: | Long Life,High Efficiency,Energy Saving; |
| Brand Name: | AJK; | Material: | Plastic,Metal; |
| Keyword: | normal close Small Solenoid Valve; | Power: | Solenoid; |
| Pressure: | High Pressure; | AC/DC Voltage: | DC 3.0~24.0V; |
| Port: | XIAMEN; | Payment Terms: | L/C,T/T,Western Union; |
| Type: | 2-way 1-position; | Media: | Gas; |
| Warranty: | One Year; | Structure: | Diaphragm; |
| Temperature of Media: | Normal Temperature; | Free Flow: | <1s (50CC 280mmHg to 15mmHg); |
| Supply Ability: | 500000 Piece/Pieces per Month 2-way 1-position Normal Close DC Solenoid Valve; | Application: | alve for Breast pump/Medical products; |
2-way 1-position Normal Close DC Solenoid Valve

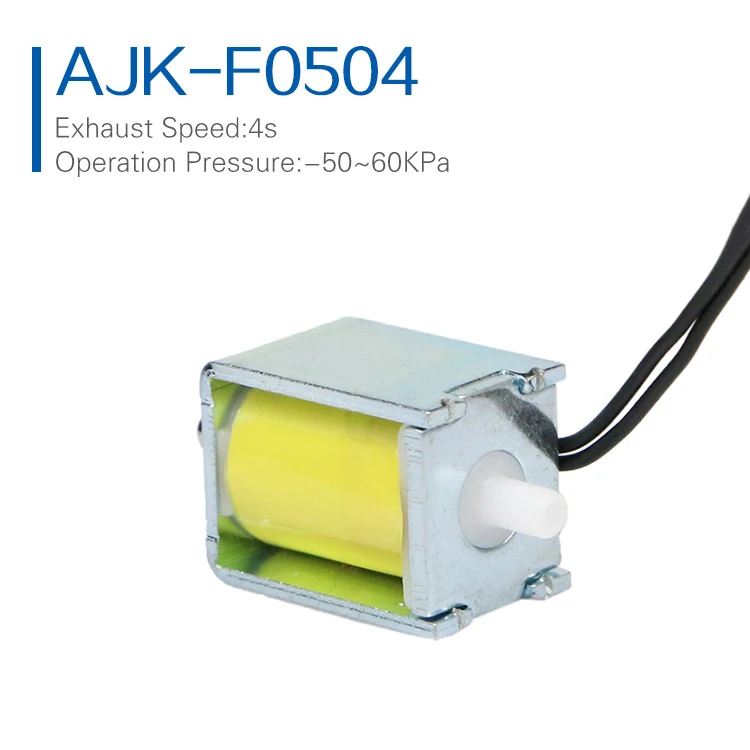

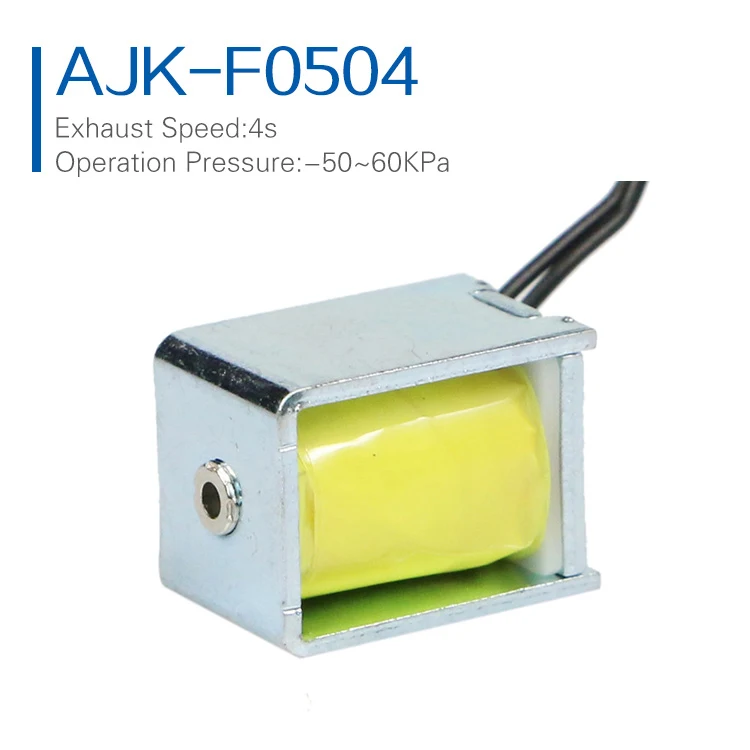

| Mini Solenoid Valve AJK-F0504 | |
| Rated Voltage | DC 6V,12V |
| Rated Current | 375mA@6V,400mA@12V |
| DC Resistance | 16Ω±10%@6V,30Ω±10%@12V |
| Rated Power | 2.25W@6V,4.8W@12V |
| Pressure | < 350 mmHg |
| Leakage | < 3 mmHg/minute |
| Exhaust Speed | < 4 Second(From 280mmHg to 15mmHg in a 100CC tank) |
| Pipe Diameter | Φ 3 mm |
| Dimension | 15*13*20 mm |
| Application | 1-WAY 2-POSITIONs,Normal close,Widely used in medical device, massage equipment, beautify machines, etc , |
If you want to know more products information, please click on the below picture:
If you want to know more Solenoid Valve , pls click the link.
Our Services
1. OEM / ODM welcome.
2. Competitive advantage mini air pump, mini water pump, mini air valve.
3. No MOQ & small order & sample order welcomed.
4. We will reply you for your inquiry in 24 hours.
5. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
6. 24*7 After sale service.
7. We accept Paypal & Trade Assurance.
8. With us your money in safe,your business in safe.
-
