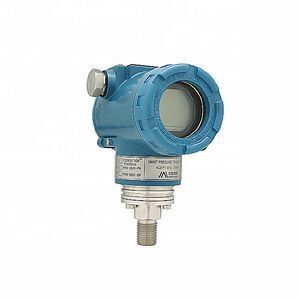

4-20Ma Hart FF PA DP Smart Pressure Differential Transmitter Sensor Transducer

Supplier: Microcyber Corporation
Region: Liaoning, China
Contact: Ms Microcyber Corporation
Price: $385.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Absolute Pressure Sensor's Range rate:	20°C, range rate 10:1 (Pressure Differential Transmitter);	Model Number:	PT105IIS;
Pressure Sensor's Stability:	Up to ±0.1% of Upper Range Limit (URL) for 1 year;	Pressure Transmitter's Explosion-proof:	Ex ia II C T4 Ga, Ex d II C T4/T6 Ga, IP65;
Supply Ability:	4-20Ma Melt Hart FF PA DP Smart Absolute Pressure Sensor;	Brand Name:	Microcyber;
Pressure Sensor's Power (explosion):	9~17.5VDC(FF,PA; explosion-proof);	Pressure transmitter's Power:	11.9~30VDC(HART; explosion-proof);
Place of Origin:	China;	Packaging Detail:	Pressure transmitter will be in carton. Microcyber Corporation export packaging carton standard: GB/T 5033-1985 "corrugated carton for export products packaging", corrugated carton processing USES corrugated board stipulated in GB5034-85 "corrugated board for export products packaging".;
Pressure transmitter's Power(HART):	11.9~42VDC(HART)(Pressure Differential Transmitter);	Pressure Transmitter's Output Signal:	4-20mA/HART/FF/PA (Pressure Differential Transmitter);
Pressure Transducer's Measure Object:	liquid/gas/stream (Pressure Differential Transmitter);	Pressure Transmitter's Power(FF,PA):	9~32V dc(FF,PA)(Pressure Differential Transmitter);
Pressure Sensor's Accuracy:	0.075%FS(Pressure Differential Transmitter);	Payment Terms:	L/C,T/T;

Product Description

4-20Ma Melt Hart FF PA DP Smart Absolute Capacitance and Piezoresistance Silicon Pressure Differential Transmitter Sensor

Product Overview

NCS-PT105IIS series Smart Pressure Transmitter with advanced, mature, reliable Piezoresistive Silicon Sensors has been designed meticulously by combining advanced microprocessor technology and digital capacitance measurement techniques. Its LCD can display many physical parameters such as pressure, temperature, current. It can be realized zero adjustment, range settings and other features by key-press operation, and easy to on-site tests.

NCS-PT105IIS series Smart Pressure Transmitter supports HART, FF H1, Profibus PA, Profibus DP protocol and can measure pressure, differential pressure, liquid level, flow, and other industrial parameters. It can be widely used in the petroleum, chemicals, electricity, and metallurgical industries, etc.

Features

Excellent performance

Performance up to 0.075% of accuracy

Gauge pressure, absolute pressure

Flexibility

Automatically environmental temperature compensation

Parameters can be set by magnetic sticks, communicator, HOST software

Reliability

Measurement media: liquid, gas and stream

HART®, FOUNDATION™ Fieldbus, PROFIBUS®

Up to ±0.1% of Upper Range Limit (URL) for 1 year

Details

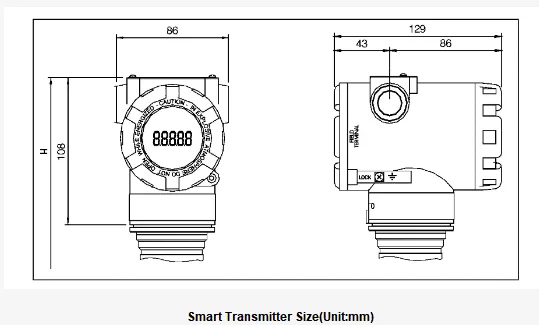

SIze

Parameters

Model	Type	SG	SA
NCS-PT105ⅡS SG	Gauge pressure transmitter	Y	N
NCS-PT105ⅡS SA	Absolute pressure transmitter	N	Y

Code	Range
0	200 mbar(20 kPa)
1	350 mbar(35 kpa)
2	1bar(100 kPa)
3	3.5 bar(350 kPa)
4	7 bar(700 kPa)
5	10 bar(1 MPa)
6	25 bar(2.5 MPa)
7	35 bar(3.5 MPa)
8	60 bar(6 MPa)
9	100 bar(10 MPa)
A	350 bar(35 MPa)

Code	Range
F	FF protocol
P	PA protocol
H	HART protocol

Code	Range	SG	SA
Code	Material of process connection	SG	SA
Code	Material of screw thread and flush fitting diaphragm	SG	SA
1G	Screw thread ISO 228 G 11/2A,304	Y	Y
1K	Screw thread ISO 228 G 2 A,304	Y	Y
2D	Screw thread ANSI 1/2 MNPT,304	Y	Y
2G	Screw thread ANSI 2 MNPT,304	Y	Y
1R	Screw thread DIN l3 M 44×1.25,304	Y	Y
Code	Material of process connection	SG	SA
Code	EN/DIN flange and flush fitting diaphragm	SG	SA
CP	DN 32 PN 25/40 B1,304	Y	Y
CQ	DN 40 PN 25/40 B1,304	Y	Y
B3	DN 50 PN 25/40 A,304	Y	Y
C3	DN 50 PN 63 B1,304	Y	Y
B4	DN 80 PN 25/40 A,304	Y	Y

Cases

Packaging & Shipping

The lap width of corrugated carton shall not be less than 30mm.The carton shall be nailed with diagonal or horizontal nails. The box nails are neatly arranged and evenly spaced. Double stitching distance should not be more than 75mm, single stitching distance should not be more than 55mm, head and tail stitching distance from the middle line of indentation should not be more than 20mm, box nails must be completely nailed on the joint. Corrugated carton pressure bearing capacity to meet the requirements of products and transport links.

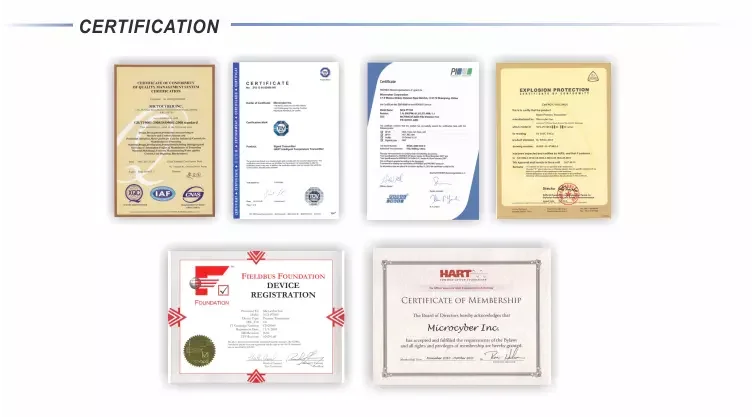

Certifications

FAQ

Q:What are the contents of the retool inspection of the intelligent transmitter?

A:The content of retuning inspection of intelligent transmitter includes two aspects: function check and pressure check.

Q:How does a pressure transmitter work?

A:It is based on 3151 capacitive pressure sensor, using advanced microcontroller and sensorDigital measurement technology, the application of high accuracy algorithm, to ensure that the pressure signal of high precision measurement.wisdom

Q:What bus technology is used in the communication interface of intelligent transmitter?

A:The communication interface of intelligent transmitter is advanced HART, FF H1, PROFIBUS PA bus technology.

Q:How many parts does an intelligent transmitter consist of?

A:The intelligent transmitter has the same logical structure and is composed of five parts: sensor, instrument card, communication card, liquid crystal display card and terminal card.
