Paper pulp tissue paper making jumbo roll machine price

Product details
Package Type:1. Seaworthy export packing 2. Standard export packing 3. As per customers' requirement;Dimension(L*W*H):As per model;
Voltage:380V 50Hz;Design Speed:250 m/min;
Selling Units:Single item;Condition:New;
Grammage:13-38g/m2;Application:Tissue paper making mill;
Raw material:Virgin Pulp;Product name:paper making machine;
Certification:ISO9001:2008;Paper width:1092-2880mm;
Warranty:One Year Guarantee Time;Capacity:3-15 t/d;
Computerized:No;Place of Origin:Shandong China;
Package Preview:https://sc01.alicdn.com/kf/H39cf63b1b1b544a9b321e1ad0ec1e4c1J.jpg_640x640.jpg;Production Capacity:99%;
Single gross weight:1 KG;Working speed:130-200 m/min;
Brand Name:Xuridong;Color:Blue;
Type:Pulping Equipment;Function:Tissue paper making;
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;Single package size:1X1X1 cm;
Weight:5t-50tons;After-sales Service Provided:Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support;

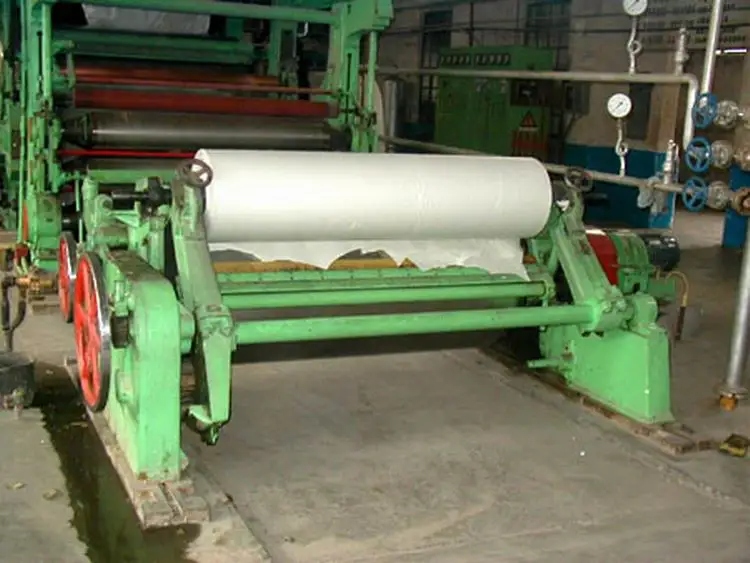

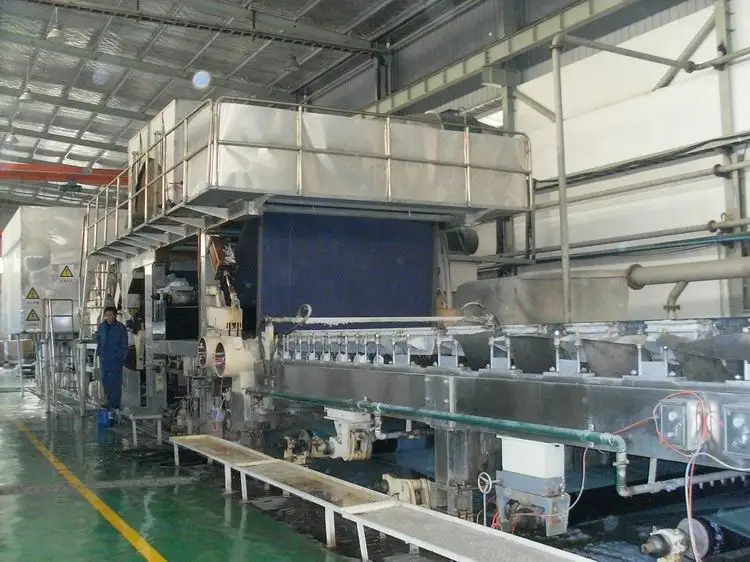

Paper jumbo roll Tissue paper making machine



Function & application

The machine is mainly suitable for making low quantitative, high grade tissue paper and cultural paper.

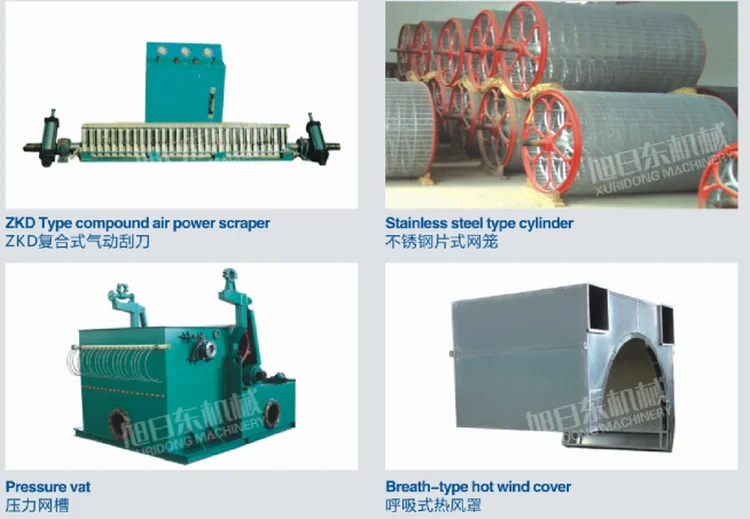

 It spurns the old cylinder paper machine’s abuse of speed, high quantitative, low efficient, complicated operation and so on, and changes the common cylinder mould cage into slanting dehydrating mould cage, and change activity arc type board headbox into press headbox, and changes normal atmospheric pressure formation into compressing formation, and changes manual compression into pneumatic compression, and changes the scrapper into moving scrapper, and other more than 10 kinds of improvement. The machine has high degree of automatic and is easy to operate. It’s main features: low feeding pulp consistency, high pressure, evenness, quick moulding and good evenness; large output, low energy, compact structure, steady operation. It is the update production of the normal cylinder mould paper machine.







Feature & benefit

1. Paper grade: Toilet paper, facial tissue, paper napkin
2. Basic weight: 13-30g/m2
3. Working speed: 180-220m/min
4. Max. Capacity: 10t/d
5. Raw material: Wood, straw, waste paper
6. Main models: 1092, 1575, 1760, 1880, 2100, 2362, 2880mm





Technical specification



Model

XY1092

XY1575

XY1760

XY1880

XY2362

XY2640

XY2880

Designed speed (m/min)

250

250

250

250

250

250

250

Working speed (m/min)

130-200

130-200

130-200

130-200

130-200

130-20

130-200

Production quantity (g/m2)

13-38

13-38

13-38

13-38

13-38

13-38

13-38

Capacity (t/d)

3-4

5-6

6-7

7-8

8-10

10-12

12-15

Cylinder diameter (mm)

2500×1500

2500×2050

2500×2250

2500×2350

2500×2850

2500×3150

2500×3350

Screen cage diameter (mm)

1500

1500

1500

1500

1500

1500

1500

Main motor power (kw)

Y225M-6/30

Y250M-6/37

Y280M-6/45

Y280S-6/45

Y280M1-6/55

Y280M2-6/75

Y315-6/90

Take up power (kw)

Y90L-4/1.5

Y100L-4/2.2

Y100L-4/2.2

Y112M1-4/4

Y112M1-4/4

Y132S-4/5.5

Y132S-4/5.5

Main motor gange (mm)

1900

2400

2600

2700

3300

3700

3900







01. We are a manufacturer and we have import and export rights.

02. We produce wonderful environmental protection machines and solutions, pulp and paper making machines and solutions as well as tissue paper converting machinery and solutions,

03. Our main manufacturing facility which spans nearly 30,000m2.

04. We have achieved a total of 32 patents over the past few years.

05. Each year the output value of our products can reach up to 150 million RMB, to domestic and overseas.
06. We are in very close proximity to a very famous port city – Qingdao in northern China, and this location provides us with a plethora of logistics advantages, including: easy and cost effective transport by both air and sea, also.





 01. Detailed installation manual and maintenance guideline are provided with the equipment.

  02. Technical training and site-commissioning are available for you.

  03.Any equipment issue, we will stand by. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.





 01. How to buy your idea products?

  A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).

02. How to pay?

  A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

03. What is the delivery time?

  A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.

04. How to pack the products?

  A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.

05. How to keep your equipment from corrosion?

  A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard process.

06. How do you manufacture your equipment ?

  A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.

07. How to install after the equipment arriving destination?

  A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
