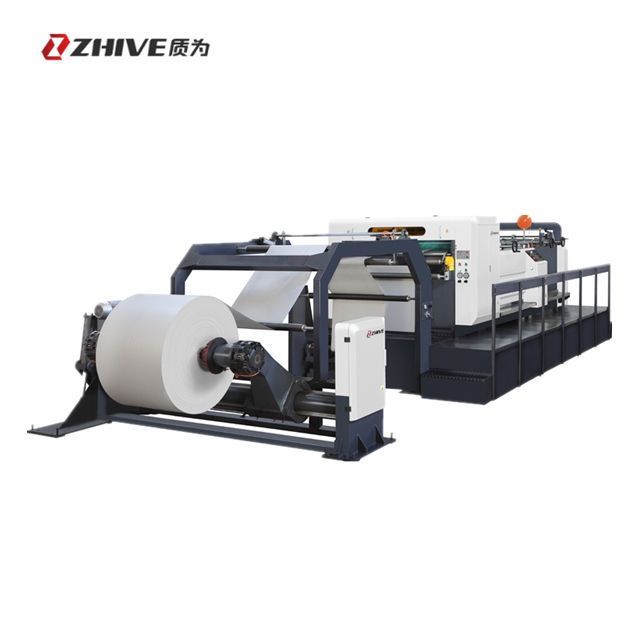

Paper roll to sheet cutting machine paper cutter

Click here to contact
Product details
Showroom location:not anymaximum. Working width:1400mm
security system:Infrared protection paper cutterProduction capacity:300m/min
brand:Zhiweispeed:300 times/minute
Certification:CEDimensions (length*width*height):9m*3.9m*2.35m
Local service locations:not anyWarranty:1 year
Core component warranty:1 yearSupply capacity:10 roll to sheet cutting machines per month
port:Ningbo or Shanghai, ChinaModel:Fully automatic
Applicable industries:manufacturing plantPost-warranty service:Video technical support, online support, spare parts, on-site maintenance and repair services
Main selling points:Easy to operateOutput paper:Kraft paper, corrugated paper, corrugated paper
Mechanical test report:not availableVoltage:AC 380v/220v*50HZ
weight:9T-12Tproduct name:Paper roll to sheet cutting machine paper cutter
After-sales service provided:Engineers can repair machinery overseas, video technical support, on-site installation, commissioning and training, on-site maintenance and repair services, online supportHealth status:new
Drive System:servo motorFunction:paper cutting
PLC brand:SiemensPlace of origin:Zhejiang, China
Marketing type:normal producttype:paper cutter
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramCutting length:400-1600mm
Packaging details:Standard wood packagingVideo outbound inspection:if
Core components:engineComputerized:Yes
Maximum cutting width:1800mm
Product Description

Product parameters

Model 1400-1 1700-1 1400-2 1700-2 1400-4 1700-4 HQD-1300
Reference weight of cutting paper (g/m2) 50-500 50-500 50-500 50-500 50-500 50-500 40-550
Applicable core diameter range (cm) 7-30 7-30 7-30 7-30 7-30 7-30 7-30
Maximum diameter of paper roll (mm) 1650 1650 1650 1650 1650 1650 1650
Maximum width of paper roll (mm) 1400 1700 1400 1700 1400 1700 1300
Total power (kW) twenty three 25 25 30 30 32 7
Cutting length (mm) 400-1600 400-1600 400-1600 400-1600 400-1600 400-1600 200-1450
Cutting accuracy (mm) +/- 0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.2
Maximum cutting speed (times/minute) 300 300 300 300 300 300 120
Maximum cutting speed (m/min) 300 300 300 300 300 300 ----
Atmospheric pressure (MPa) 0.8 0.8 0.8 0.8 0.8 0.8 ----
Supply voltage (V) 380/220 380/220 380/220 380/220 380/220 380/220 380/220
Total weight (kg) 10,000 11,000 11,000 13,000 15,000 16,000 5000
Dimensions (meters) 9*3.9*2.35 9*4.2*2.35 12*3.9*2.35 12*4.2*2.35 16*3.9*2.35 16*4.2*2.35 9.5*1.9*1.2
Machine video

https://www.youtube.com/watch?v=OSbmstI2PTo

Note: Please contact us for more models.
