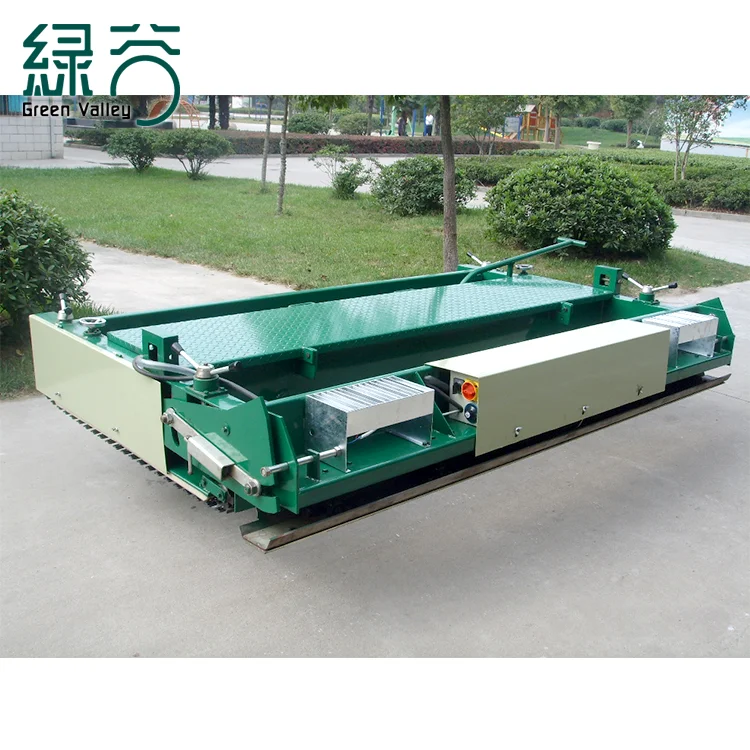

Sport Ground Rubber Granule Surface Rubber Paver Machine

Supplier: Hangzhou Green-Valley Rubber Products Co., Ltd.
Region: Zhejiang, China
Contact: Mr Benson Pang
Price: $3500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Rubber Paver:	TPJ-2.5 Paver Machine;	Payment Terms:	L/C,T/T;
Production Capacity:	400-800 sq.m./h;	Brand Name:	Green-Valley;
Applicable Industries:	Machinery Repair Shops,Farms,Retail;	Warranty:	1 year;
Keywords:	Paver Machine;	Max. Paving Thickness:	Adjust;
Showroom Location:	None;	Power(W):	11kw;
Model:	TPJ-2.5;	Certification:	ISO9001 CE;
Name:	Rubber Paver Machine;	Key words:	rubber paver machine;
Weight:	650-850kg;	Local Service Location:	None;
Place of Origin:	Zhejiang China;	UNIQUE SELLING POINT:	Low Maintenance Cost;
Packaging Detail:	Wooden case packing or according to customer's requires;	Port:	Shanghai/Ningbo;
Condition:	New;	Supply Ability:	10 Set/Sets per Month For Paver Machine;
After-sales Service Provided:	Online support;	Dimension(LWH):	30001800720mm;
Engine Brand:	FPT;	Product Name:	Sport Ground Rubber Granule Surface Rubber Paver Machine;
Moving Speed:	0.8-6m/min;	Temperature adjustment for heating board:	90-120 centigrade;
Usage:	Construction Pavement Leveling;	After Warranty Service:	Video technical support,Online support,Spare parts;

Product Description

Product Name	Best Athletic Field Paver Machine Paver Running Track Paver Machinery
Name	Paver machine
Model	TPJ-2.5	TPJ-2.0	TPJ-1.5
Actual Width	2800mm	2300mm	1800mm
Paving Width	2500mm	2000mm	1500mm
Moving Speed	0.8-6m/min	0.8-6m/min	0.8-6m/min
Paving Capability	800 sq.m./h	600 sq.m./h	400 sq.m./h
Power	11kw	11kw	11kw
Temperature adjustment for heating board	90-120 centigrade	90-120 centigrade	90-120 centigrade
Machine Weight	850kg	750kg	650kg
Dimension	30001800720mm	25001700720mm	20001700720mm
FOB Shanghai	USD 5000	USD 4900	USD 4800

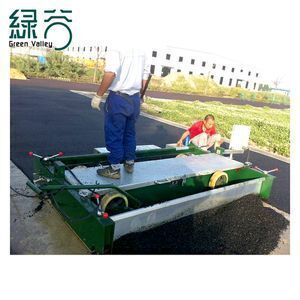

Structure & Function	1. Used for spreading, paving the bottom layer of plastic stadiums, like running track, rubberized playgrounds, etc.
	2. Framework: with a firm and stable welded H-type structure, and a rust-proof paint layer, it may accommodate any poor condition in the construction site.
	3. Front scratchboard: welded joint structure, the ground clearance is manually adjustable through a screw, which controls the thickness of the floor layer. The width may be adjusted through a limiting board.
	4. Driving device: the main driving system is a motor-driven caterpillar chain, with the speed smoothly controlled by a frequency converter, which is featured as stably and precisely moving ahead or back in motion. It may be equipped with different caterpillar belts for different bottoms.
	5. Walking Mechanism: the spreading machine may be manually moved or relocated through a walking mechanism consisting of an advanced ratchet lever system and lift.
	6. Screed: The screed has four functions, viz. the adjustment of height, angle, temperature, and vibration. The plastic cement material is vibrated, compacted and paves while passing through the screen.
TPJ-2.5-type paver machine is a technology with higher levels of plastic track laying machine, which employs advanced technology and Siemens frequency step-less speed regulation of advanced ratchet lever system, to increase their degree of automation built performance of the construction of venues able to satisfy the requirements of the quality of the playing field to achieve target, with high efficiency, low consumption, high-quality and easy operation, with long-term use of authentication, by the majority of users at home and abroad.
We equip the advanced ratchet lever system, which is simpler and durable than another hydraulic system, it won’t break down for the above-mentioned failure. If there is no electric power at the construction site, or you don’t want to provide and run the electric wire, the TPJ-ENG 2.5 is a good solution. The generator is fed gasoline and a steady output of electricity which provides the electric to the paver. Of course, The TPJ-ENG2.5 also can work with electricity.
