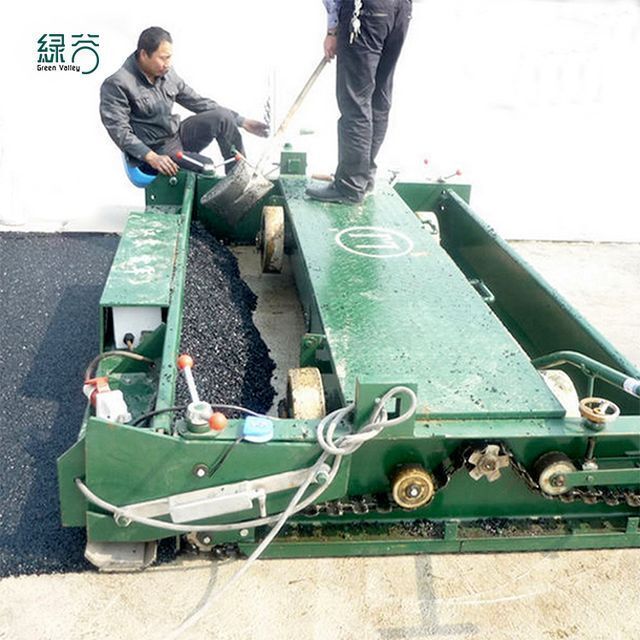

Supply Good Quality Rubber Paving Machine TPJ-2.5 /TPJ-1.5 /TPJ-2.0 Automatic Running Track Paver Machine For Sale

Product details
Warranty:1 Year;Video outgoing-inspection:Provided;
Temperature adjustment for heating board:90-120 centigrade;Production Capacity:400-800 sq.m./h;
Brand Name:Green-Valley;Port:Shanghai/Ningbo;
Key words:rubber paver machine;Model:TPJ-1.5/2.5;
Warranty of core components:5 years;Payment Terms:L/C,T/T;
Product Name:Sport Ground Rubber Granule Surface Rubber Paver Machine;Place of Origin:Zhejiang, China;
Showroom Location:None;Max. Paving Thickness:Adjust;
Moving Speed:0.8-6m/min;Hydraulic Pump Brand:HYDAC;
Hydraulic Valve Brand:HYDAC;Power:11kw;
Marketing Type:New Product 2020;Rubber Paver:TPJ-2.5 Paver Machine;
Usage:Construction Pavement Leveling;Core Components:Engine,Motor,Pressure vessel,Gear;
Applicable Industries:Machinery Repair Shops,Manufacturing Plant,Retail,Construction works ;UNIQUE SELLING POINT:Fully hydraulic system;
Name:Rubber Paver Machine;Supply Ability:10 Sets per Month For Paver Machine;
Keywords:Paver Machine;Machinery Test Report:Provided;
Weight:650 kg;Packaging Detail:Wooden case packing or according to customer's requires;
Dimension(L*W*H):3000*1800*720mm;Condition:New;
Engine Brand:YANMAR;
Specification
Product Name
Best Athletic Field Paver Machine Paver Running Track Paver Machinery
Name
Paver Machine For Rubber Sport Ground Granule Surface Paving Machine
Model
TPJ-2.5
TPJ-1.5
Actual Width
2500mm
1400mm
Paving Width
2500mm
1500mm
Moving Speed
0.8-6m/min
0.8-6m/min
Paving Capability
500 sq.m./h
350 sq.m./h
Power
8KW
4.05kw
Temperature adjustment
for
heating board
90-120 centigrade
90-120 centigrade
Machine Weight
800kg
450kg
Dimension
2500*1750*700mm
15500*1600*700mm

Structure
&
Function
1. Used for spreading, paving the bottom layer of plastic stadiums,
 like running track, rubberized playgrounds, etc.
2. Framework: with a firm and stable welded H-type structure,
and a rust-proof paint layer, it may accommodate any poor condition
in the construction site.
3. Front scratchboard: welded joint structure,
the ground clearance is manually adjustable through a screw,
 which controls the
thickness of the floor layer. The width may be adjusted through a limiting board.
4. Driving device: the main driving system is a motor-driven caterpillar chain,
with the speed smoothly controlled by a frequency
converter, which is featured as stably and precisely moving ahead or
back in motion.
 It may be equipped with different caterpillar
belts for different bottoms.
5. Walking Mechanism: the spreading machine may be manually moved or
relocated through a walking mechanism consisting of an
advanced ratchet lever system and lift.
6. Screed: The screed has four functions, viz. the adjustment of height, angle,
temperature, and vibration. The plastic cement
material is vibrated, compacted and paves while passing through the screen.
Operation use
1、install the seat rest
Insert the seat rest into the square hole of the longerons, and fixed it by the pins.
The seat rest can install on the any side of the paving machine.
2、install the electrical control panel
Warning! Install the electric cabinet is to cut off power supply.
Take out the electrical control panel from the transmission box, and fixed it on the seat rest by pins.
3、Operate the machine up and down
Open the power switch, and the power indicator light is light.
4、adjust the height of the pre-strike-off rail
According to the prospective thickness of the coating strip, Adjust setting screw to set the height of the
5、 adjust the screed height and angle
According to the prospective thickness of the coating strip, adjust the setting screw to set the height of the screed.
6、Adjust the temperatures of the screed
Hot surface During operation and for a short time after the heating board can reach a high temperature.Avoid direct contact with the surface.
7. movement in paving progress
Warning! Don’t put hands near it when machine operation!
8、shaking operation:
Turn on the shaking switch, the screed is shaking.
NO.
fault
Possible reasons
1
The whole machine can not work
1、The power not connected
2、The power is lack of phase
2
The tracks cannot move
1、The e-motor can not connects the power
2、The e-motor is broken
3、The transducer is not start
4、potentiometer is broken
5、The tracks was jammed
3
The machine body can not raise and down.
1、Power is not connected
2、The motor in oil tank is not work.
3、gear pump is broken
4、the electrical phase is fault
5、The pressure less than 0.8Mpa
6、electromagnetic directional valve is not working
4
The shaking board is not work
1、Power is not connected
2、The motor is not work.
3、Joint bearing is broken or jammed
5
Heating board can not work
1、Power is not connected
2、Power connection loose
3、Fuse on the heating panel is broken
4、temperature control device is broken
6
One side or parts of heating can not work
1、Power connection loose
2、The heating borad is short circuit
