China Best underground water detector 24 Months Warranty detector groundwater 3D Mapping Image Mobile Water Detector

Product details
Selling Units:Single item;Single package size:53X39X27 cm;
Resolution:0.5mV;Detection depth:0-100m;
Type:ADMT-100S;Brand Name:HB;
Package Type:portable underground water detector finder 0-100 m Details packing:alluminum suitcase, carton box;Package Preview:https://sc01.alicdn.com/kf/HTB1EOIWcoWF3KVjSZPh760clXXaJ.png_640x640.png;
Input impedance:≥10MΩ;Product name:Underground Water Detector;
Place of Origin:shanghai;Model Number:100S;
Power Consumption:230mA;Graph:2D/3D;
Display:Mobile Phone or tablet;Brand Name:HBNKH;
Single gross weight:10 KG;Weight:0.8KG;
volume:18.6*14.8*8cm;
Product Description

China Best underground water detector 24 Months Warranty detector groundwater  3D Mapping Image Mobile Water Detector

   3D imaging mobile phone water detector combines the advantages of a variety of electric exploration methods such as frequency sounding method to introduce a light, effcient, intelligent and convenient electric water detector with a detection depth of 200 meters.

   Our WATER DETECTOR is the world's first IOT probe, completely surpassing inported products, the world's first Internet of things only water detector. It is developed together with Guilin Technology Hydrogeological Investigation Institute. Bansed on over 46 years R&D design and exploration, under the leadship of 3 senior engineers, the water detector realize the technology that it can use the mobile phone or tablet PC to do complex data culculation, then the images will automatic form, store in the cloud, and you can communicate to experts advisors online with your images.

   Our WATER DETECTOR has obtained invention patant:201320054153.5, 201120214308.8, 201120567915.2, 201320303919.9.

In addition, if use our probes to measure, then you can wireless detect. It uses the mobile phone's Bluetooth to connect. And in the "M N" input, you can use traditonal MN cable lines or wireless sensor to measure.You don't need to cabling, just measure by walk and stop by wireless sensor, free of USB disk, detection button. Automatcally mapping by mobile phone, communicating with experts advisers online, uploading the data into cloud and store permanently.





24 Months Warranty detector groundwater  3D Mapping Image Mobile Water Detector:

  1. Exact distinction bewteen the types of targets mapping ADMT-200S underground water finder detector.
  2. Mechanical design that is modern and perfect, it will give you simply of carry the device without any need for multiple persons to use it.
  3. Depth from 0 to 200 meters protable mapping ADMT-200S underground water finder detector.
  4. The device works on primary battery with ability of the 12-volt being able to work for 48 hours, the battery can change to 6 servings AA batteries charger.
  5. Screen clarify the power level of the batteries.
  6. Most advances technology circuit and chip design portable mapping ADMT-200S underground water finder detector.
  7. Two years warrantly of protable mapping ADMT-200S underground water finder detector.

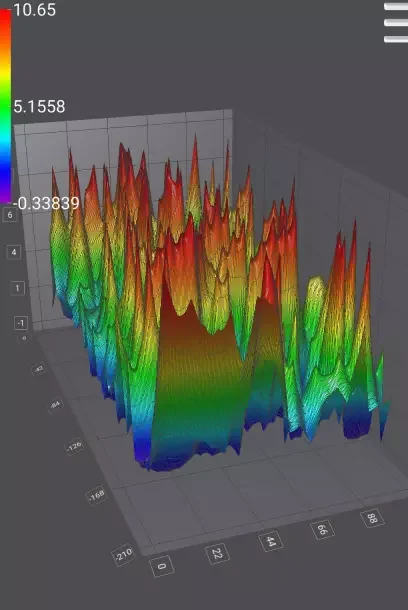

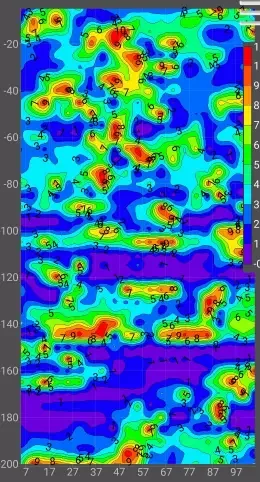

  8. The result images is 2D/3D to convenience viewing.

Related Products

Product feature

24 Months Warranty detector groundwater  3D Mapping Image Mobile Water Detector has some feature:

  1. Free of cabling: measuring by walk and stop, and can use wireless sensor probes to solve the problems.
  2. Free of USB disk: data is directly stored in the phone, or uploading to the clound for permanently store or download to the computer.
  3. Automatically forming the images: measuring by mobile phone and automatically froming the images after done.
  4. Online instant experts communication: you can directly communicate with our ouline specialist for advise by app, uploading photos in the scene, instant data, effect graphs and communicate.
  5. More reasonable data processing: strengthen the function of "field source modify", this project also obtained over 20 invention patents.
  6. Independent choice of display size: the display size and capability of mobile phone or tablet PC for operating is update to your own.
Product Parameters

Similar products at different depth of 24 Months Warranty detector groundwater  3D Mapping Image Mobile Water Detector depth:


parameterADMT-100SADMT-200SADMT-300SADMT-400SADMT-600SADMT-800SADMT-1200SADMT-2000SADMT-3000S
measurement range0-300mv
detect depth0-100m0-200m0-300m0-400m0-600m0-800m0-1200m0-2000m0-3000m
measuring mode20 frequency40 frequency60 frequency80 frequency
resolution2 mv1mv0.5mv0.2mv0.1mv0.01mv
A/D swith16 bit 1Msps24 bit 1Msps
imput impedance≥10MΩ≥80MΩ
power frequency supperssion>80 dB
data storagePhone storage space or clound space 20G
displaymobile phone or tablet PC (touching LCD 5-10.1")
connection modeBluetooth 4.0
mainframe powerDC7.4V 3400mAh lithium batteryDC7.4V 3400mAh lithium battery
mainframe power consump160mA230mA360mA450mA
operation temperature-10°C-+40°C-20°C-+60°C-40°C-+70°C
mainframe size18.6*14.8*8cm
mainframe weight0.8kg0.9kg

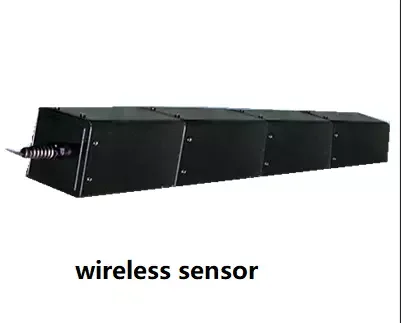

The wireless sensor probes can add for different depth:

parameter/modelADMT-C1 high frequencyADMT-1 low frequencyADMT-C2ADMT-C3ADMT-C4ADMT-C5ADMT-C6
detect depth0-300M0-500M0-600M0-800M0-1200M0-2000M0-3000M
frequency range30K-40HZ2K-5HZ30K-5HZ30K-1HZ30K-0.1HZ30K-0.01HZ30K-0.001HZ
resolution2MV1MV0.5MV0.2MV0.1MV
operating temperature-10°C-+40°C-20°C-+60°C-40°C-+70°C
mainframe size20.8*9.8*9.8CM41.6*9.8*9.8CM62.6*9.8*9.9CM80.2*9.8*9.8CM110*9.8*9.9CM130.8*9.8*9.9CM
mainframe weight2.6KG2.8KG5.4KG8.2KG10KG12.8KG15.6KG







Company Information

   Shanghai Huange Investment Co., Ltd. integrate and involve R&D, manufacturing and sales of geophysical propecting instruments, geological instruments and main products geologically instrument,resistivity meter, magnetometer, mine detector, water detector,portable drilling rig, mineral ore analyzer, tunner settlement monitoring equipment, etc.

   Shanghai Huange Investment Co., Ltd. Ltd is developed from Shanghai Huanwen Science Insrument Co., Ltd. founded in the year 2001, which is a high-tech limited joint veture integrated and involved the R&D, manufavturing and sales and honored as "New Special Expertise" enterprise by Shanghai govermment. Under the leading of senior engineers , Shanghai Aidu Energy Technology set up one research team nearly 30 people and gained tens of invention patents, National Technology Innovation Fund, and honor of High and New Technology Achievement Transformation Project.

   Shanghai Huange Investment Co., Ltd. has long history of research and also take charge of many research programme from Institute of Geology and Geophysics.CAS with great achievements.







Packaging & Shipping



Item will be sent nomarlly within 3-5 work days after your payment cleared, and it may delay for somecases, like weekend, local holidays or other special situation, your understanding is appreciate.



Exhibition







Shanghai Huange Investment Co., Ltd. participate in various exhibitions in different countries every year.



FAQ

1.Delivery time: we need 3-5 working days to prepare your order according to our numberous orders every day. And it may delay for somecases, like weekend, local holidays or other special situation, your understanding is appreciate.

2.Operation: it's easy to operate of instument, we will give you the operation video and send detail operation manul by email.

3.Warranty for the detector: Two years,we can provide you life long technical support.
