air ventilator

Supplier: Jinan Shuangyi Environment Engineering Co., Ltd.
Region: Shandong, China
Contact: Mr Tony Wang
Price: $180.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Air Volume:	600-23900 m3/h;	Mounting:	Free Standing;
Packaging Detail:	export packing,plywood package;	Brand Name:	shuangyi;
Voltage:	380V,50HZ;	Certification:	ISO9001/ISO14001;
Warranty:	1 year;	Delivery Detail:	Shipped in 0 days after payment;
Power:	0.025-5.5;	Blade Material:	Stainless steel ,FRP;
Port:	Qingdao;	type:	axial;
After-sales Service Provided:	Video technical support;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Type:	Radial Fan;	Supply Ability:	500 Set/Sets per Month;
Place of Origin:	Shandong China;

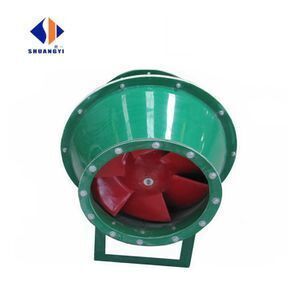

The introduction of Mixed flow air ventilator,ventilation fan,

Brief introduction

It selects advanced three-dimensional flow of pattern layout, and has axial-flow fans big current capacity and centrifugal fans high wind pressure characteristic simultaneously. It is small volume, high efficiency, easy to install, saves space, and suitable for pipeline compression ventilates in each kind of situation.

There is steel and FRP two materials. Adopt advanced three flow model design , have axle flow high characteristic of wind pressure of large flow and at odds with the community or the leadership air blower of air blower at the same time, small , with high efficiency, installation is convenient, save the space, suitable for the pipeline under various kinds of situations and pressurize to ventilate.

Technical parameter form

machine Number	air flow capacity (m³/h)	static pressure(Pa)	Power(kW)
2F	600-725	65-45	0.025
2.5F	1000-1425	120-80	0.09
3F	1750-2450	175-100	0.18
3.5S	1000-1875	150-100	0.37
3.5F	2000-2625	300-250	0.37
4S	2000-2670	200-145	0.37
4F	3000-4490	400-260	0.75
4.5S	3000-4170	240-180	0.37
4.5F	4000-6000	500-350	1.1
5S	4000-5500	300-200	0.75
5F	5000-7900	700-450	2.2
6S	5000-9990	480-290	1.5
6F	8000-13900	1000-600	5.5
7S	8000-14900	625-400	3.0
8S	12000-23900	860-440	5.5
